        Home> GlossMeter> KSJ> KSJ MG6-SM Gloss meter

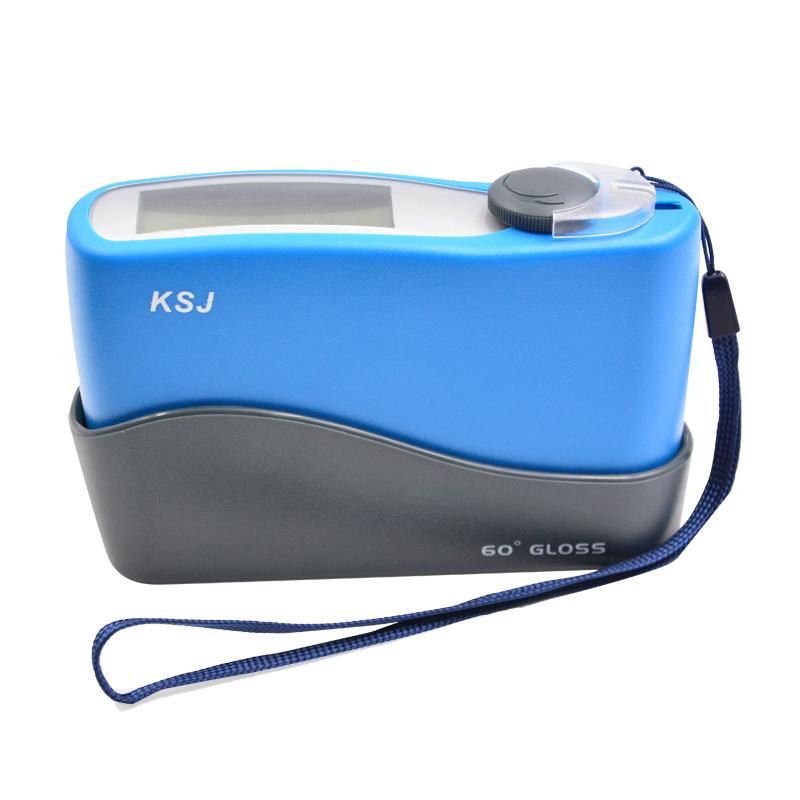

        KSJ MG6-SM Gloss meter

        KSJ MG6-SM Portable Gloss meter for metal, wide range, self-calibrated with Bluetooth

        Metal special wide range Glossiness Meter, 60 degrees single angle, Reading Range 0.0~999, widely used in mirror polishing, coating field.

        Brand
        SKU: NB002171
        China KSJ
        Stock
        Loading…
        Price
        Please contact customer service
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          KSJLOGO

          KSJ shopSE

          Information
          Datasheet RFQ Contract Video Catalog Manual
          What else did others buy
          Genuinegoods

          • KSJ MG6-SM Gloss meterOverview

          • Specifications
          • Comments
          • FAQs
          MG6-SM
          Gloss meter
          • KSJ MG6-SM Portable Gloss meter for metal, wide range, self-calibrated with Bluetooth
          • KSJ MG6-SM Portable Gloss meter for metal, wide range, self-calibrated with Bluetooth Figure 1
          • KSJ MG6-SM Portable Gloss meter for metal, wide range, self-calibrated with Bluetooth Figure 2
          Metal special wide range Glossiness Meter, 60 degrees single angle, Reading Range 0.0~999, widely used in mirror polishing, coating field.

          product description

          ★Single AA size (AA) alkaline batteries or rechargeable batteries are equally easy to use.

          ★Low energy consumption: A single AA alkaline battery can last for more than 58 hours.

          ★The whole set of equipment is designed in one piece, it can be used immediately when it is turned on, and it is easy to carry.

          ★Specially equipped with a protective cover for the adjustment button, the operation is more assured.

          ★Anti-scratch coating on the test port to prevent scratching the measured object.

          ★Small size, beautiful appearance, stable performance, easy to use!

          Application

          1. It is suitable for gloss measurement of various metal and non-metal materials and their coated surfaces.

          2. Widely used in mirror polishing and coating fields.

          structure diagram

          KSJ MG6-SM portable gloss meter front structure diagram

          Back structure diagram of KSJ MG6-SM portable gloss meter

          Structural diagram of KSJ MG6-SM portable gloss meter base

          Details of the battery compartment of KSJ MG6-SM Portable Gloss Meter

          Standards

          MG6-SM Portable Gloss Meter complies with the requirements of the secondary working machine in the metrological verification regulations of ISO2813, GB9754, ASTM D2457, ASTM D523, GB/T13891, GB7706, GB8807, JJG696-2002 "Mirror Gloss Meter and Gloss Board".

          plan

          KSJ MG6-SM Portable Gloss Meter Package Accessories

          KSJ MG6-SM Portable Gloss Meter Details

          KSJ MG6-SM Portable Gloss Meter Test Chart

          Image of KSJ MG6-SM Portable Gloss Meter

          KSJ MG6-SM Portable Gloss Meter Test Diagram

          VS

          KSJ MG6-SM Gloss meterSpecifications

          LIST VALUE
          Geometry 60°
          Measurement range 0~120GU；121~999GU
          Measuring Areas 10*20mm
          Error of indication ±2;±1.5％GU
          Division Value 1GU
          Standards ISO2813、GB9754、ASTM D2457、ASTM D523、GB/T13891、GB7706、GB8807、JJG696-2002
          Dimensions 123*38*65mm
          Weight 300g
          Power 1.2~ 1.5 AA (No. 5) rechargeable or alkalinity battery
          Measurement port size 14*30mm
          Reading range 0~999GU
          Zero Error 1GU
          Stability 1GU
          Operating Time Depending on the type of battery, the continuous use time of the alkalinity battery is > 58h

          KSJ MG6-SM Gloss meter Packing list

          Gloss meter X1, base X1 with adjustment plate, verification work plate X1, manual, certificate of conformity, warranty card

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

          FAQ

          [Q]
          What are the measurement parameters?
          [A]
          The main parameters include Glossiness units (such as GU or GS), surface reflectance percentage, and angle of reflection beam of light.
          [Q]
          How does the glossmeter work?
          [A]
          Glossiness is determined by illuminating the sample surface with a standardized beam of light and measuring the intensity and angle of the reflection beam of light.
          [Q]
          Is it possible to measure the glossmeter used for aluminum paint on metal surfaces?
          [A]
          If it is metal spray paint, it is not as bright as metal. You can use something within 200GU. If you want to measure metal, you can.
          [Q]
          Measure metal luminance, single angle, can I choose this glossmeter?
          [A]
          Yes, this one is a 60-degree glossmeter, which is dedicated to metal.
          [Q]
          Does the glossmeter need to be calibrated frequently?
          [A]
          Generally, it is recommended to re-calibrate after a period of use or a long boot time to ensure the accuracy of the next measurement.
