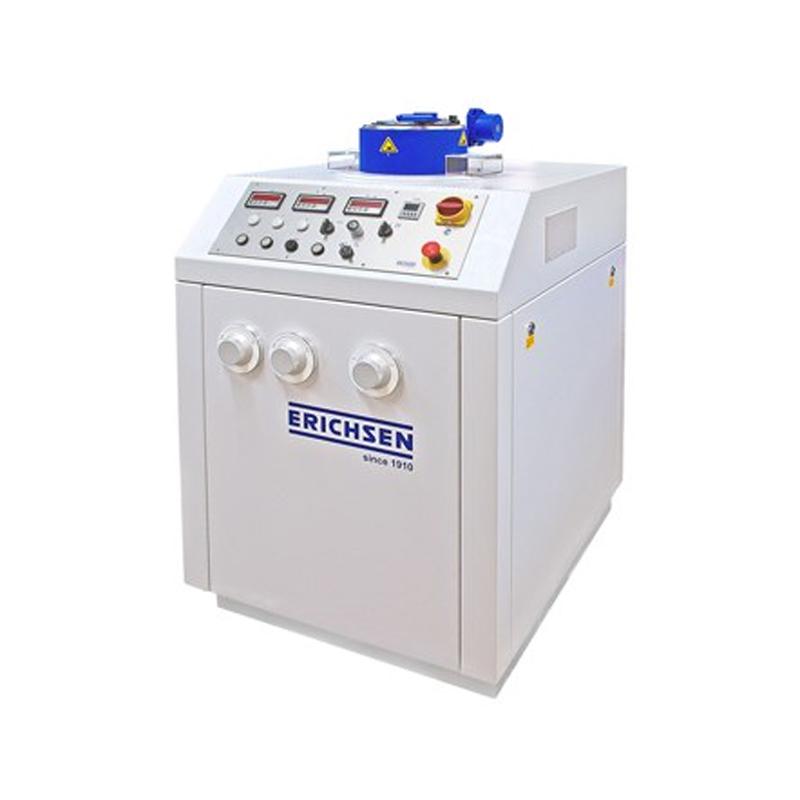

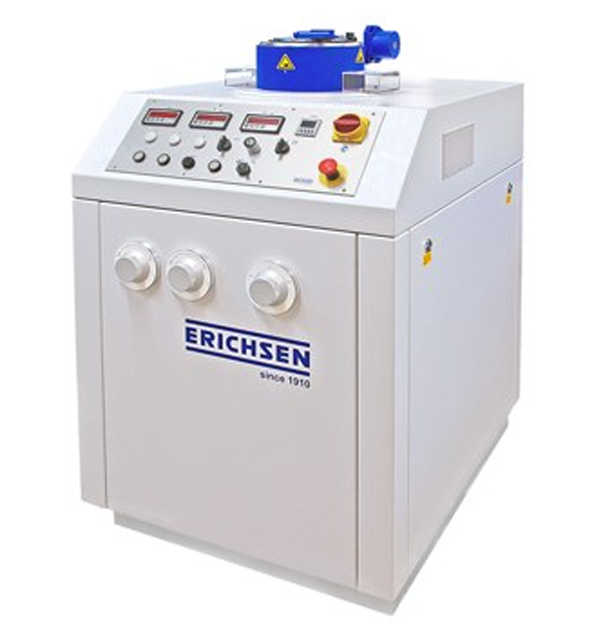

Erichsen242 - Basic, Electric Cupping Tester

Introduction

Fully automated deep tensile and deep Tensile Testing Machines for testing the ductility of coated ferrous and non-ferrous metals (e.g. coil coatings, lacquers, plastic coatings or galvanized materials). The testing machine is electro-hydraulically driven and has a maximum tensile force of 200 kN. The testing machine is equipped with a digital display for reading the clamping force of the drawing and paper as well as the stretch punch path. In the production of thermoformed products, the material is deformed in all three coordinate planes. In order to avoid subsequent corrosion damage, the surface coating must not be damaged. The 242-Basic model is particularly suitable for sheet metal thicknesses ranging from 0.2 mm to 4.0 mm, which are subject to inspection and verification as part of quality assurance.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
