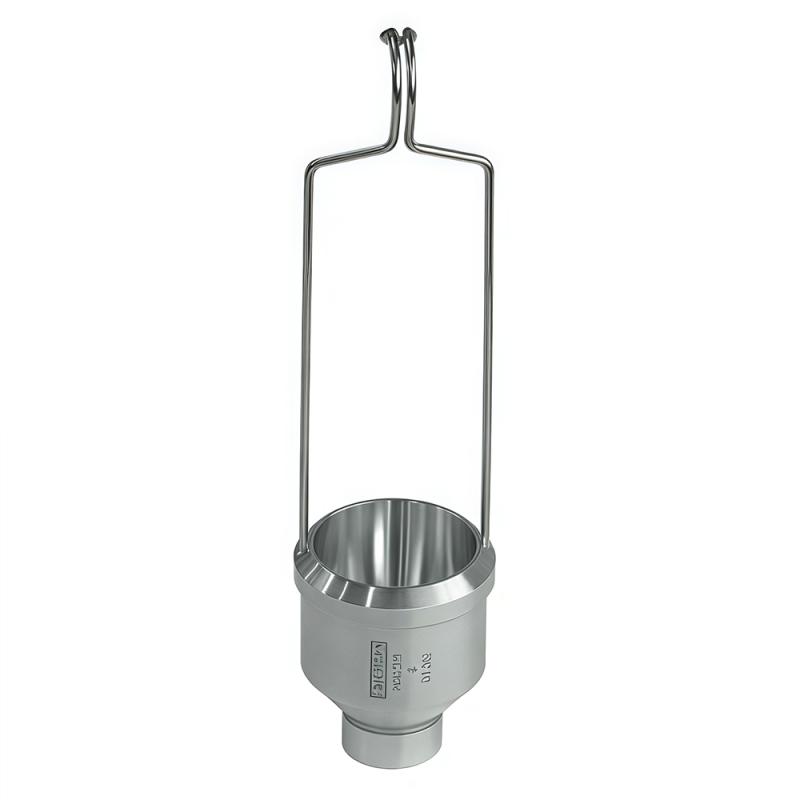

ERICHSEN321-4mm Viscosity Cup
Viscosity range 10~5000cSt, flow hole diameter 4mm, cup body material aluminum, Applicable standard DIN 53211.
Erichsen
ERICHSEN321-4mm
-
Rhopoint RL-A-FC-DIN8 DIN Flow Cup (8mm) - DIN 53211
$ 385.00 -
TQC VF2025 Viscosity Cup filter, stainless steel 5mm
$ 145.00 -
CHINA TR 1001/4 Zahn Cup No. 4 Portable Viscosity Cup 4.26mm
$ 111.00 -
Rhopoint RL-A-FC-AFNOR/4 AFNOR Flow Cup (4mm) NF T30-014
$ 406.00 -
YONGLIDA QNB-ISO-4 ISO Flow Cup (including bracket) viscosity range: 34~ 135cst
$ 164.00
Introduction
Immersion cups are used to quickly determine the viscosity of various liquid materials, such as: Paints, greases, food, etc. Practitioners appreciate their merits. The viscosity of a substance is the amount of time it takes for a measured amount (100 cc) to flow from a beaker through a fixed-diameter nozzle. This flow time is determined by a stopwatch. DIN immersion discharge cup, based on DIN 53 211.
Ordering Information:
Model | standard | Nozzle diameter | Measuring range (mm/s) |
243/I (phenolic) | Quite DIN53211 standard | 2mm 4mm 6mm 8mm | 22-55 90-682 300-1200 500-2000 243/II |
243/I (Aluminum anodizing) | Quite DIN53211 standard | 2mm 6mm 8mm | 22-55 300-1200 500-2000 |
243/II/4 (Aluminum anodizing) | DIN53211 SUV37110 SIS184115 | 4mm | 90-682 |
243/III (Aluminum anodizing) | ASTMD1200 | No.2 (2.5mm) No.3 (3.4mm) No. 4 (4.1mm) No. 5 (5.2mm) | 32-118 31-215 59-367 217-1185 |
243/VII (Aluminum anodizing) | ISO 2431 DIN EN ISO 2431 | 3mm 4mm 5mm 6mm | 8-42 34-135 91-325 188-684 |
Erichsen ERICHSEN321-4mm Viscosity CupSpecifications
| LIST | VALUE |
|---|---|
| Viscosity range | 10~5000cSt |
| flow hole diameter | 4mm |
| Cup body material | aluminum |
| Applicable standard | DIN 53211 |
Erichsen ERICHSEN321-4mm Viscosity Cup Packing list
Viscosity cup X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
