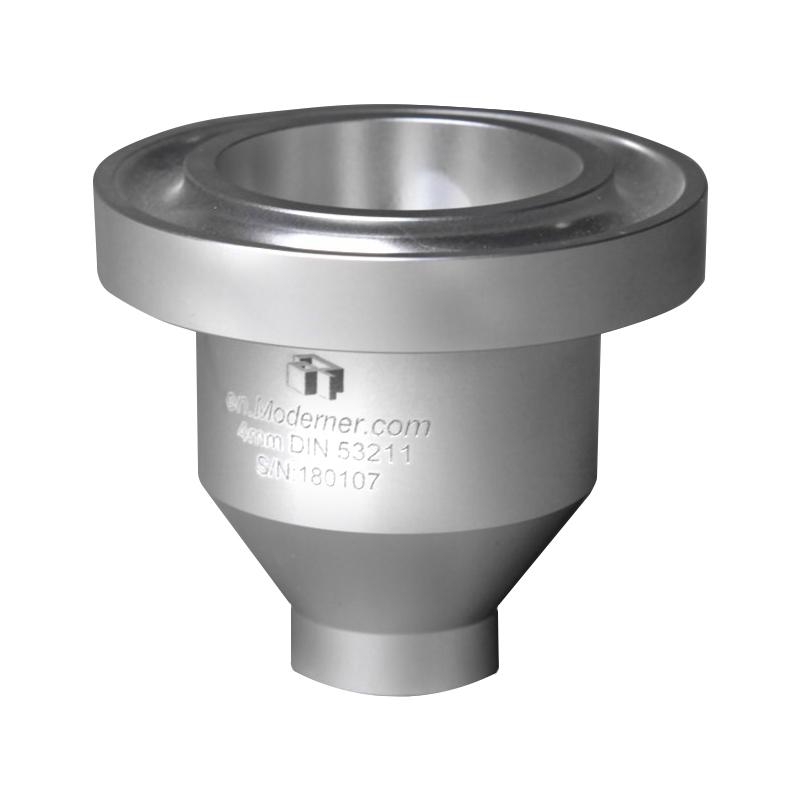

MODERNER DIN-6 Viscosity Cup

Viscosity range 130~700cSt, outflow time 20~100s, flow hole diameter 4mm, capacity 100ml, cup body material aluminum, filter material stainless steel, applicable to standard DIN 53211.

Brand

SKU: NB021796

Moderner

Model

DIN-6
DIN-4

Price

Please contact customer service

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

Moderner shopSE

Information

Datasheet RFQ Contract Manual

What else did others buy

YONGLIDA QNB-3 No. Outflow Viscosity Cup 3mm aperture Measurement range 7~ 14cSt

$ 142.00
QNB ISO Flow Cup set YONGLIDA contains 3, 4 and 6 Flow Cups

$ 231.00
TQC VF2015 stainless steel Din cup, filter diameter 4mm

$ 727.00
JINGKELIAN QNB No. 6 ISO Flow Cup outflow time 30s ≤ t ≤ 100s diameter 6mm

$ 139.00
Rhopoint RL-A-FC-PTA6/B5 BS Flow Cup (4.76mm) BS 3900

$ 377.00

Genuinegoods

Moderner DIN-6 DIN CupOverview
Specifications
Comments
FAQs

DIN-6

DIN Cup

Viscosity range 130~700cSt, outflow time 20~100s, flow hole diameter 4mm, capacity 100ml, cup body material aluminum, filter material stainless steel, applicable to standard DIN 53211.

The DIN cup is designed and manufactured according to the German standard DIN 53211. It is often used to measure the viscosity of ink, paint, paint, etc., and it is more convenient to use. It consists of a good aluminum cup with a capacity of about 100ml and a small stainless steel leak nozzle. The viscosity of the test solution is evaluated by measuring the time required for the test solution to flow out of the small hole of the leak nozzle when the cup is filled. It should be noted that the DIN 53211 standard only stipulates the outFlow Cup with a leak diameter of 4mm (cup No. 4), and the outFlow Cups with other apertures are based on DIN 53211 (such as cup No. 6).

Model Selection

cup number	Cup 4	Cup 6
Cup volume	100±1ml
Leak aperture	4±0.02mm	6±0.02mm
Measuring range	96~683cSt	130~700cSt
outflow time	25~150s	20~100s
Cup material	Anodized aluminum alloy
Spout material	Stainless steel

Moderner DIN-6 DIN CupSpecifications

LIST	VALUE
Viscosity range	130~700cSt
outflow time	20~100s
Flow hole diameter	4mm
Capacity	100ml
Cup body material	aluminum
Filter material	stainless steel
Applicable standard	DIN 53211

Moderner DIN-6 DIN Cup Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

I need to measure the viscosity of inks, which model of DIN cup should I choose?

[A]

Recommended DIN-6 model of No. 6 cup. Because the Measurement range of No. 6 cup is 130~ 700cSt, the outflow time is 20~ 100 seconds, which is just suitable for the test of medium viscosity liquids such as inks. The operation time is moderate and the measurement results are accurate.

[Q]

Our laboratory mainly measures the viscosity of coatings. Is it appropriate to use a DIN cup?

[A]

Suitable! DIN cups are specially designed for liquid viscosity testing such as coatings, inks, paints, etc. MODERNER's DIN-6 is durable and easy to clean with stainless steel leaks and aluminum cups, which can meet the daily testing needs of the laboratory for paint viscosity.

[Q]

What is the difference between a No. 4 cup and a No. 6 cup, and how should I choose?

[A]

The main difference is in the leakage nozzle aperture and Measurement range. No. 4 cup aperture 4mm, suitable for lower viscosity liquids; No. 6 cup aperture 6mm, Measurement range 130~ 700cSt, more suitable for medium viscosity inks paint. If you measure the sample viscosity above 130cSt, choose No. 6 cup is more suitable, the outflow time is 20~ 100 seconds, and the measurement efficiency is higher.

[Q]

Do you have this DIN6 portable?

[A]

Modern ones are not available, Miscellaneous brands are.

[Q]

Modern environment DIN-6 viscosity cup is based on what standard?

[A]

Hello, this DIN-6 viscosity cup is made according to DIN53211 standard.
