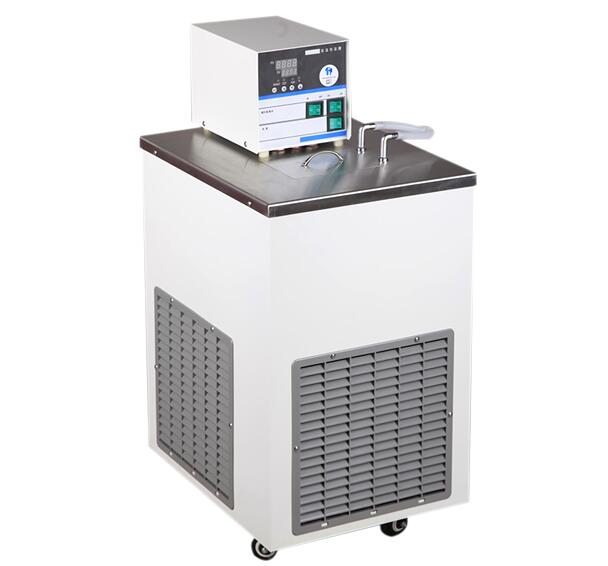

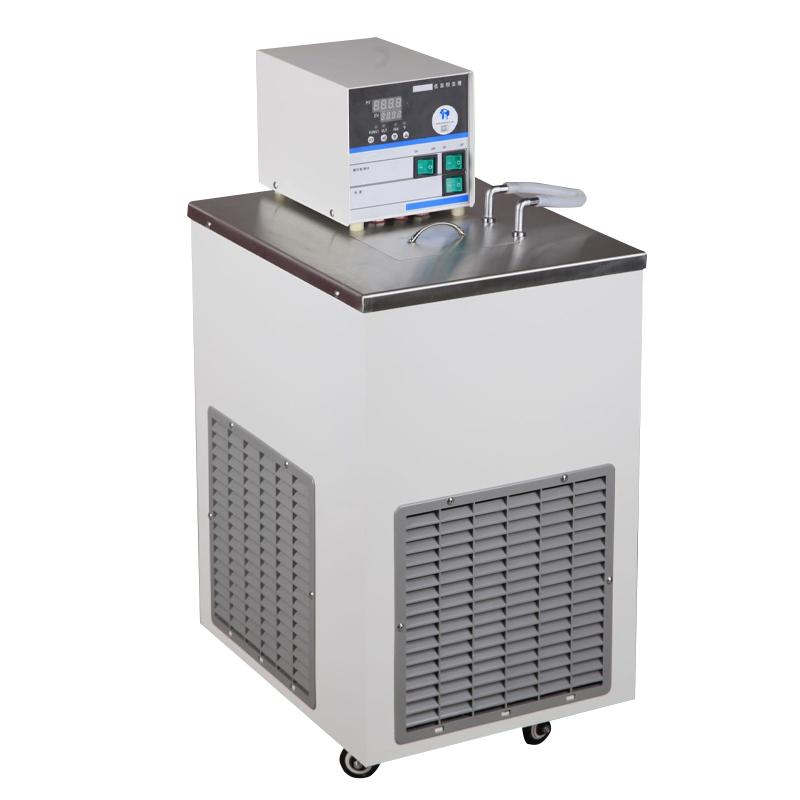

MODERNER DC0530 Thermostatic Bath -5~ 100 ℃

Introduction

XD-26-DC series low-temperature Constant Temperature Circulating Bath (low-temperature constant temperature bath) adopts new high-performance single-chip microcomputer control, self-tuning PID adjustment, imported temperature sensor temperature measurement, high temperature control accuracy and small fluctuation; adopts high-quality refrigeration compressor (Some models are fully imported brand compressors or compressor units), with high refrigeration efficiency, fast cooling, and low noise; they use a good fully sealed mixing motor, the lubricating grease is not easy to volatilize, and they have low noise and long life. The DC series uses a large-screen backlit LCD display, with all parameters clear, beautiful and stylish.

The low-temperature constant-temperature circulating bath (low-temperature constant temperature bath) can not only conduct constant temperature tests directly in the Water Tank, but also use the external circulation function to guide the controlled constant-temperature liquid in the bath to other equipment through hoses connected to other equipment.

Application

Thermometer calibration, supporting viscometer, density meter, surface tensIon Meter, polarimeter, rotary evaporator, Spectrophotometer , etc.

main feature

1. Adopt high-performance single-chip microcomputer control, PID adjustment, and self-tuning control technology, with high temperature control accuracy and short stabilization time;

2. The liquid level protection device can prevent various failures caused by empty heating of the heating tube;

3. The upper limit over-temperature alarm function can be set by yourself. If it exceeds the range, it will alarm immediately;

4. High-performance stirring motor makes temperature fluctuations more uniform, low noise, low heat, fully enclosed, and long life;

5. Large screen backlit LCD, all parameters are clear and beautiful;

6. The circulation pump can lead the constant-temperature liquid in the tank to establish a second constant-temperature field;

7. The inner tank and countertop are made of high-quality stainless steel, which is corrosion-resistant and easy to clean;

8. The DC series is an ordinary low-temperature constant temperature bath with a temperature control accuracy of 0.1℃ and a fluctuation of 0.05℃. The temperature range is from -80℃ to 100℃ and the volume is 6 liters, 15 liters, 20 liters, and 30 liters. Using large-screen backlit LCD, all parameters are clear and clear.

DC low temperature thermostatic bath series parameter comparison

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
