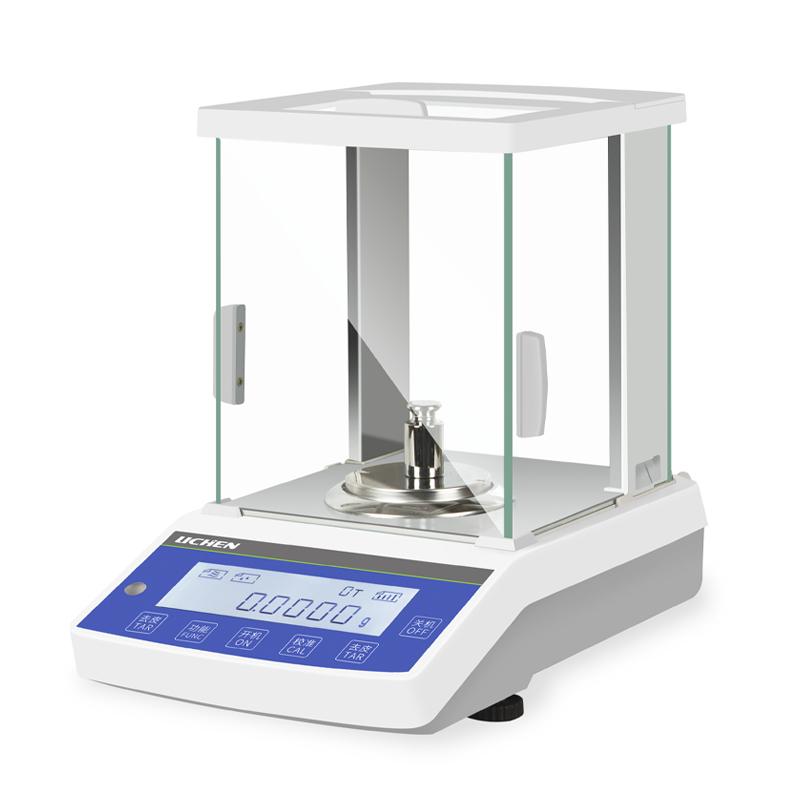

LICHEN FA324C Electronic Analytical Balance inner calibration 320g/0.0001g
Accuracy class I, Weighing range 0-320g, Graduation 0.1mg, minimum weighing value 0.5mg, Tare Range 0-320g, linear error ± 0.0005g, Repeatability Error ± 0.0002g
LICHEN
FA324C
-
Tianma FA2204X 1/10,000th Electronic Balance 2 second stable reading, externally calibrated
$ 515.00 -
Tianma FA4004X Electronic Balance external calibrated
$ 1101.00 -
SDPTOP YP202N Electronic Balance 1% Balance 200g
$ 226.00 -
SDPTOP YP2001N Electronic Balance 2000g/0.1g
$ 162.00 -
HUAZHI HD-B3000 Desktop Electronic Balance Weighing up to 3000g accuracy 0.1g
$ 168.00
FA series Electronic Analytical Balances are equipped with large LCD screens and high-precision electromagnetic balance sensors to ensure the stability and reliability of each balance. It has the functions of automatic fault detection, overload protection, unit conversion, percentage, hereinafter referred to as "" and so on. Built-in RS232C interface, which can be connected to computers, printers and other equipment, which is convenient for data recording and processing. This product is widely used in scientific research, education, metallurgy and other industries.
Features
◇ High-definition large LCD screen, the display is clear and clear
◇ Automatic fault detection and overload protection
◇ Unit conversion, counting, percentage
◇ The function of weighing large volumes can be weighed
◇ Automatic external weight calibration
◇ FA-C has fully automatic built-in weight calibration function
◇ A variety of environmental horizontal and display modes can be adjusted, so that the balance is less affected in weighing
◇ Built-in RS232C interface, which can be connected to computers, printers and other equipment, which is convenient for data recording and processing
Serial models
| Model | Weighing range | Weight specifications | Automatic calibration |
| FA124 | 0-120g | 100g | not |
| FA124C | 0-120g | / | Yes |
| FA224 | 0-220g | 200g | not |
| FA224C | 0-220g | / | Yes |
| FA324 | 0-320g | 200g | not |
| FA324C | 0-320g | / | Yes |
| Other parameters | |||
| Enter the power supply | AC220V 50Hz/DC5V 2.5A | ||
| power | 15W | ||
| How it is displayed | LCD screen display | ||
| Accuracy level | Level I | ||
| Graduation value | 0.1mg | ||
| Minimum weight | 0.5mg | ||
| Linearity error | ±0.0005g | ||
| Repeatability Error | ±0.0002g | ||
| Settling time(s) | ≤4s | ||
| Weighing pan specifications | Ø80mm | ||
| Weighing unit | g/ct/oz/mg | ||
| Draft shield | Yes | ||
| RS232 interface | Yes | ||
LICHEN FA324C Electronic analytical balanceSpecifications
| LIST | VALUE |
|---|---|
| Input power | AC220V 50Hz/DC5V 2.5A |
| Power W | 15W |
| display | LCD display |
| Accuracy level | Level I |
| Weighing range | 0~320g |
| Graduation | 0.1mg |
| Minimum weighing value | 0.5mg |
| Tare Range | 0-320g |
| linearity error | ±0.0005g |
| Repeatability Error | ±0.0002g |
| Settling time | ≤4s |
| Pan Size | Ø80mm |
| Weighing Unit | g/ct/oz/mg |
| Weight specification | / |
| Auto calibration function | Yes. |
| Wind Shield | Yes. |
| RS232 interface | Yes. |
| Net Weight Kg | 5.5kg |
| Product size (L × W × H mm) | 300×210×320mm |
| Settling time | ≤4s |
LICHEN FA324C Electronic analytical balance Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
