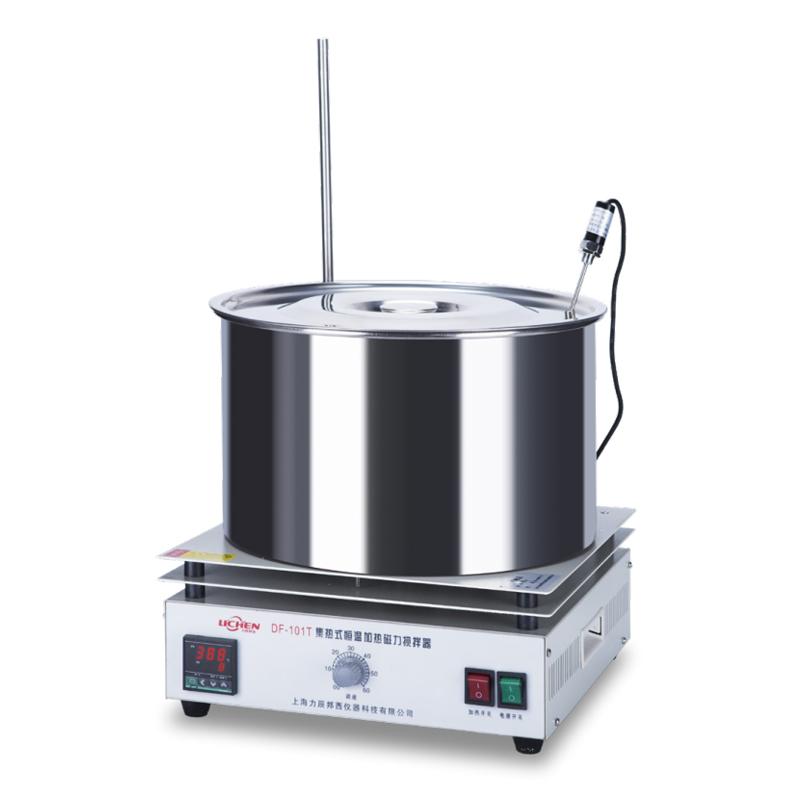

LICHEN DF-101S (Deepened) Thermal magneticstirrer 400 ℃/2L
Max. stirring Capacity 2000mL, stirring speed 0~2600rpm, Temperature range RT +~ 400 ℃, working plate size Φ220 * 110mm
LICHEN
DF-101S (Deepened)
-
CHIJIU 85-1 Magnetic Stirrer Single Stir Capacity 3000ml
$ 143.00 -
CHIJIU/Meiyingpu 08-2G thermostatic Magnetic Stirrer 5L/150 ℃ with timing
$ 289.00 -
CHIJIU 94-2 Timing thermostatic Magnetic Stirrer Mechanical timing, heating type 150 ℃/3L
$ 200.00 -
RONGHUA 78-2 Bidirectional Magnetic Heating Stirrer 150W/Bidirectional Stir
$ 120.00 -
YIHENG IT-08C5 Magnetic Stirrer (disc type)
$ 320.00
Product Description
DF-101 series collector constant temperature heating magnetic stirrer adopts collector heating method, the heated container is completely in strong thermal radiation, the heating speed is three times that of other similar plane stirrers, the collector pot is stamped with good stainless steel, combined with special heating tube and high temperature seal, can add water (Water Bath), oil (Oil Bath), and dry boiling.
Features
◇ Adopt the collector heating method, the heating speed is fast, the temperature is uniform, and the efficiency is high
◇ The main components are made of excellent materials, DC high-power motor, large stirring force and low noise
◇ The magnet is made of "NdFeB" permanent magnet with stronger magnetic force as the rotor to ensure sufficient suction and torque
◇ The pot body is made of good stainless steel stamping, and it is combined with a special heating tube seal
◇ Used for Water Bath, Oil Bath and dry boiling, with a variety of functional options
◇ The heat sink is used to isolate the heating part and the electrical box, and the high temperature does not affect the performance of the whole machine
Series selection
| Model | Maximum stirring volume | Inside the pot | Depth of the pot | Speed range | Temperature control method | Temperature control range |
| DF-101S (Standard) | 2000ml | 220 | 90 | 0-2600r/min | Intelligent temperature control | Room temperature -400 °C |
| DF-101S(Deep) | 2000ml | 220 | 110 | |||
| DF-101S (Split) | 2000ml | 220 | 90 | |||
| DF-101Z | 800ml | 150 | 100 | |||
| DF-101T-5 | 5000ml | 250 | 130 | |||
| DF-101T-10 | 10000ml | 300 | 195 | |||
| DF-101T-15 | 15000ml | 345 | 220 |
LICHEN DF-101S (Deepened) Thermal magneticstirrerSpecifications
| LIST | VALUE |
|---|---|
| Max. Capacity of stirring | 2000mL |
| Stirring speed | 0~2600rpm |
| Temperature range | RT+~400°C |
| Pan size | Ф220*110mm |
| Dimensions | 250*235*250mm |
| Working Voltage | 220V 50Hz |
LICHEN DF-101S (Deepened) Thermal magneticstirrer Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
