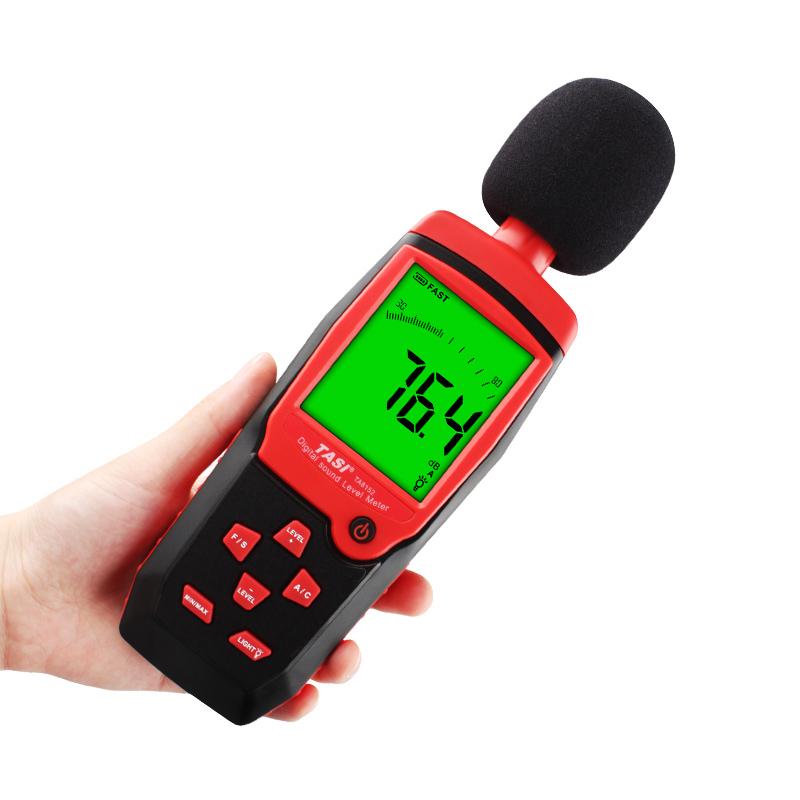

TASI /TASI TA8152 Digital Sound Level Meter
TASI TA8152 Digital Sound Level Meter has two measurement modes of environment noise and mechanical noise, and has multiple gears for conversion measurement. The measurement range of TA8152 is 30~130dBA, 35~ 130dBC.
TASI
TA8152
-
AMITTARI AS-156B Multifunctional Sound Level Meter
$ 270.00 -
DUBAN DB30-6228ILEQ Pulse Integrator Sound Level Meter, Pulse + Integrator + Statistical Level 1 Sound Level Meter
$ 1041.00 -
DUBAN DB30-6226ILEQ Pulse Integrator Sound Level Meter, Pulse + Integrator, 2-Stage Divider
$ 556.00 -
DUBAN DB22-600DOSE Personal Dose Sound Level Meter
$ 434.00 -
Hypertherm SJ-P Multifunctional Sound Level Meter, Noise Meter
$ 223.00
Brief introduction
A sound level meter, also known as a noise meter, is the most basic instrument used in noise measurement. A sound level meter is generally composed of a condenser microphone, a preamplifier, an attenuator, an amplifier, a frequency-weighted network, and a RMS indicatIon Meter. The working principle of the sound level meter is that the microphone converts the sound into an electrical signal, and then the impedance is converted by the preamplifier to match the microphone with the attenuator. The amplifier adds the output signal to the weighting network, weighs the frequency of the signal (or an external filter), and then amplifies the signal to a certain amplitude through the attenuator and the amplifier, and finally displays the corresponding value on the LCD after being processed by the digital circuit processor.
Features
CE certified qualified products
Measure ambient noise
The screen has a backlight function, and in a low-light environment, the screen backlight can be turned on for easy reading of values
Measuring range: 30~130dB
Accuracy: ±1.5dB
Resolution: 0.1dB
TASI TA8152 Digital Sound Level MeterSpecifications
| LIST | VALUE |
|---|---|
| Measurement Range | 30~130dBA，35~130dBC |
| Accuracy | +/- 1.5dB (at reference pitch, 94dB@1kHz) |
| frequency range | 31.5Hz~8.5kHz |
| frequency Weighting | A Weighted, C Weighted |
| maximum display | 3 ½ digit LCD display, maximum 1999 reading |
| display resolution | 0.1dB |
| The sampling rate | 2 times/second |
| Max/MIN Minimum | MAX/MIN |
| microphone | 1/2 inch condenser microphone |
| Operating Environment | 0~40℃ 10~80%RH |
| Storage environment | -10~60℃ 10~70%RH |
| Power Supply | One 9V battery, or DC 9V 100mA DC Power Supply |
| Dimensions | 205*55*30mm |
| Product net Weight | Approximately 125 grams |
TASI TA8152 Digital Sound Level Meter Packing list
Host x1, Manual x1, Encasement box
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
