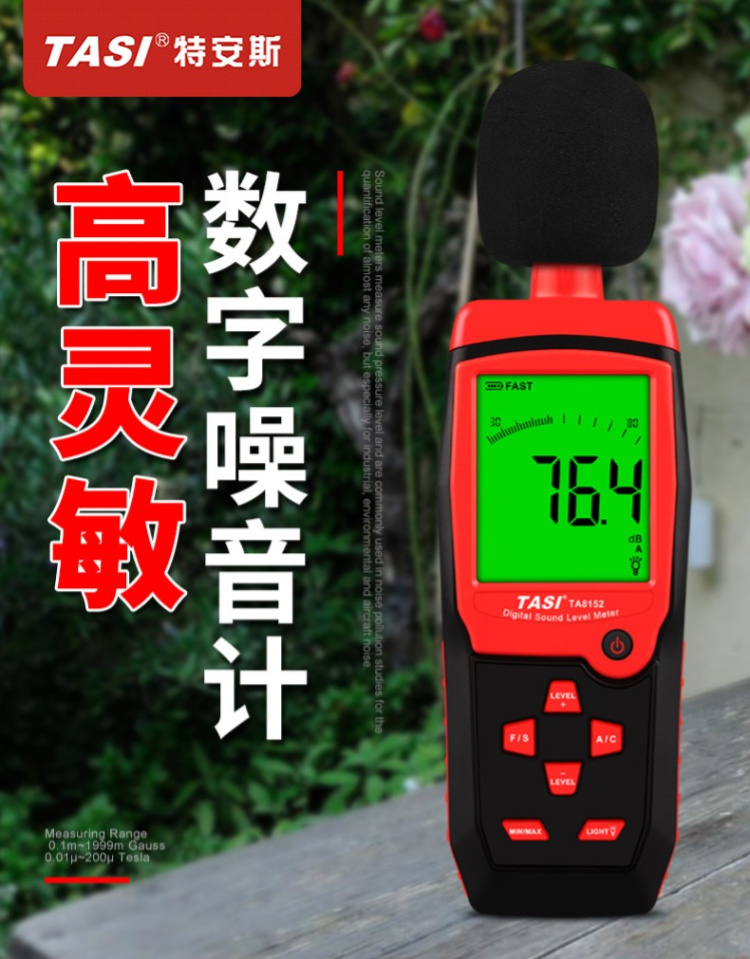

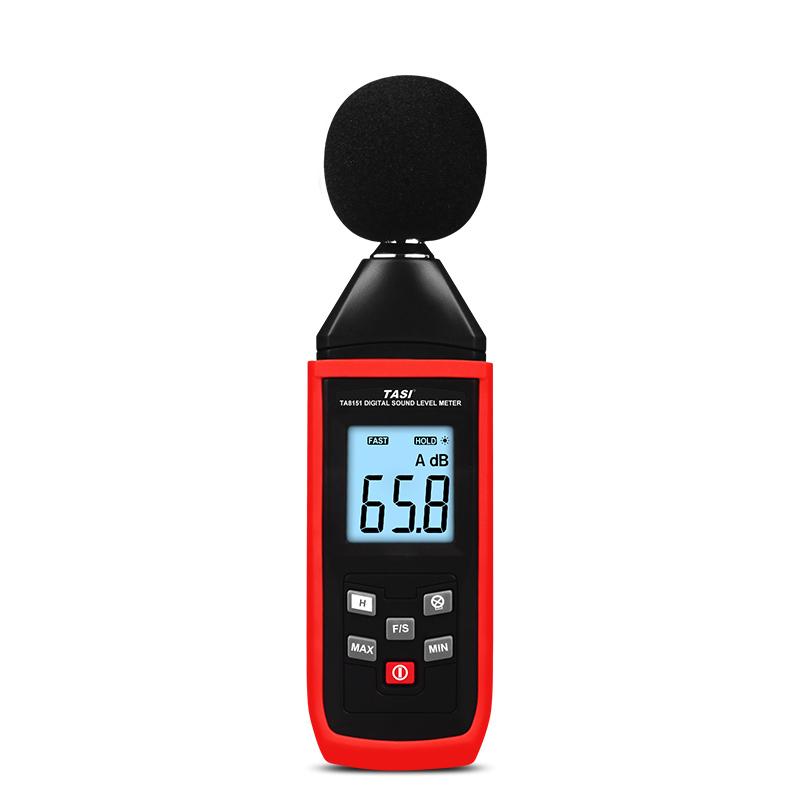

TASI /TASI TA8151 Digital Sound Level Meter
The measurement range of the TASI TA8151 Digital Sound Level Meter is 30~130dBA with an accuracy of +/- 1.5dB. The TA8151 uses a condenser microphone to display test results quickly and accurately in various environments.
TASI
TA8151
-
LANDTEK SL-5868P multi-function sound level meter 4 kinds of sound level measurement
$ 204.00 -
Hypertherm SJ-P Multifunctional Sound Level Meter, Noise Meter
$ 223.00 -
DUBAN DB30-6226LEQ Integrating Sound Level Meter, Integrating Noise Meter Level 2
$ 515.00 -
DB30-6226N Precision Ordinary Sound Level Meter, Precision Sound Level Meter Level 2
$ 273.00 -
DB30-6228N Precision Ordinary Sound Level Meter Level 1 Precision Sound Level Meter
$ 798.00
Brief introduction
A sound level meter, also known as a noise meter, is the most basic instrument used in noise measurement. A sound level meter is generally composed of a condenser microphone, a preamplifier, an attenuator, an amplifier, a frequency-weighted network, and a RMS indicatIon Meter. The working principle of the sound level meter is that the microphone converts the sound into an electrical signal, and then the impedance is converted by the preamplifier to match the microphone with the attenuator. The amplifier adds the output signal to the weighting network, weighs the frequency of the signal (or an external filter), and then amplifies the signal to a certain amplitude through the attenuator and the amplifier, and finally displays the corresponding value on the LCD after being processed by the digital circuit processor.
Features
CE certified qualified products

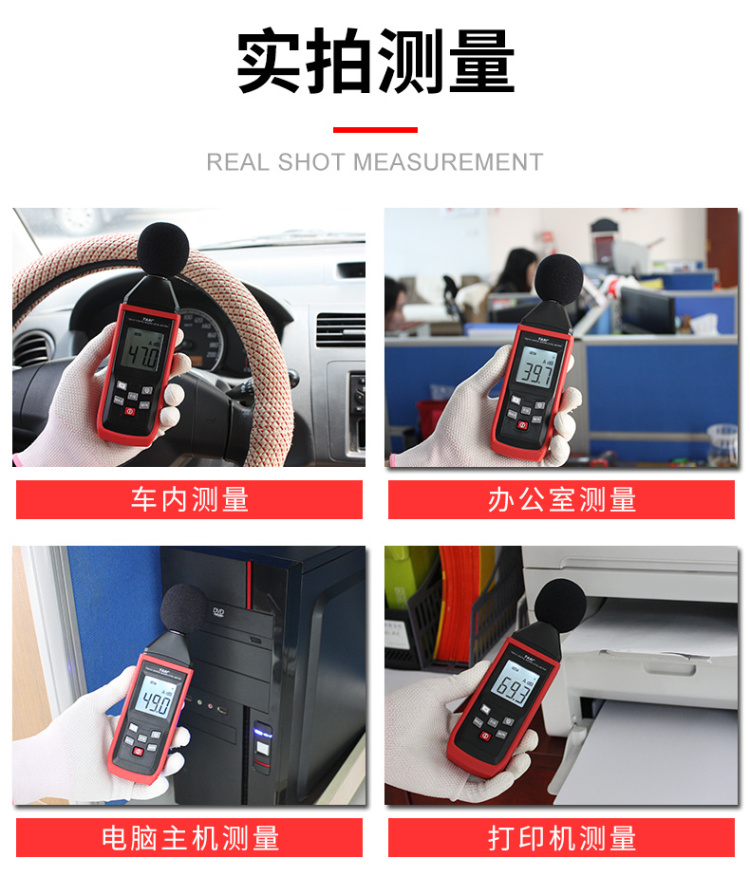

Measure ambient noise

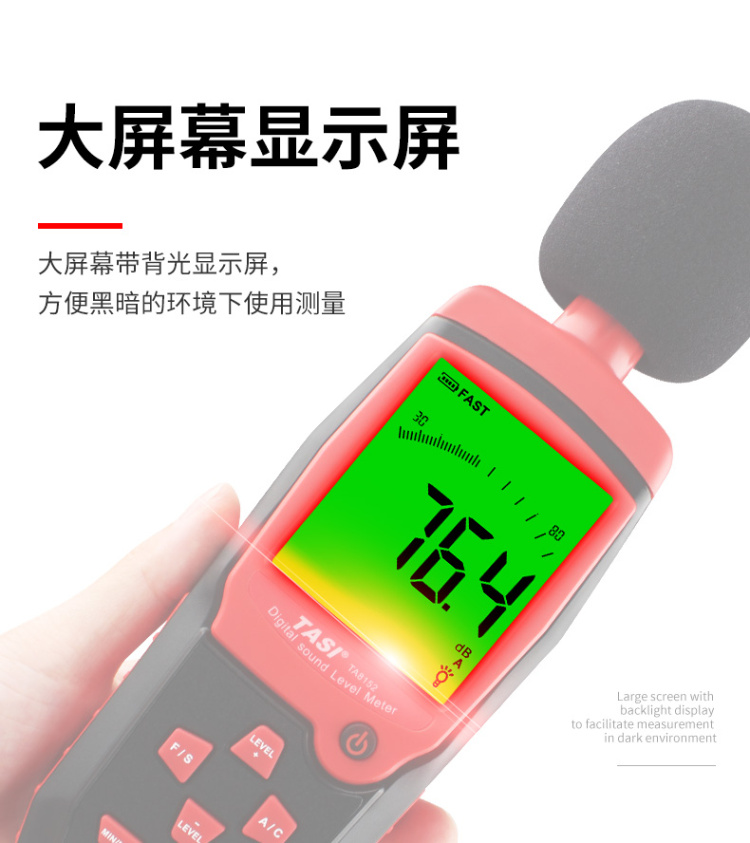

The screen has a backlight function, and in a low-light environment, the screen backlight can be turned on for easy reading of values
Measuring range: 30~130dB
Accuracy: ±1.5dB
Resolution: 0.1dB
TASI TA8151 Digital Sound Level MeterSpecifications
| LIST | VALUE |
|---|---|
| Measurement Range | 30~130dBA |
| Accuracy | +/- 1.5dB (at reference pitch, 94dB@1kHz) |
| frequency range | 31.5Hz~8.5kHz |
| frequency Weighting | A-Weighted (simulated human ear) |
| maximum display | 3 ½ digit LCD display, maximum 1999 reading |
| display resolution | 0.1dB |
| The sampling rate | 2 times/second |
| Max/MIN Minimum | MAX/MIN |

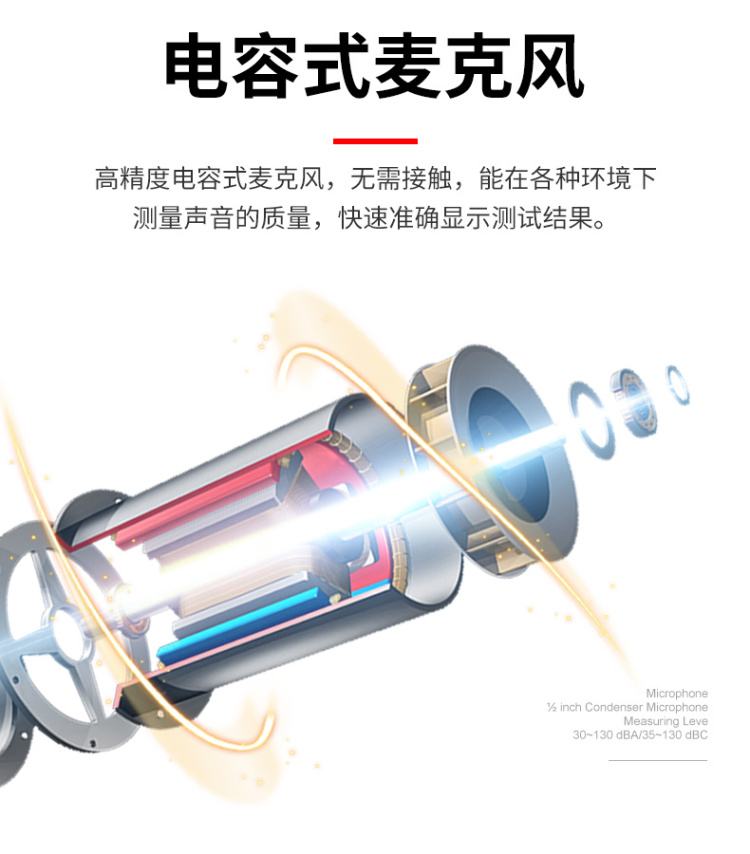

| microphone | 1/2 inch condenser microphone |
| Operating Environment | 0~40℃ 10~80%RH |
| Storage environment | -10~60℃ 10~70%RH |
| Power Supply | One 9V battery, or DC 9V 100mA DC Power Supply |

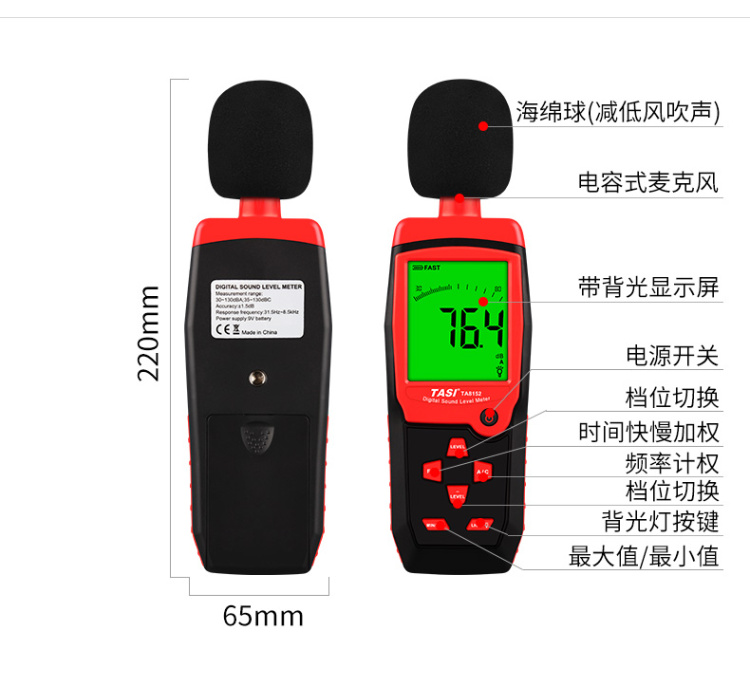

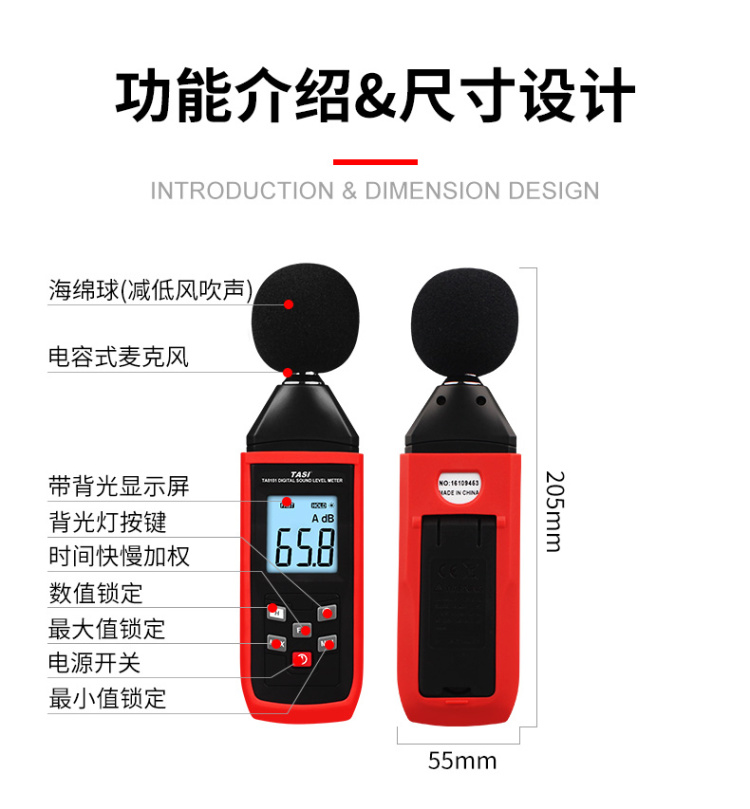

| Dimensions | 205*55*30mm |
| Product net Weight | Approximately 125 grams |

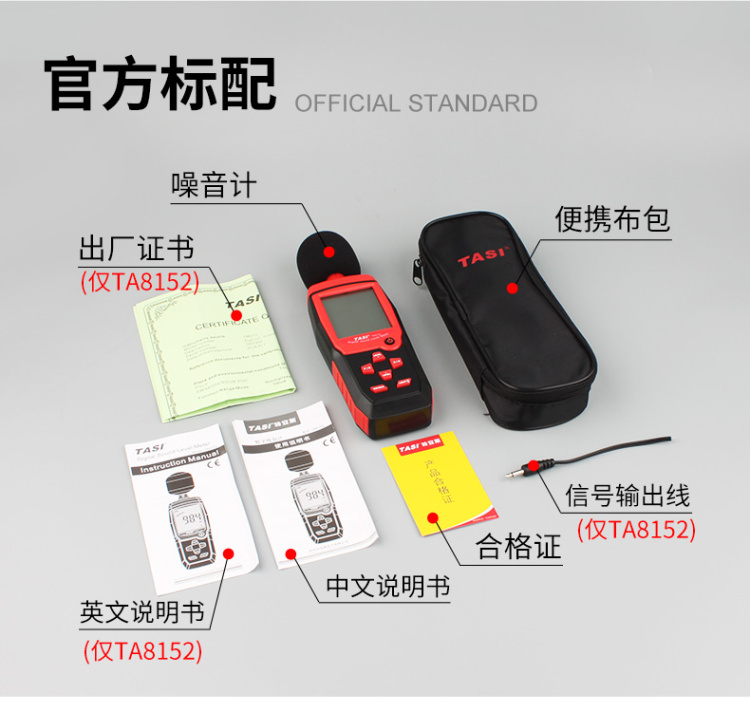

TASI TA8151 Digital Sound Level Meter Packing list
Host x1, Manual x1, Encasement box
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
