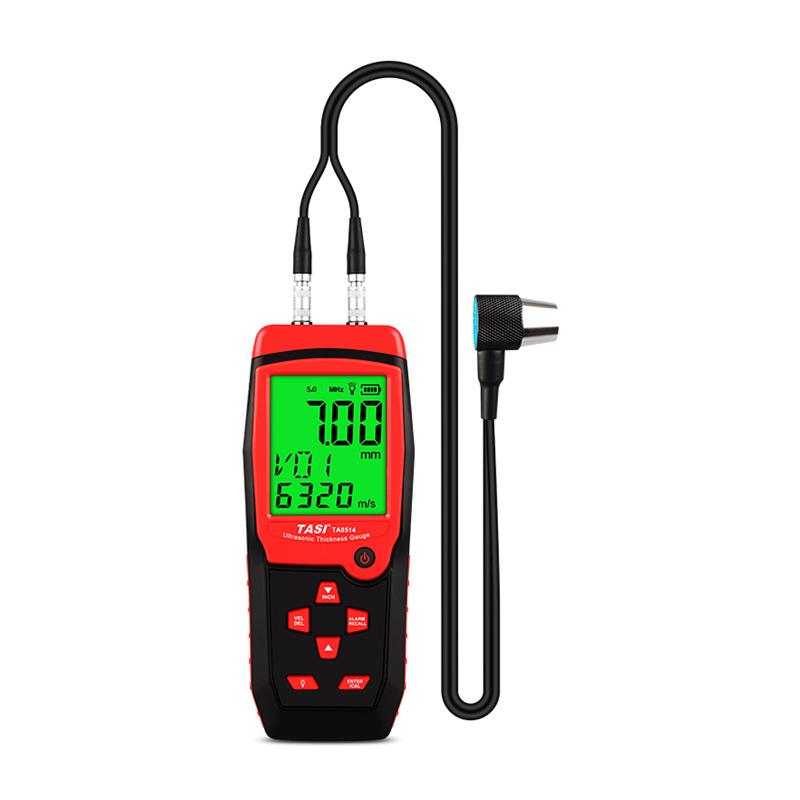

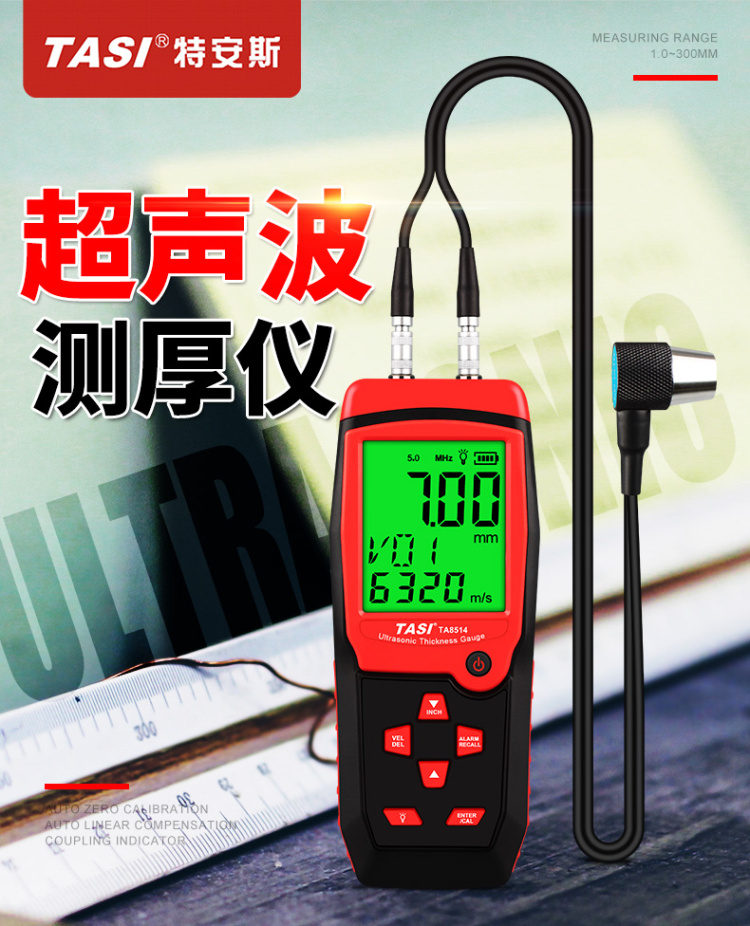

TASI /TASI TA8512 Ultrasonic Thickness Gauge
The TASI TA8512 Ultrasonic Thickness Gauge has a measurement range of 1.2-225 mm (steel) and a sound speed range of 1000-9999m/s. The TA8512 is an Ultrasonic Thickness Gauge with auto calibration zero point function.
TASI
TA8512
-
KAIRDA NDT361 Penetrable coating Thickness Gauge 0.15-20 mm
$ 1089.00 -
Ultrasonic Film thickness Measurement Instrument DC-2020C Deguang Electronics, Film thickness measurement of metal, plate, pipeline, etc
$ 1061.00 -
LEEB322 Ultrasonic Thickness Gauge resolution 0.01mm
Login -
DUBAN DB22-TM240T3 Penetrating coating Ultrasonic Thickness Gauge
$ 430.00 -
IPRE UT700 Ultrasonic Thickness Gauge measurement range 3~ 200mm
$ 510.00
Introduction
A gauge that measures the thickness of an object. It is commonly used in industrial production to continuously measure the thickness of products (such as steel plates, steel strips, paper, etc.). Among these instruments are radioThickness Gauges that use the penetrating characteristics of α-ray, β-ray, and γ-ray; There are ultrasonic Thickness Gauges that use ultrasonic frequency variations; There is an eddy current Thickness Gauge that uses the eddy current principle; There are also capacitive Thickness Gauges, etc. The use of microwave and laser technology to make Thickness Gauges is still in the development and testing stage.

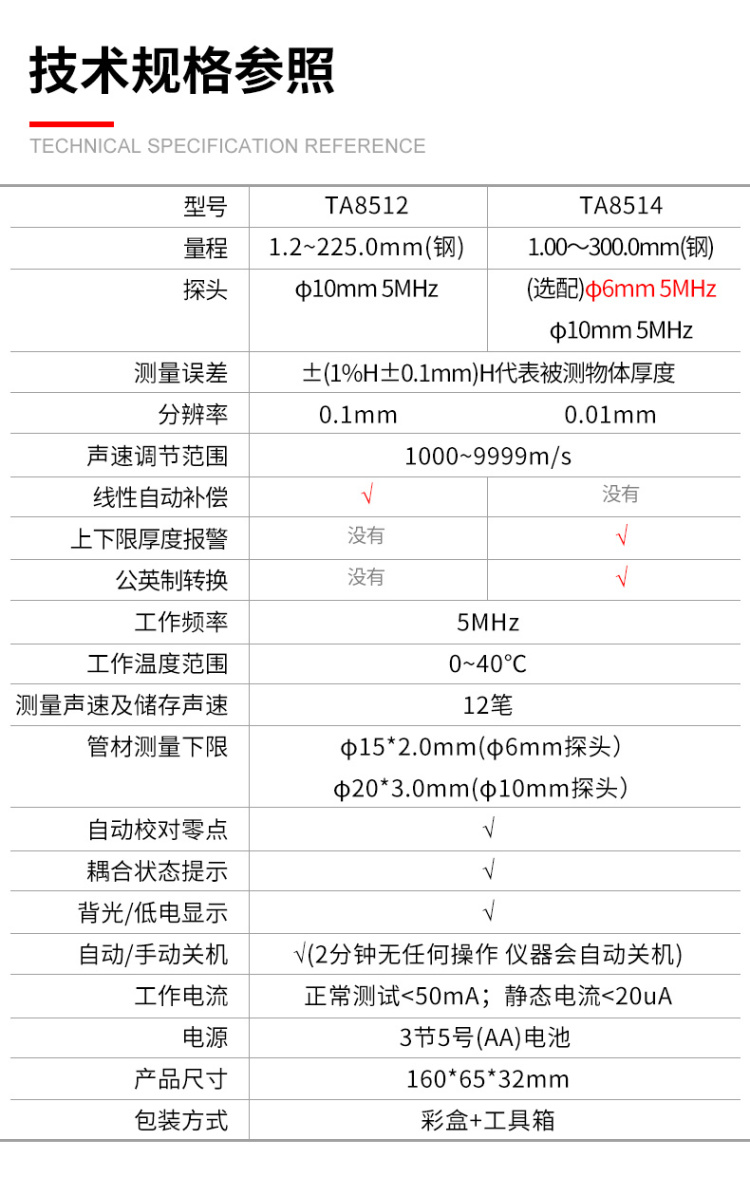

TASI TA8512 Ultrasonic Thickness GaugeSpecifications
| LIST | VALUE |
|---|---|
| Measurement Range | 1.2-225 mm (steel) |

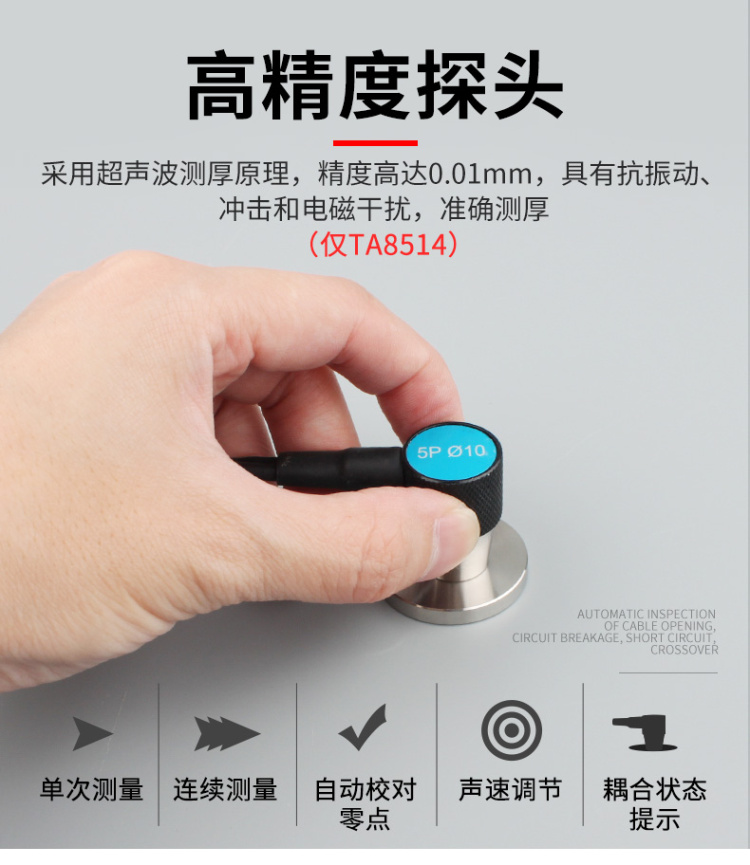

| Probe line length | Φ6mm 5MHz ; Φ10mm 5MHz |
| Lower limit of pipe measurement | φ 10mm probe: φ 20 * 3mm (steel) |
| measurement error | ±(1%H±0.1)mm |

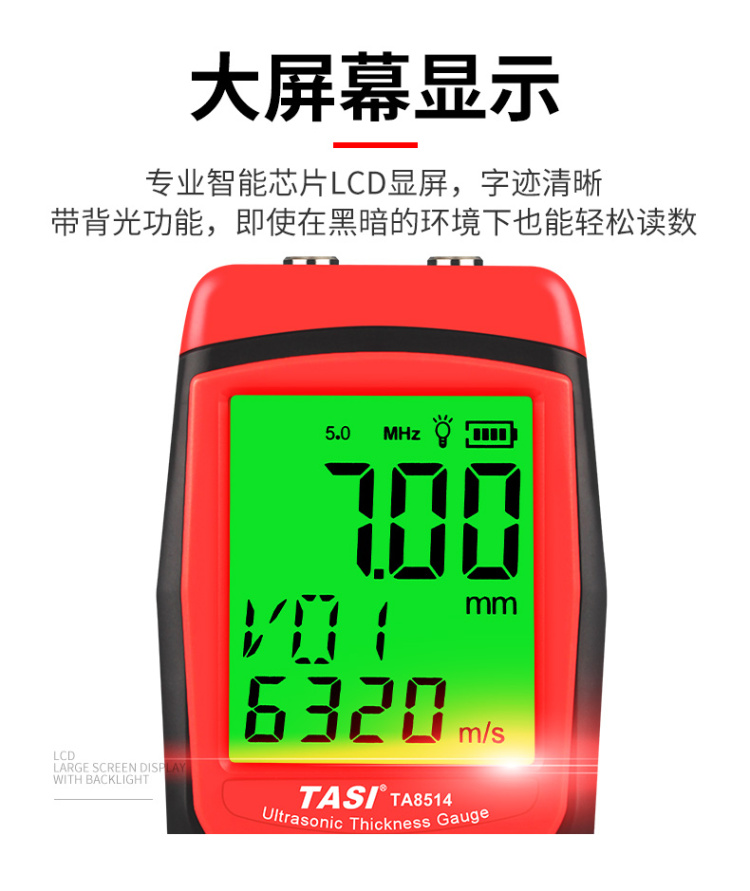

| Display resolution | 0.1mm |
| storage Capacity | 12 groups |
| Sound speed range | 1000~9999m/s |
| Ambient Operating Temperature | 0~40℃ |
| Power Supply | 3 AA batteries |

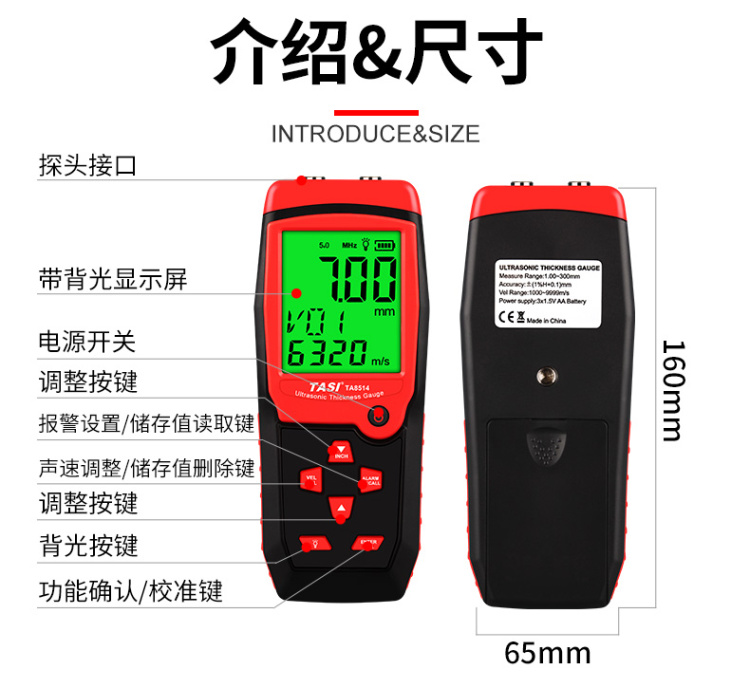

| Host size | 150*80.5*34mm |
| Weight | About 200g |
| probe frequency | 5MHz |
| Anti-measurement sound speed function | support |
| data storage | √ |
| Low Voltage indication | √ |
| Automatic shutdown function | √ |
TASI TA8512 Ultrasonic Thickness Gauge Packing list

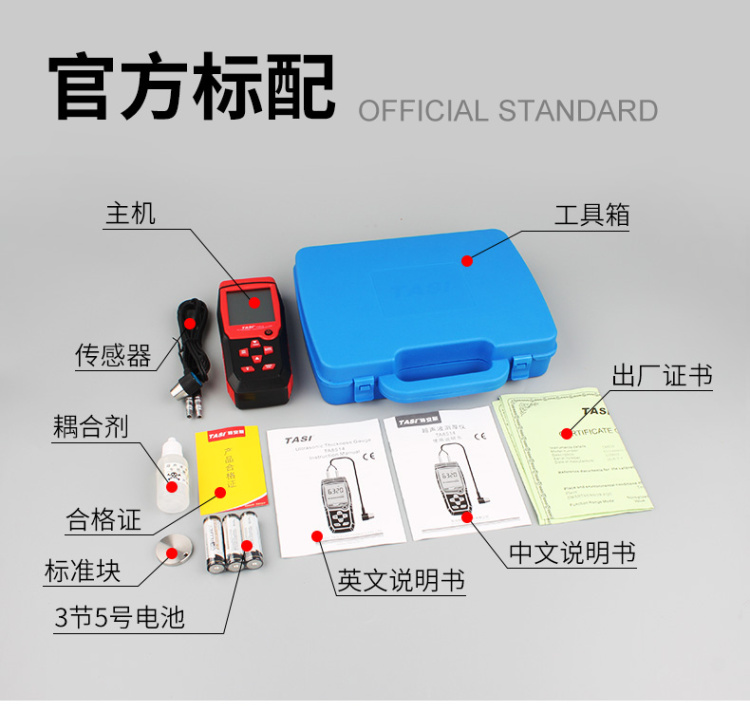

Host x1, Manual x1, Encasement box
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
