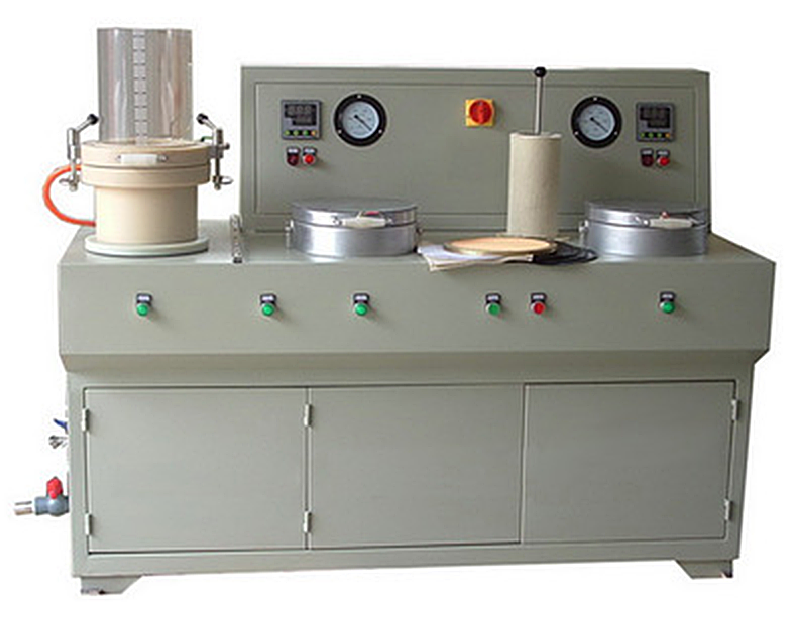

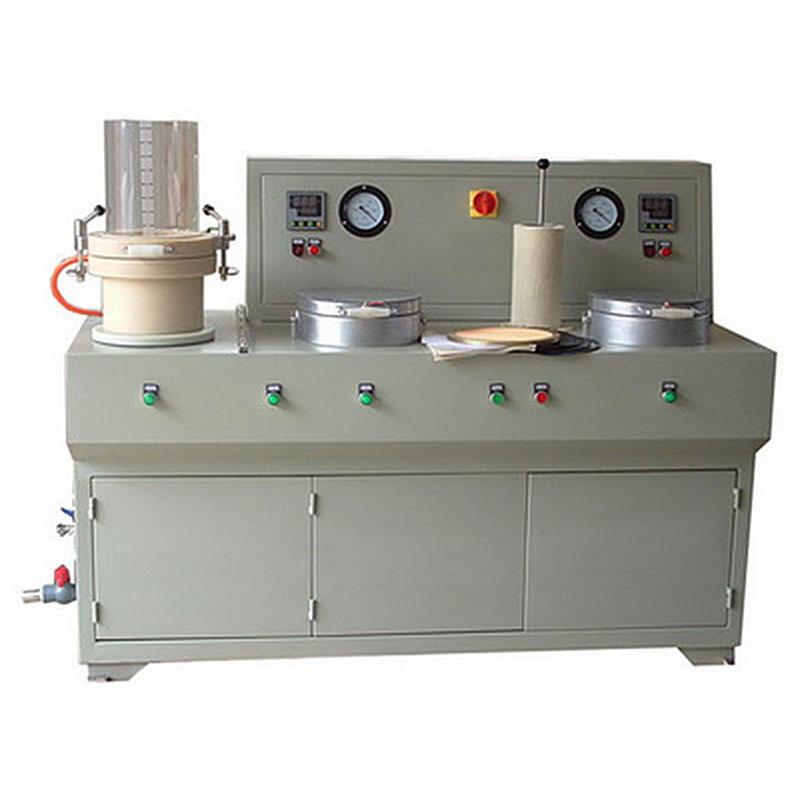

Sheet Former ZY-CZ-1 Fast Kaiser Sheet Reader, Vacuum drying machine

a brief introdction

Paper sample copying device (quick Kaiser method sheet copying device) is an experimental equipment integrating sheet copying and vacuum drying, suitable for research and experiments in paper research institutes and paper mills. It copies the pulp into a φ200 paper sample, and then dries the paper sample on a dryer before inspecting the physical strength of the paper sample to identify the raw material properties of the pulp and the specifications of the beating process.

Structural features

Sheet copying and vacuum drying are integrated, white water circulation, electric sizing, compressed gas homogenization, manual homogenization, electric valve discharge water, Vacuum Pump assisted suction forming, can copy ultra-thick paper samples, there is an elastic suction and compression device in the drying body, paper samples The drying thickness can reach 10mm, and the Vacuum Pump has an automatic anti-oil return device.

Three-stage centrifugal special-purpose Vacuum Pump is adopted. The pump uses Venturi tube principle and centrifugal vacuum technology to generate high negative pressure. It is small in size, compact in structure and large in pumping capacity. It has high vacuum degree and does not require maintenance during use. Can work in harsher environments.

Host X1, operation manual X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
