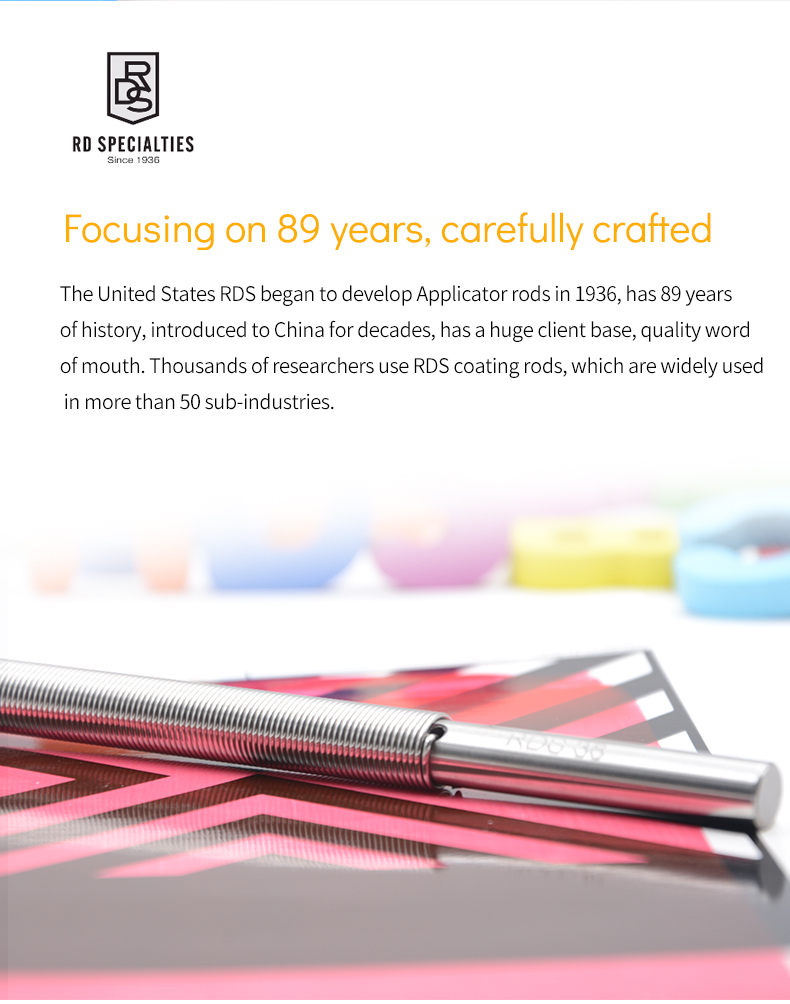

RDS 26 #3/8 "Applicator rod WFT 59.4μm Length 400mm

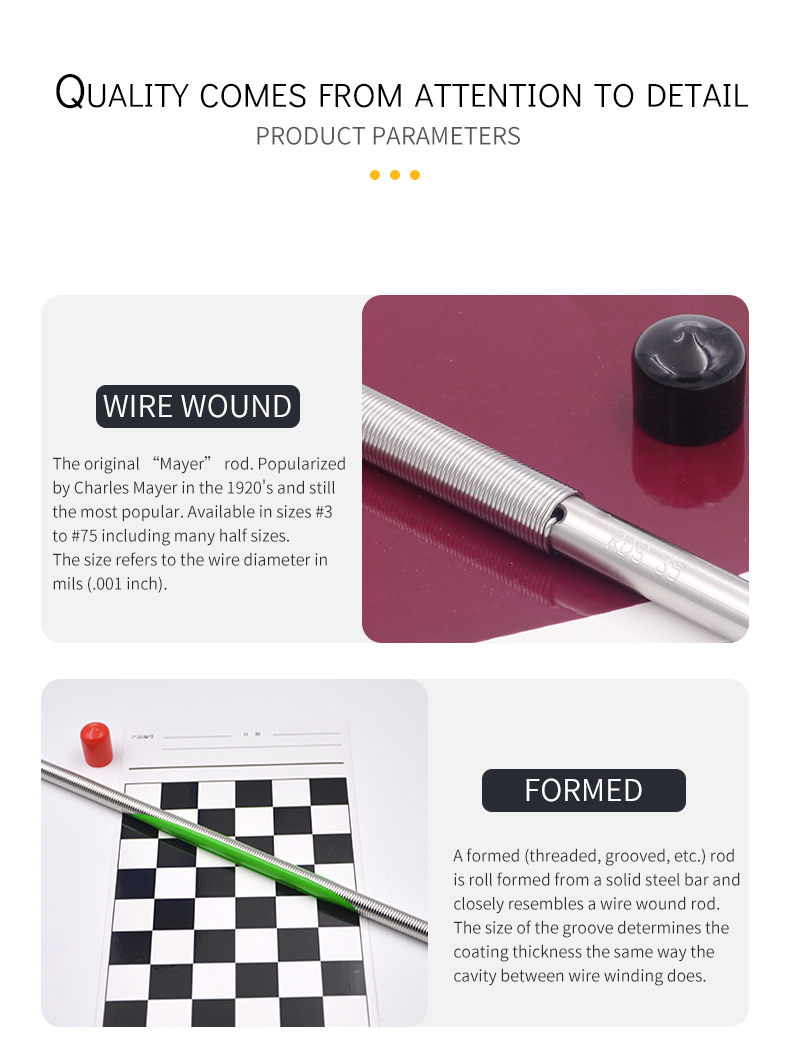

Wire-wound, wet film thickness 59.4μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel, Wire diameter 0.66mm.
Brand
SKU: NB000023
RDS
26# 3/8"
26# 1/2"
26# 1/4“
26# 1/4"
26# 3/8"
Price
$ 161.00
Promotion
Service
The delivery and service By NBchao.Com
VS
What else did others buy
Genuinegoods
26# 3/8"
Applicator rod 3/8 "
Wire-wound, wet film thickness 59.4μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel, Wire diameter 0.66mm.
VS
RDS 26# 3/8" Applicator rod 3/8 "Specifications
| LIST | VALUE |
|---|---|
| Production process | wire-wound |
| WFT | 59.4μm |
| diameter | 9.52mm |
| Total length | 400mm |
| application width | 300mm |
| Grip Width | 50+50mm |
| material | stainless steel |
| Wire diameter | 0.66mm |
RDS 26# 3/8" Applicator rod 3/8 " Packing list

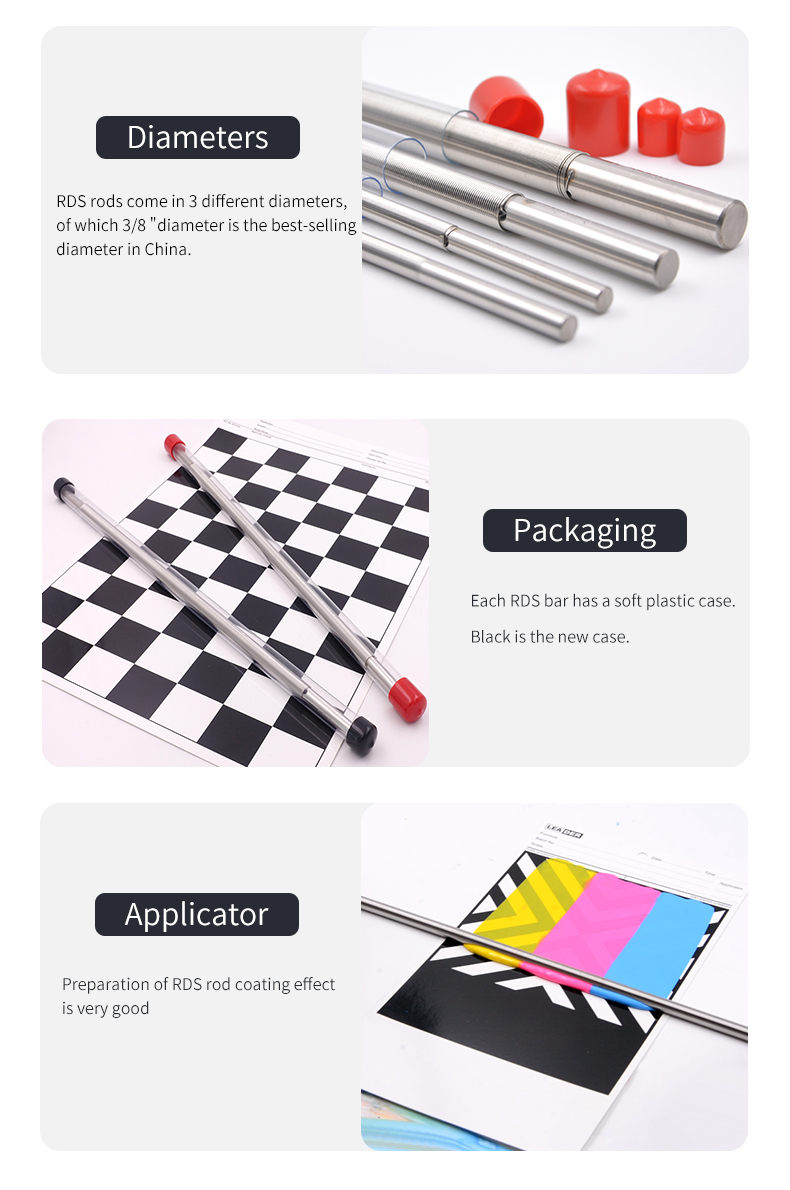

Stainless Steel Rod X1 Transparent Encasement Hose X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
FAQ
[Q]
Do you have a wire-wound coating rod RDS 26 200 micron?
[A]
200 microns Yes, the wet film thickness of RDS 26 is 59.4 μm, and the 200 micron wet film thickness should be 85 and 90.
[Q]
RDS Applicator rod can be used in emulsion painting laboratory?
[A]
Hello, it's OK.
[Q]
Can RDS 3/8 diameter Mayer Rods be installed on Baoda film machines?
[A]
Hello, 3/8 diameter is OK.
[Q]
Do you support customization? Such as wet film thickness and length?
[A]
Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
[Q]
Applicator rod conforms to GB/T13217.1 standard?
[A]
Applicator rod is suitable for GB/T13217.1, please consult customer service for detailed application definition
