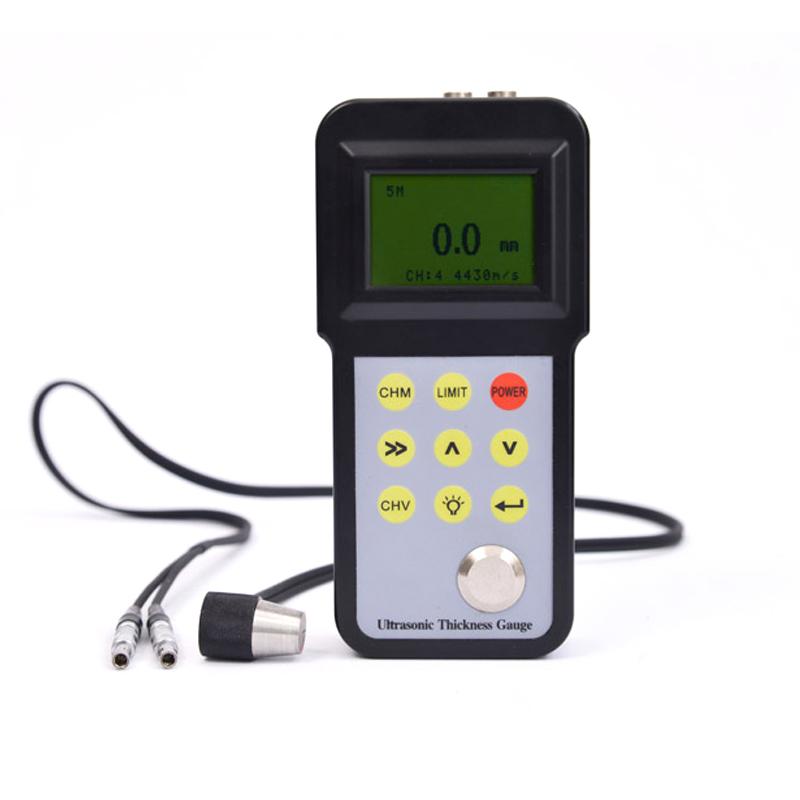

EASTONG ETC-098 Ultrasonic Thickness Gauge Good conductor thickness for measurement of any hard material and Miscellaneous any ultrasound
EASTONG ETC-098 Ultrasonic Thickness Gauge is the use of ultrasonic Measurement principle for measurement, this ultrasonic thickness Tester can make accurate measurement of various plates and various processed parts, and can also monitor various pipes and Pressure Vessel in production equipment.
Eastong
ETC-098
-
LANDTEK TM-8818 Ultrasonic Thickness Gauge 40cm/+/- 0.5%
$ 389.00 -
Germany EPK MiniTest 430 Ultrasonic Thickness Gauge Thickness Range 0.8~ 300mm
$ 1387.00 -
DONGRU DR85S Ultrasonic Thickness Gauge 400mm/0.01mm
$ 167.00 -
AMITTARI AT-140T3 Penetrating coating Ultrasonic Thickness Gauge 1.00mm~ 300mm
$ 389.00 -
Ultrasonic Film thickness Measurement Instrument DC-2020C Deguang Electronics, Film thickness measurement of metal, plate, pipeline, etc
$ 1053.00
Introduction
ETC-098 ultrasonic Thickness Gauge is measured by the principle of ultrasonic measurement, this ultrasonic thickness Detector can accurately measure all kinds of plates and various processed parts, and can also monitor various pipelines and pressure vessels in production equipment.
Application
ETC-098 ultrasonic thickness Detector is widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields. It is mainly used to measure the thickness of various materials that can make ultrasonic waves propagate inside at a constant speed and be reflected on their backs.
Eastong ETC-098 Ultrasonic Thickness GaugeSpecifications
| LIST | VALUE |
|---|---|
| Measurement range | 0.75~ 300.0Mm (determined by the probe) |
| Probe Frequency | 5MHz |
| Probe style | Split probe |
| Probe diameter | Φ6mm |
| Lower limit of pipe measurement | Φ20*3mm |
| Measurement error | ±(1%H+0.1)mm |
| Display resolution | 0.01mm |
| unit system | mm |
| Speed of sound | 1000~9999m/s |
| Display | LCD screen |
| Operating language | Chinese |
| Application Software | without |
| Environmental temperature | 0~40℃ |
| Working Relative Humidity | ≤85%RH |
| Power Supply | 2 * 5 battery |
| Host size | 150*73*32mm |
| Weight | 180G (without battery) |
| Application | Thickness measurement of any hard material such as steel, cast steel, aluminum, copper, brass, zinc, quartz Glass, polyethylene (PE), polyvinyl chloride (PVC), gray cast iron, ductile cast iron, ceramic, plastic and Miscellaneous any ultrasonic good conductor. |
Eastong ETC-098 Ultrasonic Thickness Gauge Packing list
Host x1, 5M φ 6 Sensors x1, coupling agent x1, operation manual x1, portable box x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
