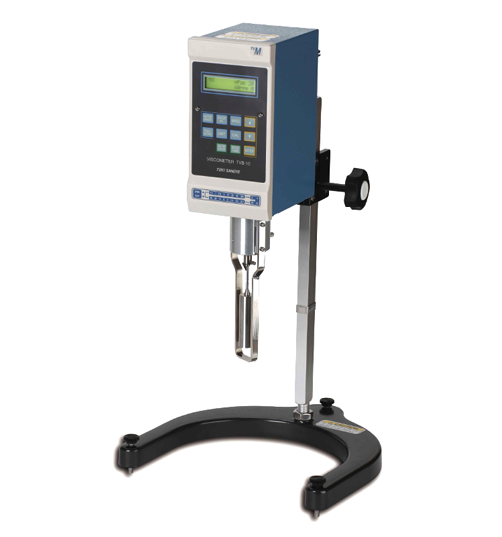

TOKI TOKI TVB-10HW Rotational Viscometer 400~8 million mPa · s

Introduction

The TVB-10 viscometer has a simple structure and is durable. It is the standard for digital viscometers. The TVB-10 viscometer was developed with the concept of "easy operation and safe use". In order to enhance durability, the central bearing uses "twisted wire and magnetic bearings". Continuous and stable measurement, excellent data repeatability. "Digital display", "auto-stop function" and "one-touch rotor installation" make it safe and convenient to use even for first-time viscometer users, making it the standard for digital viscometers.

Features

◆No drive shaft function (twisted wire + magnetic bearing)

Using a non-contact "twisted wire and magnetic bearing" structure, there is no loss of parts. High-precision and safe measurement, continuous and stable data repeatability. It adopts a design that even beginners can use with peace of mind .

◆Digital display

Digital display with no reading errors .

◆Zero point and range setting function

It can compensate for high accuracy and deviation values ​​between instruments .

◆Auto stop function

●Measurement time and target viscosity can be set arbitrarily, and the viscometer can automatically stop working .

●Auto stop time

●External input and output signals (I/O input and output ports)

●The start and stop of the viscometer are operated by an external input signal (no Voltage contact). Used in combination with the T-shaped shaft stand TS20 (optional accessory). Using the output signal (open collector), the lamp and buzzer can be used (optional accessory), etc. to check the status of the viscometer .

◆One-click rotor installation

●Adopts simple rod insertion method with detachable rotor.

◆Display switch

●During measurement, just press the UNIT key to switch between the viscosity value and the indicated value (%) .

◆Data interchangeability

●It can be interchanged with the data of B-type viscometer and complies with JIS and ISO standards .

plan

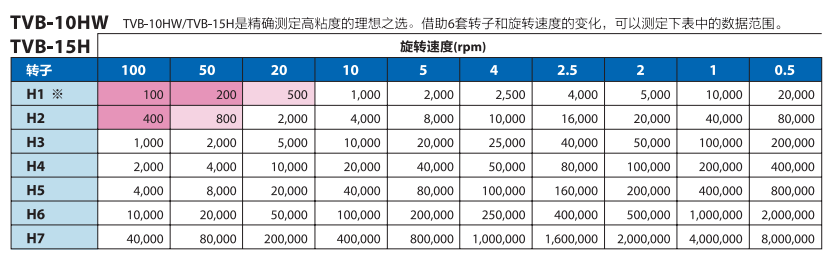

TVB-10HW rotor measurement upper limit value table (mPa·s)

Viscometer X1, certificate of conformity, warranty card, manual

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
