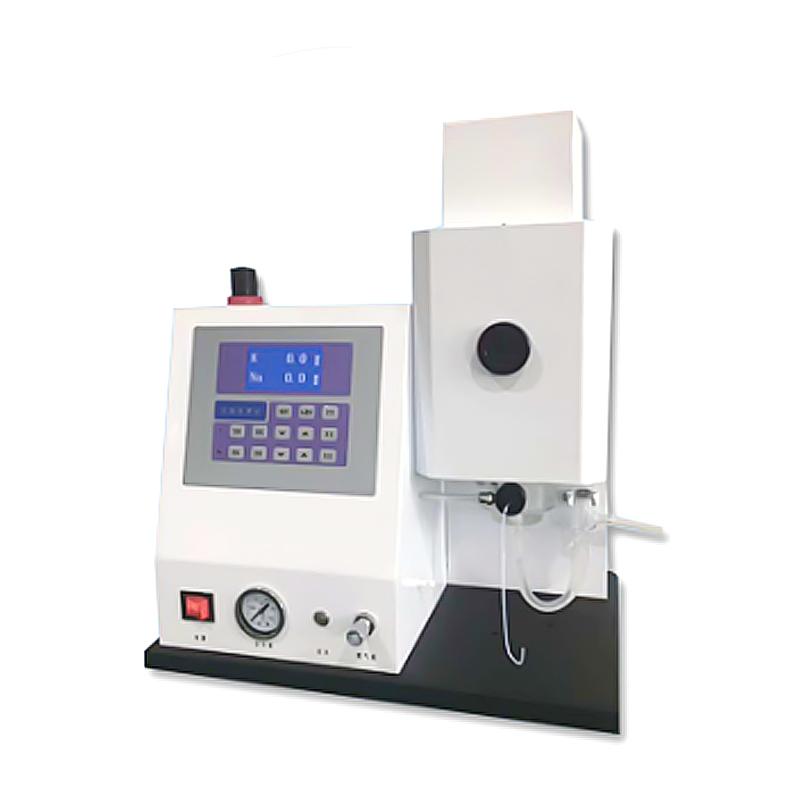

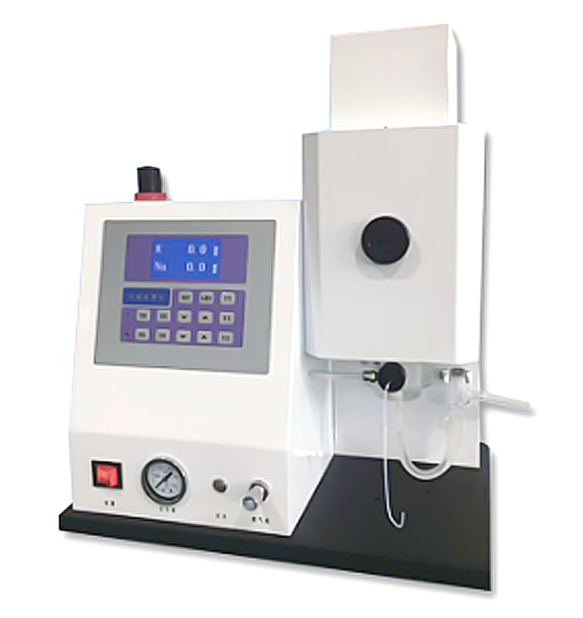

JINGQI FP6450 Flame photometer
JINGQI FP6450 Flame photometer Operating Mode Interference filter, display system LED LCD screen, sample absorption and spray volume < 6mL/min, Stability ≤ 3% within 15s; ≤ 5% within 5min, Response time < 8s.
JingQi
FP6450
-
YueFeng UV759 (PC) Ultraviolet Spectrophotometer Wavelength: 190m~ 1100nm
$ 1356.00 -
YUEFENG FP6428 Flame photometer Na/Ca
$ 1450.00 -
YUEFENG FP6455 Five-element Flame photometer
$ 1982.00 -
YUEFENG FP6423 Flame photometer Calcium Ca/Ba
$ 1450.00 -
YueFeng 754 Ultraviolet-visible Spectrophotometer 195~ 1000nm Bandwidth 4.0nm
$ 792.00
Features
Five channels (potassium, sodium, lithium, calcium, barium)
Direct reading of the concentration of five elements
Menu-based keyboard operation
The correlation coefficient is automatically calculated
Printer can be equipped
Can be connected to a computer
The flame size is pre-selected
With flame-out protection device
Application
Ceramic
Cement
Glass
Soil fertilizer
Clinical
Refractory materials
Third-party testing ·
Professional colleges
JingQi FP6450 Flame photoMeterSpecifications
| LIST | VALUE |
|---|---|
| Operating Mode | Interference filter |
| monitor | LED LCD screen |
| sample absorption and spraying Capacity | ＜6mL/min |
| Stability | ≤ 3% within 15s; ≤ 5% within 5min |
| Response time | <8S |
| Detection limit | K:≤0.004mmol/L；Na:≤0.008mmol/L Li:≤0.015mmol/L；Ca:≤0.050mmol/L；Ba:≤0.044mmol/L |
| Repeatability | ≤ 3% |
| Linearity | K：≤0.005mmol/L ；Na：≤0.03mmol/L； Li：≤0.021mmol/L；Ca：≤0.075mmol/L；Ba：≤0.066mmol/L |
| test range | K：0~100ug/ml；Na：0~160ug/ml； Li：0~100ug/ml；Ca：0~1000ug/ml；Ba：0~3000ug/ml |
| Light transmission characteristics of filter | Potassium, lithium, calcium, barium: the absolute value of the peak wavelength error ≤ 7nm; sodium: the absolute value of the peak wavelength error ≤ 5nm |
| Light transmission characteristics of filter | Potassium, sodium, lithium, calcium, barium: half width ≤ 15nm; potassium, sodium, lithium, calcium, barium: background transmittance ≤ 0.5%; |
JingQi FP6450 Flame photoMeter Packing list
host x1, power cord x1, instruction manual x1, certificate x1, warranty card x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
