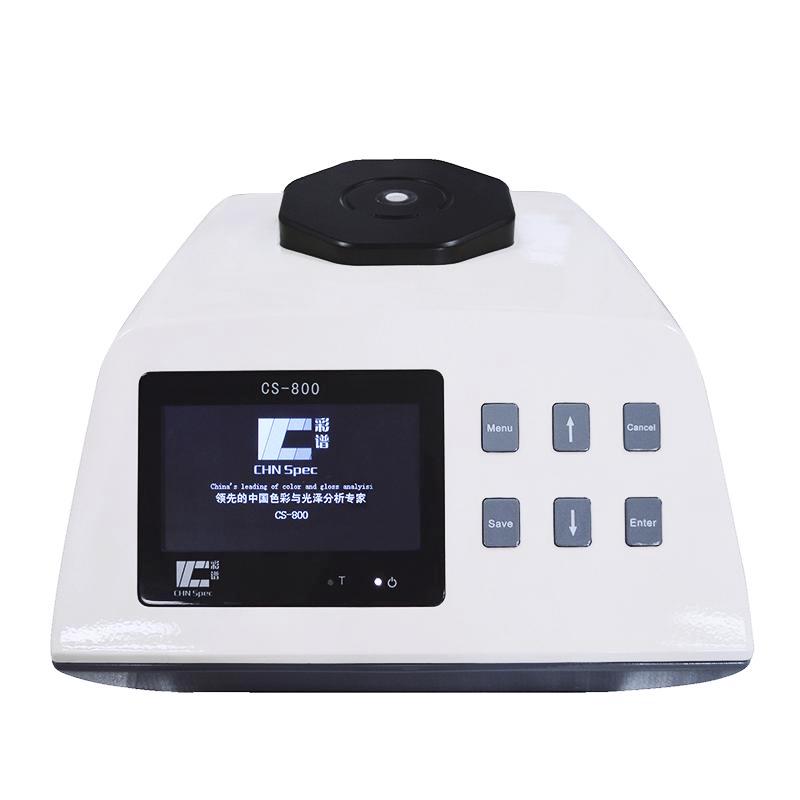

CHNSPEC CS-800 Desktop Colorimeter reflection measurement Colorimeter

Introduction

Color spectrum CS-800 Spectrophotometer is a kind of desktop Spectrophotometer , the test aperture is facing up, the measurement aperture is 11mm, it is a high-performance Spectrophotometer .The illumination observation geometric conditions of the CS-800 Spectrophotometer adopt the D/8 structure, which can measure both SCI and SCE at the same time, and has real-time calibration technology.CS-800 Spectrophotometer It integrates full-band LED composite light source, dual-path beam splitting system, ETC real-time calibration and other technologies, the standard deviation of spectroscopic reflectance is within 0.08, the chromaticity value is 0.03 maximum, and the difference between stages is within 0.2.The CS-800 benchtop Colorimeter is suitable for:The need to measure color difference and analyze color in various fields such as coatings, printing, textiles, plastics, food, products, and automobiles.

Product application advantages

▪ The CS-800 desktop Spectrophotometer adopts D/8 illumination observation geometric conditions, and the test aperture is designed upwards, which is convenient for measuring samples in different states such as solids, particles, powders, pastes, etc.

▪ Solid samples (plates, fabrics) can be placed directly on the measuring port, and particles (tablets, masterbatches), powders (pigments, coffee), pastes (ketchup) can be placed in a petri dish and then placed on the test port for measurement.

▪ The CS-800 benchtop Spectrophotometer adopts ETC real-time calibration technology (Every Test Calibration),CS-800 benchtop ColorimeterSystem hardware and software are calibrated. This technology fundamentally solves the long-term measurement stability and data drift problems of color measuring instruments. The standard deviation of spectroscopic reflectance is within 0.08, the chromaticity value ΔE*ab is 0.03, and the difference between stages is within 0.2.

▪ The CS-800 desktop Spectrophotometer can be used through a PC and color management software connection, which is convenient for enterprise quality monitoring and color data management. It can digitize the user's color management, compare the color differences, generate test reports, provide a variety of color space measurement data, and customize the customer's color management work.

Features

▪ 5-inch true color display

▪ The test aperture is facing upwards, which is convenient for the measurement of samples in different states such as solids, granules, powders, pastes, etc

▪ Φ11mm measuring aperture

▪ CS-800 benchtop Spectrophotometer With LED light source, it is very durable and can measure up to 3 million times in 10 years

▪ Simultaneous measurement of SCI (including specular reflection) and SCE (elimination of specular reflection)

▪ Obtained domestic (CN) metrology certification

▪ It can be connected to USB to transfer data, and can be operated on the PC software on the host computer

▪ Massive storage space: CS-800 Spectrophotometer 40,000 test data can be recorded

▪ Novel and stylish design based on ergonomics

▪ Simple operation mode, simple operation interface

▪ Low-power design, large-capacity rechargeable lithium battery configuration

▪  CS-800 Spectrophotometer It can be connected to a micro printer for printing

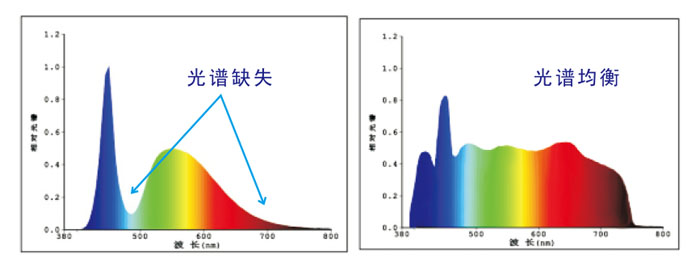

▪ CLEDs official full-band equalized LED light source is adopted

▪ ETC real-time calibration technology

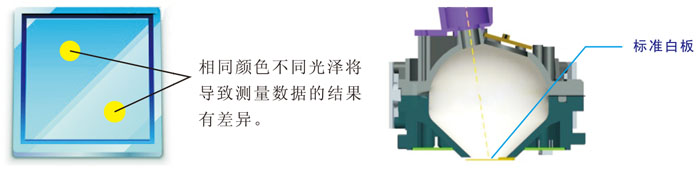

▪ Automatic gloss compensation technology

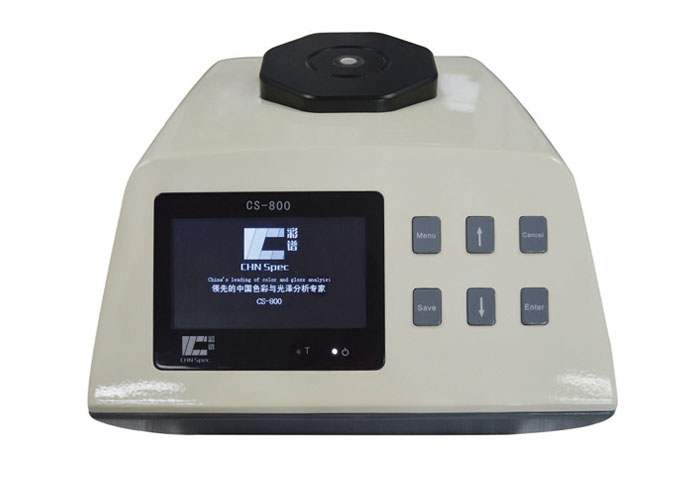

Actual picture of the product

Host x1, AC power cord x1, manual x1, Color management software x1, driver software x1, manual electronic version x1, Color management tutorial x1, data cable x1, black and white correction cylinder x1, Electronic Formula Guide x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
