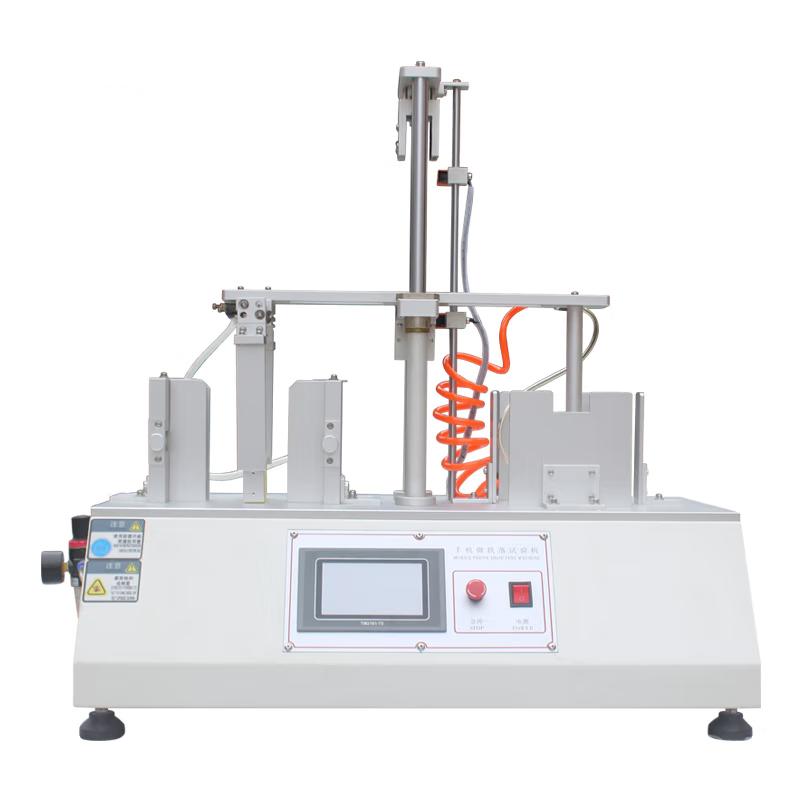

CHINA mobile phone Dropping Tester NBC-5619B

Product use

This machine is suitable for repeated drop tests for small electronic consumer products such as mobile phones, telephone handsets, walkie-talkies, MP3, CDs, and electronic dictionaries

principle of action

The motor drives the upper clamp (air finger) down to clamp the mobile phone, rise, release the air finger, and the mobile phone becomes a free drop movement. At this time, the double-action cylinder telescopic pushes the mobile phone to the position where the clamp can be clamped. The motor drives the upper clamp (air finger) down to clamp the mobile phone, rise, and open the air finger. The mobile phone becomes a free drop movement, and so on until the set number of times.

Product features

• The number of times can be set to automatically stop

• Drop surface material: aluminum, thickness of 12mm. Drop baffle reset.

• Tip function: can set the number of buttons fixed value, can automatically stop the test.

• This machine uses Japan's Shinano motor as a mobile phone lift and drop drive source, which is durable; it can realize repeated drops of mobile phones and other products to detect the impact resistance of products falling from a certain height;

• Due to the use of pneumatic components and authoritarian control methods, the test speed and consistency are greatly improved; the LCD touch control screen + PLC programmable controller are used for action programming; the test is automatically stopped when the number of times it reaches the setting is counted at the same time

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
