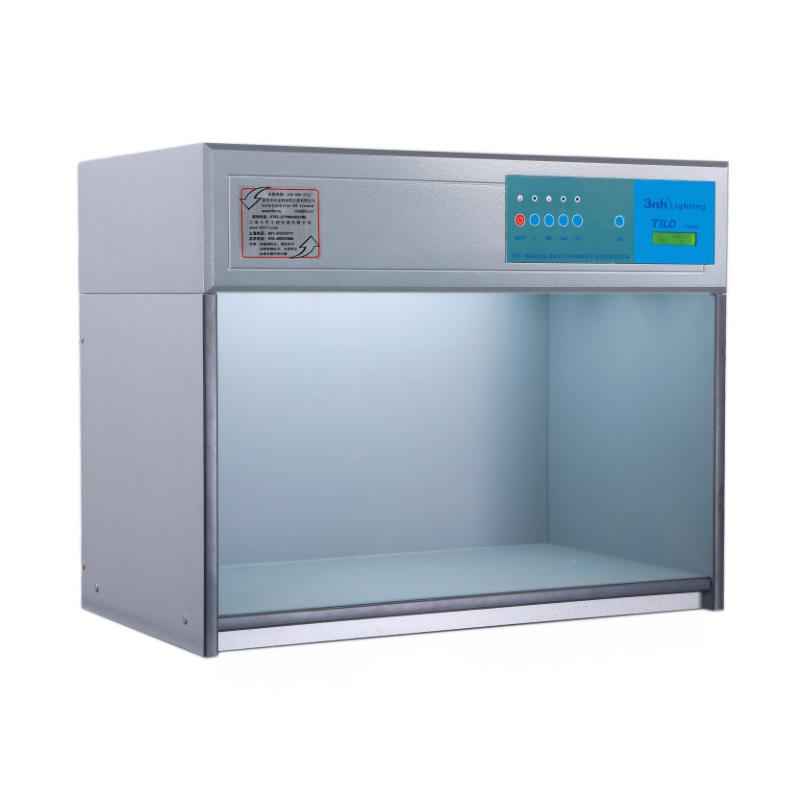

DOHO DOHO T60 + color light box
DOHO T60 + color light box has D65, TL84, F, UV four Light sources, T60B Standard light source color light box configuration British 60 original lamp, no heat.
DOHO
-
TILO P120 extra large six light source light booth light source automatic switching
$ 782.00 -
TILO T8B-X (4) up and down filling light four lights
$ 7302.00 -
TILO M60 standard illuminant lighting booth
$ 577.00 -
3NH CC120-B-3 Standard Stand, Light source with bottom drawer
$ 1919.00 -
TILO 45 ° Standard Stand Colorimetric Light booth Accessories
$ 103.00
Benefits:
A. Composite engineering plastic mold production for more than ten years without yellowing, deformation, and paint stripping
B. Display the use time, name and number of switches for each light source
C. The light source is automatically switched, and it has the function of metamerism
D. No need to preheat and no flashing, which can ensure fast and reliable color evaluation
E. Low energy consumption, no heat generation (no heat dissipation), high luminous efficiency
F. Equipped with British 60 original lamp, the background color is fully compatible
G. Seamless structure design, no light leakage, no light transmission, to avoid interference between light sources
Application industry
T60B six-light source standard light source box scope of application: textile, toys, printing and dyeing, plastics, paints, inks, printing, pigments, chemicals, ceramics, shoes, leather, hardware, food, cosmetics and other industries of color management, used to accurately calibrate the color deviation of goods.
Description of the light source
D65 International Standard Artificial Daylight
Color Temperature: 6500K Power: 20W
TL84 European, Japanese, Chinese store light source
Color temperature: 4000K Power: 18W
CWF Cool White Fluorescent
Color Temperature: 4150K Power: 20W
F Family hotel lamp, colorimetric reference light source
Color Temperature: 2700K Power: 40W
Ultraviolet
Wavelength: 365nm Power: 18W
U30 Warm White Fluorescent
Color Temperature: 3000K Power: 20W (30U)
A American-style kitchen window spotlight, colorimetric reference lamp
Color Temperature: 2856K Power: 60W
TL83 European Standard Warm White Store Light Source (Warm White)
Color Temperature: 3000K Power: 18W

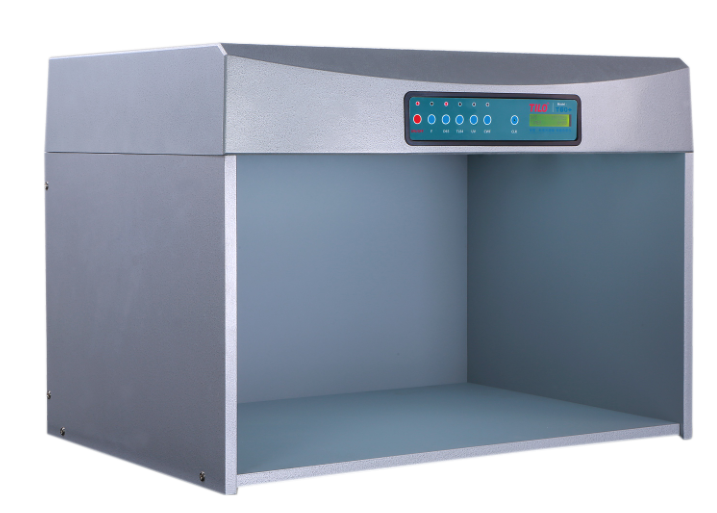

Display diagram
DOHO Specifications
| LIST | VALUE |
|---|---|
| Light source | Light source |
| Light source type | D65、TL84、F、UV、CWF |
| Dimension | 695*552*502mm |
| Weight | 19.5Kg |
| Power supply Voltage | 220V |
| Optional accessories | 45 degree standard stand |
DOHO Packing list
Light source (45 degree standard stand, purchased separately) x4, manual x1, certificate of conformity x1, warranty card x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
