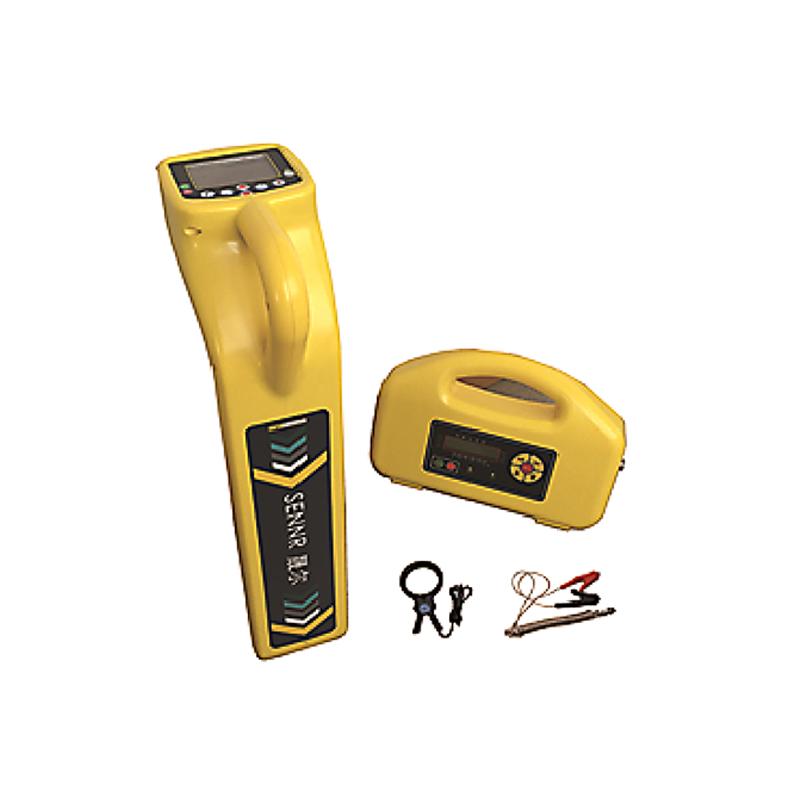

SENNR-6018-B Underground Pipeline Detector

Introduction

SENNR series underground pipeline Detector is carefully built by the domestic (CN) professional R&D team, integrating ultra-narrowband filter, Bluetooth wireless communication, GPS positioning, professional data analysis software automatic mapping, automatic generation of test reports and other professional technologies, with super anti-interference ability, accurate positioning and bathymetry and other excellent detection performance, suitable for the detection and inspection of various underground metal pipelines, pipeline management and maintenance, municipal planning and construction, power supply and other departments of pipeline detection, is one of the required instruments for pipeline maintenance units.

Features

1. Adopt 10W broadband transmitter to adapt to the detection of various environments;

2. The receiver and transmitter are powered by lithium battery packs, which is energy-saving and environmentally friendly, and has long Operating Time;

3. The display has a backlight function, which can be adapted to the use of emergency rescue at night;

4. It has left and right arrow display, which can quickly locate the position of the pipeline;

5. When detecting the damage point of the anti-corrosion layer, there are front and rear arrows and dB values to indicate the location of the damage point of the anti-corrosion layer.

Technical parameters of SENNR-series pipeline Detectors

(1) Receiver

Positioning accuracy: ±5% of depth

Depth measurement accuracy: ±5% of depth (no interference from adjacent pipelines)

Current measurement accuracy: ±5% of actual current

Depth measurement range: <6 meters

Working mode: valley mode, peak mode, broad peak mode, peak arrow mode

Working frequency: radio, 50Hz, 100Hz, 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz

Menu settings: Set menus in Chinese and English.

Operating temperature: -20°C~+50°C

Battery: 7.4V lithium battery

Dimensions: 595mm× 136mm×238mm

Weight: 2.3Kg (including battery)

(2) Transmitters

Output power: 10W

Working frequency: 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz

Working mode: Direct connection, induction and clamp three modes are automatically converted

Battery: 14.8V built-in lithium battery pack

Operating temperature: -20°C~+50°C

Dimensions: 348mm× 228mm×84mm

Weight: 2.5Kg (including battery)

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
