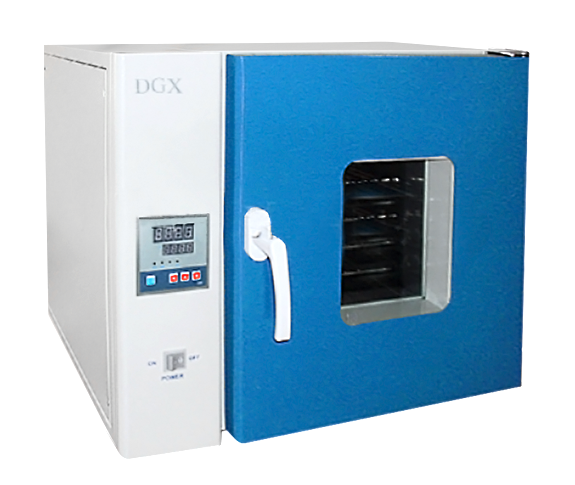

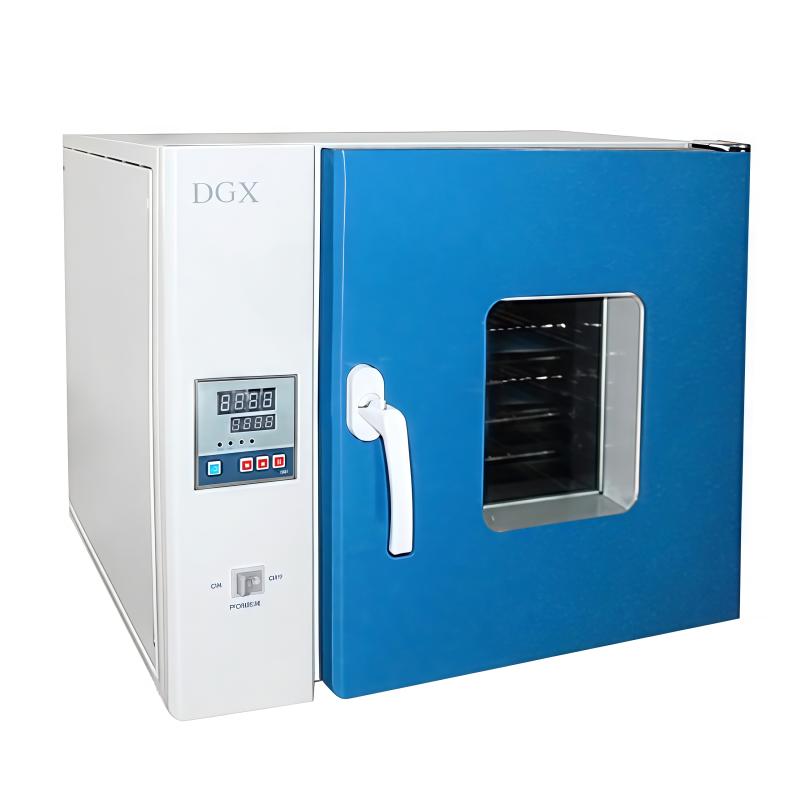

Guohua DGX-20 electric heating constant temperature Forced Air Drying Oven

The electric Forced Air Drying Oven is widely used in electromechanical, chemical, plastic, light industry and other industries and research institutes for baking, drying, curing, heat treatment and other convenient heating of various products and samples. Not suitable for volatile items, so as not to cause an explosion.

The constant temperature Drying Oven uses a fan for air forced convection technology.

Features

1. Microcomputer controller with over-temperature alarm function, stable and reliable in use.

2. It is convenient for observation. When the door is opened, the breeze circulation heating will stop automatically.

The shell of the instrument is welded by high-quality cold plate, and the internal working chamber is made of stainless steel or high temperature resistant plastic spraying. The latest good glass wool is used for heat insulation. The observation window on the door is double tempered glass, which is convenient and safe. There is a heat-resistant silicone rubber or asbestos rope between the working chamber and the door of the box to seal. The operation functions are concentrated on the front of the box, and the operation is relatively simple, such as: power switch and temperature control, etc.

The stable heating system is composed of fans, electric heaters, air ducts and temperature controllers. When you turn on the power and the fan starts to work, the heat generated by the electric heating tube is released through the ventilation channel, and the constant temperature is achieved through a continuous cycle like this.

The temperature controller is a microcomputer intelligent digital display temperature control device, which has a professional heating function. Can effectively suppress the maximum limit temperature. It also has autonomous control function, high temperature control accuracy, protection device and tracking alarm function when setting temperature.

completeness-built unit X1, operation manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
