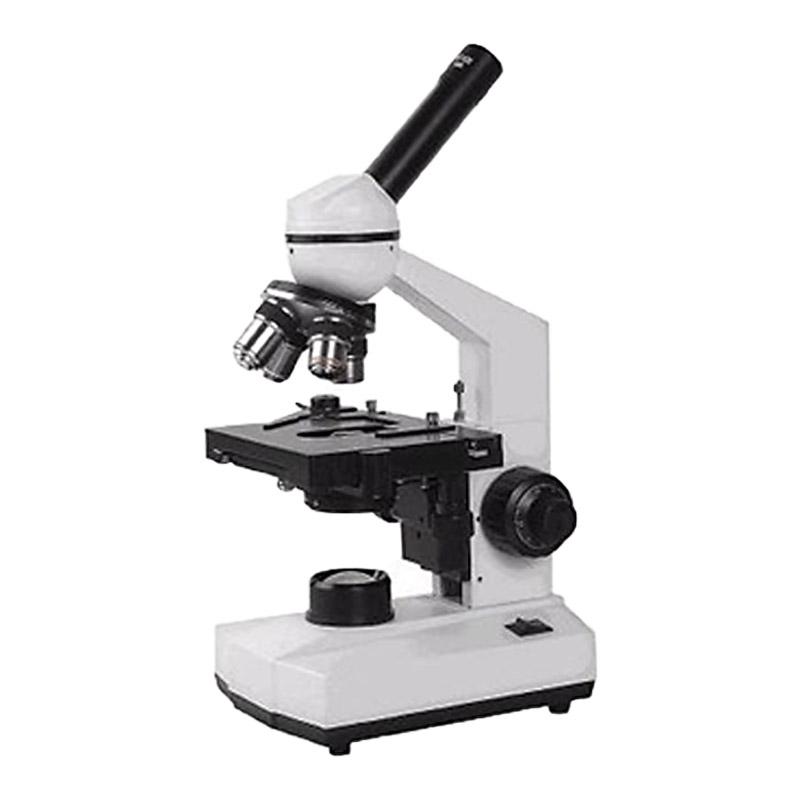

TEELEN XSP-1CA Monocular Biological Microscope
Monocular Biological Microscope double-decked platform 40-1600 times Electric Light source
Teelen-
Varnishing XSP-BM-8CAP Tablet Microscope with 9.7 inch large screen tablet
$ 1813.00 -
TEELEN UC300 Microscope imagery camera
Login -
Varnishing BM-PHD Computer Phase Contrast Microscope
$ 2256.00 -
TEELEN MC500Pro Fluorescence Microscope imagery camera
Login -
Anyty 3R-WM461PCTV Digital Microscope 600X
$ 1540.00

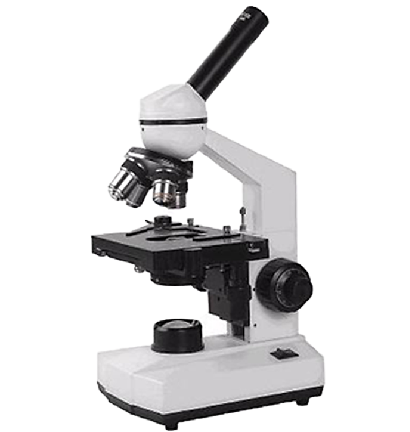

Introduction
This type of microscope can be magnified to 40-1600 times by single-eye four-hole conversion. It is one of the instruments required by major scientific research, colleges and laboratories.
It has the advantages of complete functions, clear imaging, and high cost performance. It is suitable for the three major routine tests of the human body and the analysis and tests of small units such as agriculture, forestry, and fish farming. Total magnification: 40-1600X
Functions and Features
1. Traditional model, stable quality and high cost performance.
2. The adjustable Abbe condenser is adopted, which has a large adjustment range of focusing and good contrast.
3. The planetary coaxial coarse and fine focus adjustment device is adopted, and the focus is comfortable and stable.
4. A double-layer mechanical stage with graduated scales is adopted, and the handwheel is adjusted vertically and horizontally on the same axis, making the operation more convenient.

Teelen XSP-1CA Monocular Biological MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| Flat field eyepiece | WF10X/Φ18 WF10X/Φ20 |
| Avoiding color difference objective | 4X/0.10, 10X/0.25, 40X/0.65 (spring), 100X/1.25 (oil, spring) |
| Total Magnification | 40X~1600X |
| observation head | Hinged 45 ° tilt, 360 ° swirl/spin |
| converter | Four holes (inward ball positioning) |
| Coarse fine-tuning focusing range | 30Mm fretting grid value: 2um coarse fretting coaxial focusing, coarse elastic adjustable, with locking and limit |
| stage | Simple single-layer Platform size 115X120mm Moving range 60X20mm Vernier grid value 0.1mm |
| Mechanical barrel length | 160mm |
| pupil distance | 55-75mm |
| condenser | 1.25NA Abbe condenser, variable light bar with color filter (up and down lift) |
| lighting system | 220V halogen lamp, tungsten halogen bulb 6V20W |
| Net Weight | 4.6 kilograms |
| Gross Weight | 3.8 kg |
| Instrument size | 22X36X36.5(cm) |
| Packaging Dimensions | 33.5X28X59(cm) |
Teelen XSP-1CA Monocular Biological Microscope Packing list
machine X1, operation manual X1, warranty card X1, certificate of conformity X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
