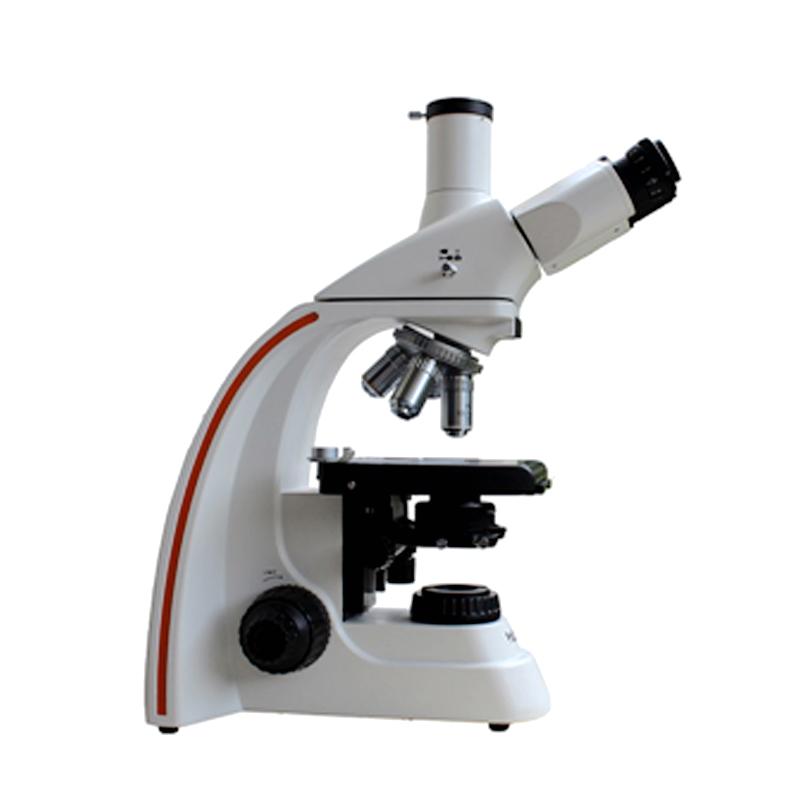

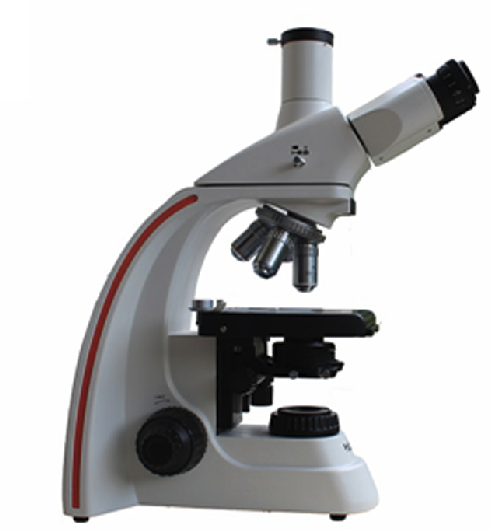

TEELEN TL2800A Research Grade Trinocular Microscope
Research-grade Biological Microscope Optical inspection system 40-1000 times LED Light source
Teelen
TL2800A
-
TEELEN XTL-12B Inverted Metallurgical Microscopy
Login -
TEELEN XTL-20B Metallurgical Microscopy Infinite High Light Reuters reflection Double Illuminant
$ 1763.00 -
TEELEN DXS-1 Inverted Biological Microscope
Login -
TEELEN XSP-1CA Monocular Biological Microscope
Login -
TEELEN MC500Pro Fluorescence Microscope imagery camera
Login
Introduction
TL2800 series biological microscope is equipped with infinity plan achromatic objective lens and wide-field eyepiece. It has the characteristics of beautiful appearance, clear imaging, wide field of view and convenient operation. It can be widely used in biology, medicine, industry, agriculture and other fields. Desirable instrument for teaching, scientific research and other units
Features
Excellent optical performance can be provided by adopting excellent optical system.
The streamlined design concept, matched with soft colors, makes the microscope more beautiful.
The ergonomic design meets the requirements of human engineering, which makes the operation more convenient and comfortable, and the space is wider.
Teelen TL2800A Research Grade Trinocular MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| eyepiece | Large field of view WF10X (field number of viewing) |
| Infinity flat field objective | PL 4X/0.10 working distance: 19.8 mm |
| Eyepiece tube | TL2800B HBG: double eyepiece (tilted 30 °) with adjustable eye point height; TL2800A HBT: triple eyepiece (tilted 30 °) with adjustable eye point height |
| TL2800A HBT | Three eyepieces (tilted 30 °), adjustable eye point height |
| Focusing system | Coaxial coaxial fretting focusing, with locking and limiting device, fretting grid value: 2 μm. |
| converter | Four holes (inward ball positioning) |
| stage | Double-decked mechanical mobile: 193mmX155mm, moving range: 75mmX50mm |
| Abbe condenser | N.A.1.25 can be lifted up and down |
| Color filter | Blue Color Filter, Frosted Glass |
| collector | There is a built-in field diaphragm in the light collector. |
| Light source | High power bright white LED, adjustable luminance |
Teelen TL2800A Research Grade Trinocular Microscope Packing list
machine X1, operation manual X1, warranty card X1, certificate of conformity X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
