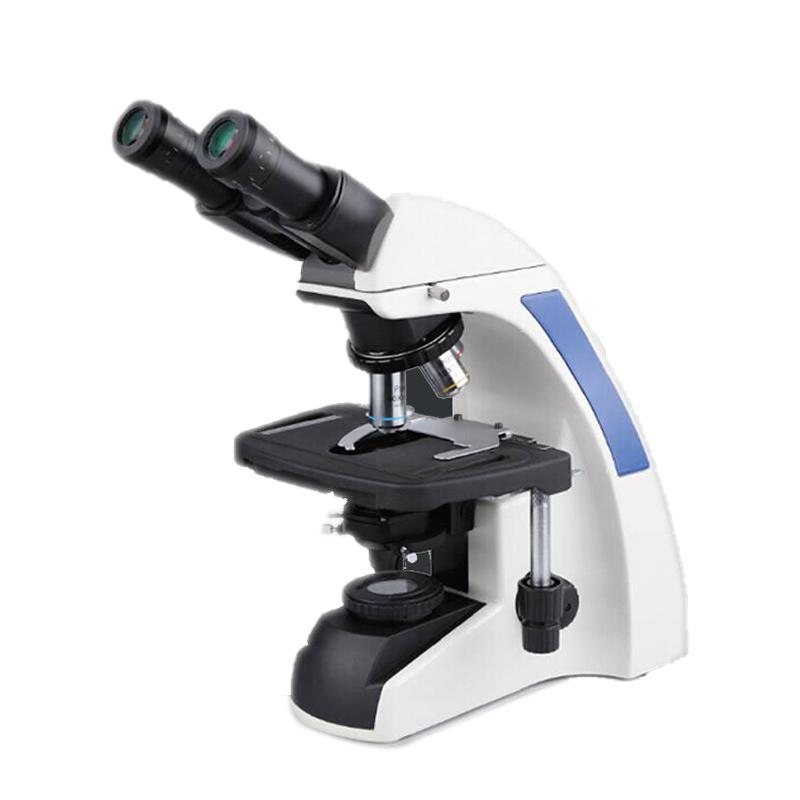

TEELEN TL3200A Research Grade Binocular Biological Microscope
Research Grade Binocular Biological Microscope Infinity Optical inspection system 40-1600 times
Teelen
TL3200A
-
Electron Microscope (EM) LD6182 TQC 20~200x Portable Electron Microscope (EM)
$ 615.00 -
TEELEN XP-200 Monocular Simple Polarizing Microscope
Login -
VARNISING BM-SG10D Computer Research Microscope
$ 4375.00 -
VARNISING XSP-BM-8CAD Microscope with 5 million pixel CMOS camera
$ 1521.00 -
TEELEN CPH-200 Differential Microscope
Login
Instrument Introduction
TL3200 series biological microscope is equipped with infinity plan achromatic objective lens and wide-field eyepiece. It has the characteristics of beautiful appearance, clear imaging, wide field of view and convenient operation. It can be widely used in biology, medicine, industry, agriculture and other fields. Desirable instrument for teaching, scientific research and other units.
Instrument performance
Excellent optical performance can be provided by adopting excellent optical system.
The streamlined design concept, matched with soft colors, makes the microscope more beautiful.
The ergonomic design meets the requirements of human engineering, which makes the operation more convenient and comfortable, and the space is wider.
Using high-power 3WLED cold light source lighting
Teelen TL3200A Research Grade Binocular Biological MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| Optical inspection system | Optical inspection system |
| observation head | Hinged binocular head, 30 degrees tilt, pupil distance 48mm-75mm |
| eyepiece | Large field of view eyepiece WF10X/F.N.22mm; large field of view eyepiece WF16X/F.N.15mm |
| converter | Inward-looking four-hole converter |
| objective lens | Infinity high contrast flat field color difference objective 4X 10X 40X 100X (oil) |
| Phase contrast device | Infinity phase contrast flat field color difference objective 4X 10X 40X 100X (oil) centering telescope |
| condenser | NA1.25 |
| Focusing system | Coaxial coarse fine-tuning focusing mechanism, fine-tuning grid value 0.001mm, coarse stroke 37.7mm per turn, fretting stroke 0.1mm per turn, focusing range 24mm |
| stage | Double-decked movable platform, graphite surface, size 216x150mm, movement range 75mmx55mm |
| Cora lighting | External Down Lighting System 3W/LED Lighting |
Teelen TL3200A Research Grade Binocular Biological Microscope Packing list
machine X1, operation manual X1, warranty card X1, certificate of conformity X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
