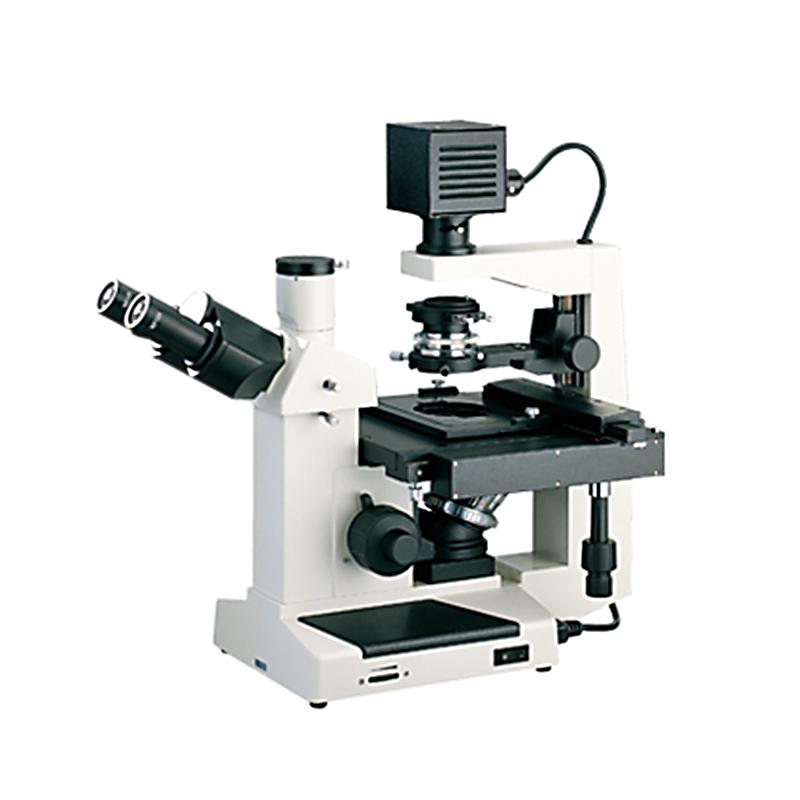

TEELEN DXS-2 Inverted Biological Microscope

Instrument Introduction

DXS-2 inverted microscope is equipped with wide-field eyepieces, long working distance plan achromatic objective lens and super long working distance condenser, and is equipped with phase contrast device, which can observe unstained transparent living organisms in culture dishes and culture bottles. The instrument is especially suitable for microscopic research on living cells and tissues, fluids, sediments, etc., and can be used by scientific research, universities, medical care, epidemic prevention, agriculture and animal husbandry and other departments.

Features

1. Equipped with wide-field eyepieces and long-distance plan achromatic objectives, the field of view is large and clear

2. Equipped with phase contrast device, including super long-distance phase contrast condenser, phase contrast objective lens, and centering telescope

3. Coarse and fine motion coaxial focusing mechanism, coarse motion adjustable, with locking and limit device, fine motion grid value: 2μm

4. 6V30W halogen lighting, adjustable brightness


machine X1, operation manual X1, warranty card X1, certificate of conformity X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
