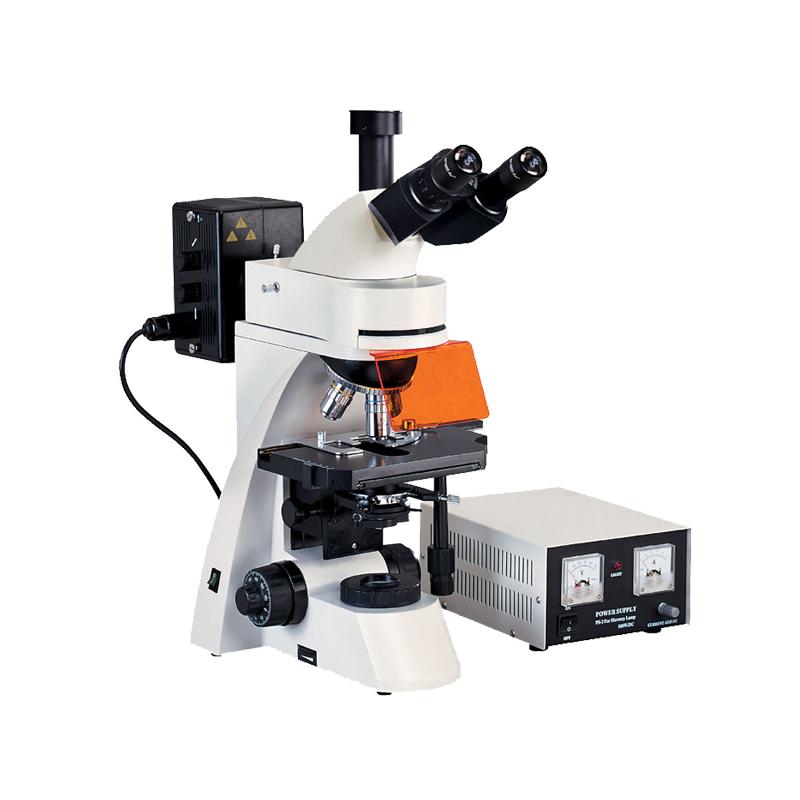

TEELEN TL3001 Upright Fluorescence Microscope

Introduction

It is suitable for fluorescence microscopy and transmission bright field observation. It adopts infinity plan achromatic fluorescence objective lens without chromatic aberration of magnification and wide-field eyepiece. The optical system has clear and bright imaging and wide field of view. The ergonomic body design makes you more comfortable and relaxed during operation. It is a desirable instrument for biology, cytology, oncology, genetics, immunology and other research work, and can be used by scientific research, colleges and universities, medical treatment and epidemic prevention and other departments.

Features

Adopt infinity optical system and modular function design.

Equipped with a high-quality infinity plan achromatic fluorescence objective lens, the imaging is clearer and brighter.

Wide-angle flat-field eyepiece: field of view diameter Ф22mm.

Coarse and fine coaxial focusing mechanism, with locking and limit device, fine movement division value: 2μm.

Transmitted lighting system: Built-in field of view light bar, 6V30W halogen lighting, heat sink installed, brightness adjustable.

Epi-illumination system: 100W/DC high pressure mercury lamp, power box 220V/110V optional.

The trinocular lens tube can freely switch between visual observation and microphotography, and can be 100% light-transmitting during photography, which is suitable for low-light microscopic image shooting.

machine X1, operation manual X1, warranty card X1, certificate of conformity X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
