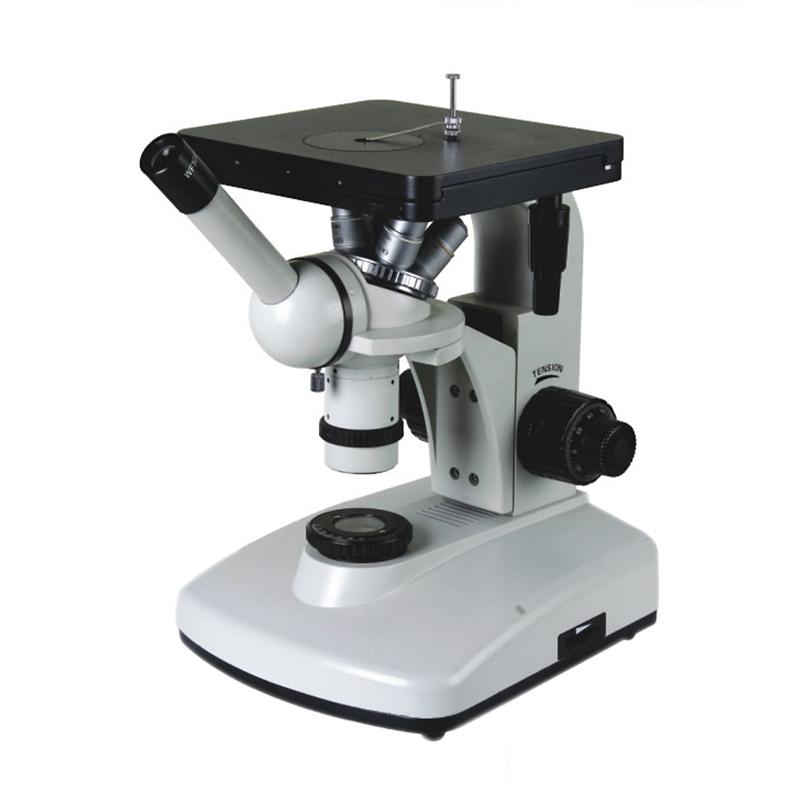

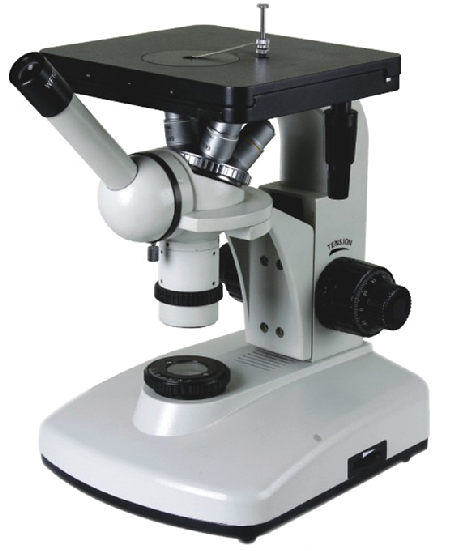

TEELEN 4XI Monocular Inverted Metallurgical Microscopy
Monocular Inverted Metallurgical Microscopy 100-1250 times
Teelen
4XI
use
Metallographic microscopes are used to identify and analyze the structure of various metals and alloy materials, and are widely used in factories or laboratories for the identification of casting quality; the inspection of raw materials or the analysis of metallographic structures after material processing; and surface spraying, etc. Research work on surface phenomena.
This instrument can be equipped with a photographic device for microphotography.
Teelen 4XI Metallurgical MicroscopySpecifications
| LIST | VALUE |
|---|---|
| objective magnification | 10X, 40X (flat field), 100Xoil |
| Objective numerical aperture | 0.25、0.65、1.25 |
| Objective working distance | 7.31mm、0.65mm、0.37mm |
| Eyepiece category | Flat field eyepiece |
| Eyepiece magnification | 10X、12.5X |
| Eyepiece field of view diameter (mm) | 18、15 |
| Total Magnification | 100X~1250X |
| Mechanical barrel length | 160mm |
| Fretting focus | Adjustment range: 7mm scale: 0.002mm |
| Coarse fine-tuning focusing range | 7mm |
| Photography eyepieces | 5X, 6.3X (optional) |
| lighting system | 6V/12W Bromine Tungsten Lamp |
| Instrument Weight | 5KG |
| Packaging Dimensions | 360*246*350mm |
Teelen 4XI Metallurgical Microscopy Packing list
machine X1, operation manual X1, warranty card X1, certificate of conformity X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
