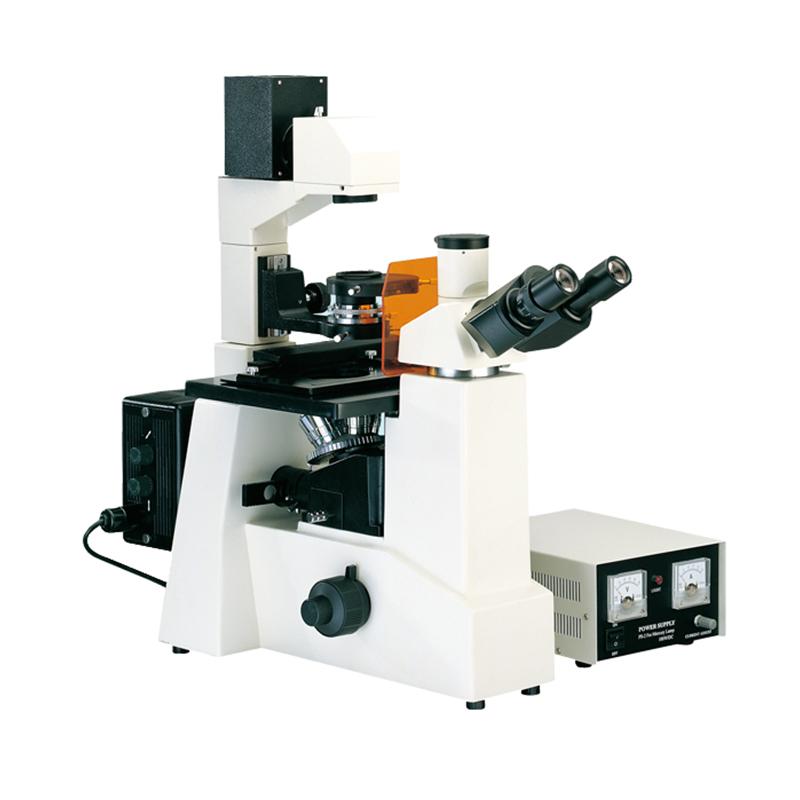

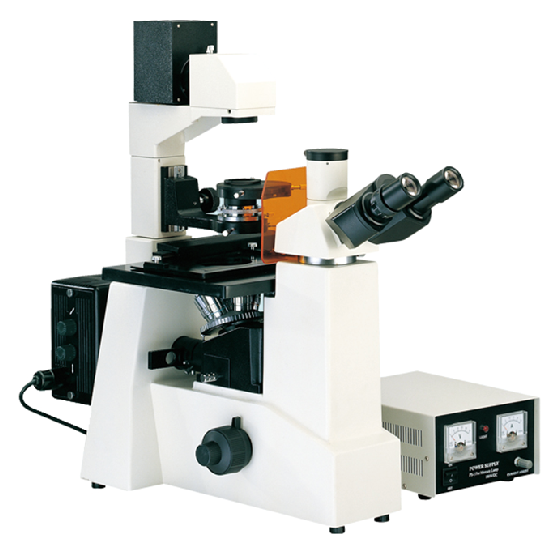

TEELEN DXY-1 Inverted Fluorescence Microscope

Instrument Introduction

DXY-1 inverted fluorescence microscope is composed of an inverted microscope and an epifluorescence microscope. The instrument is equipped with a long working distance plan achromatic objective lens and a large field eyepiece. When inverted observation is equipped with a long working distance plan phase contrast objective lens and a phase contrast device. Condenser with extra long working distance, the excitation filter group can be switched during fluorescence observation. The instrument has the characteristics of clear imaging, wide field of view, compact structure, beautiful appearance, and comfortable operation. It is mainly suitable for microscopic observation of living cells and tissues, fluids, and sediments in culture bottles or culture dishes, and can also be used for unstained Fluorescence microscopy of clear living and fluorescent sections. It is a desirable instrument for research work in biology, cytology, oncology, genetics, etc. It can be used by scientific research institutes, medical care, epidemic prevention, agriculture and animal husbandry and other departments.

Features

Equipped with wide-field eyepieces and long working distance plan achromat objectives, the field of view is large and clear.

Coarse and fine motion coaxial focusing mechanism, adjustable coarse motion, with locking and limit device, fine motion scale value: 2μm.

The moving mechanism of the stage is detachable.

Equipped with phase contrast device, including ultra-long working distance phase contrast condenser, phase contrast objective lens, and centering telescope.

Equipped with a fluorescence device, with four sets of fluorescence filter sets.

The transmitted lighting adopts 6V 30W halogen lamp with adjustable brightness; the fluorescent epi-illumination adopts 100W high-pressure mercury lamp with an external power box.

machine X1, operation manual X1, warranty card X1, certificate of conformity X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
