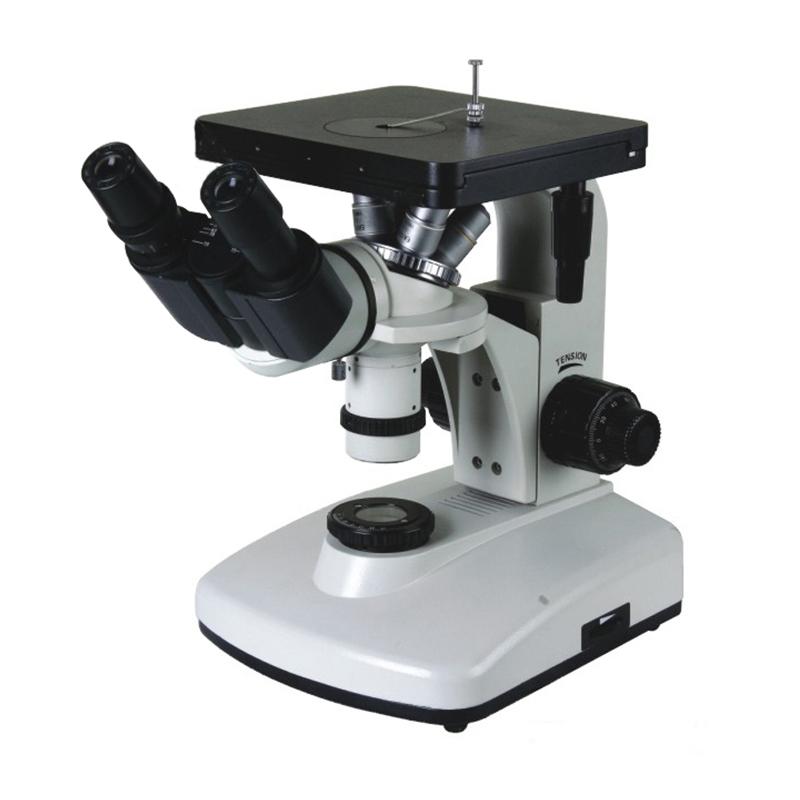

TEELEN 4XB Binocular Inverted Metallurgical Microscopy
Binocular Inverted Metallurgical Microscopy 100-1250 times
Teelen
4XB
-
TEELEN XTL-12B Inverted Metallurgical Microscopy
Login -
VARNISING BM-20APH UIS Microscope luminance can be adjusted continuously
$ 2141.00 -
Varnishing XSP-BM-2CBA Microscope Optical inspection Magnification 40X-1600X
$ 480.00 -
TEELEN DXS-3 Inverted Biological Microscope
Login -
Varnishing BM-17AD Computer UIS Microscope 40X-1000X Magnification
$ 1678.00
Instrument Instructions

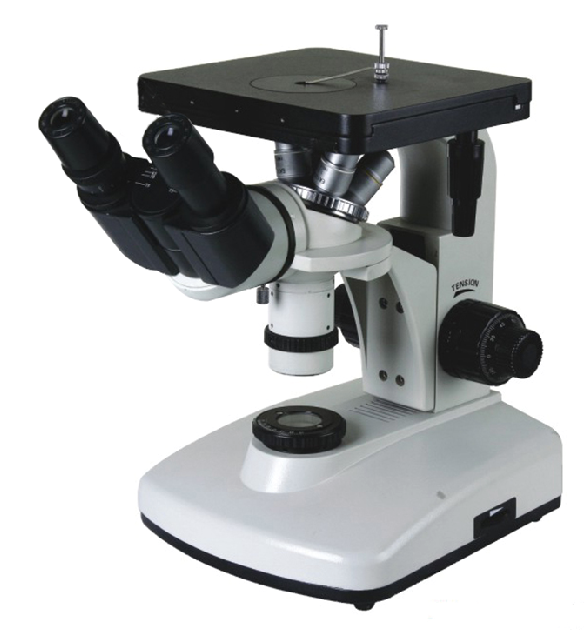

The 4XB metallurgical microscope can be connected to a computer through a color camera and image acquisition equipment to form a computer-type binocular inverted metallographic microscope 4XBC, and can also be connected to a digital camera to form a digital metallographic microscope 4XBD, which can observe pictures through a computer or digital camera, and The observed pictures can be displayed on a computer screen or a digital camera, and can also be printed in color by a printer.
Teelen 4XB Metallurgical MicroscopySpecifications
| LIST | VALUE |
|---|---|
| Eyepiece category | Flat field eyepiece |
| Eyepiece magnification | 10X field of view diameter: 18mm; 12.5X field of view diameter: 15mm |
| Objective lens type | Eliminate color difference objective, semi-flat field eliminate color difference objective, eliminate color difference objective |
| Total Magnification | 100X~1250X |
| Mechanical barrel length | 160mm |
| Coarse fine-tuning focusing range | Focusing range: 7 mm scale: 0.002 mm |
| Coarse fine-tuning focusing range | 7mm |
| Mechanical workbench | 75 * 50Mm |
| lighting system | 6V 12w Bromine Tungsten Lamp |
| load object | Φ：10，20，42 |
| Instrument Weight | 5 kg |
| Packaging Dimensions | 360 * 246 * 360 mm |
Teelen 4XB Metallurgical Microscopy Packing list
machine X1, operation manual X1, warranty card X1, certificate of conformity X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
