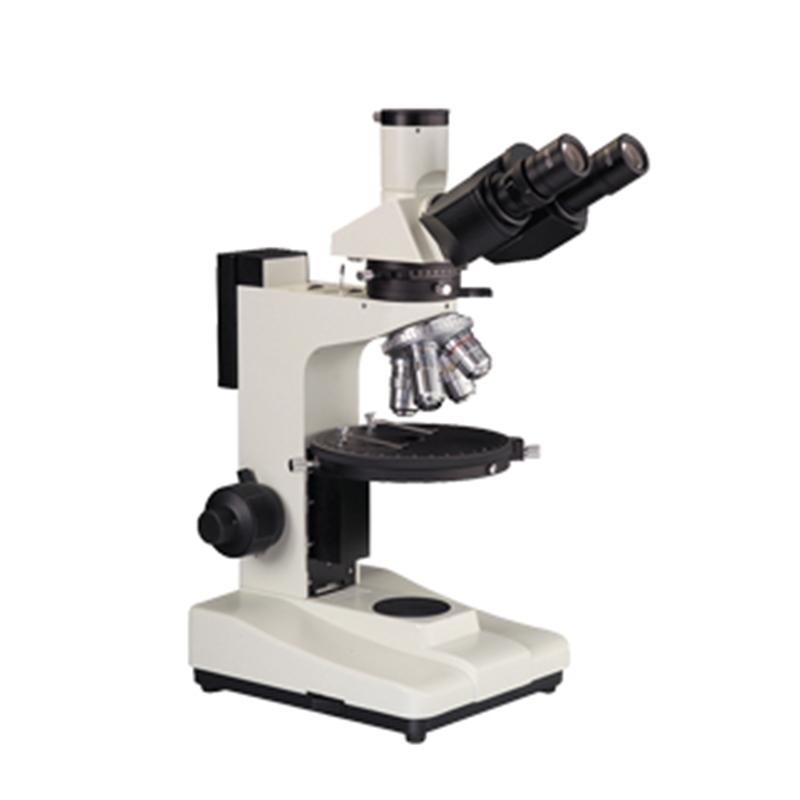

TEELEN TL-1503 Polarizing Microscope

Introduction

TL-1503 epi-polarizing microscope is the required instrument for the research and identification of birefringent substances by using the polarization characteristics of light. Used for single polarized light observation, crossed polarized light observation and conoscopic observation. It is widely used in the research and inspection of geology, chemical industry, medical treatment, pharmaceuticals and other fields. It can also observe the crystal phase of liquid polymer materials, biopolymers and liquid crystal materials. It is a desirable instrument for research and teaching in scientific research institutions and colleges and universities. .

Features

Optional diascopic, epi-illumination or trans-reflective illumination

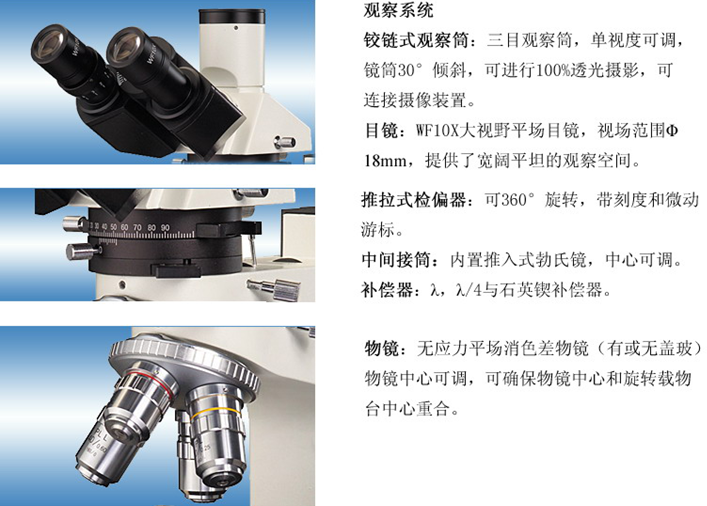

Equipped with stress-free flat-field objective lens (center adjustable) and wide-field eyepiece

Coarse and fine motion coaxial focusing mechanism, coarse motion adjustable, with limit locking device, fine motion scale value: 2μm

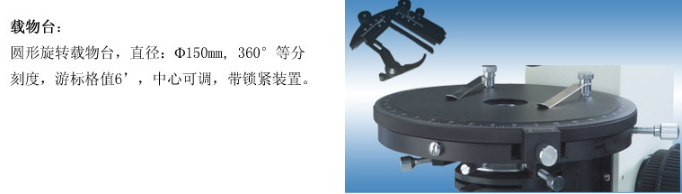

Rotary stage, 360° equal scale, vernier grid value 6', adjustable center, with locking device, the effective vertical stroke of the worktable can reach 30mm

Wide Voltage power supply (85-265V 47-60HZ). 6V20W halogen lighting, adjustable brightness

machine X1, operation manual X1, warranty card X1, certificate of conformity X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
