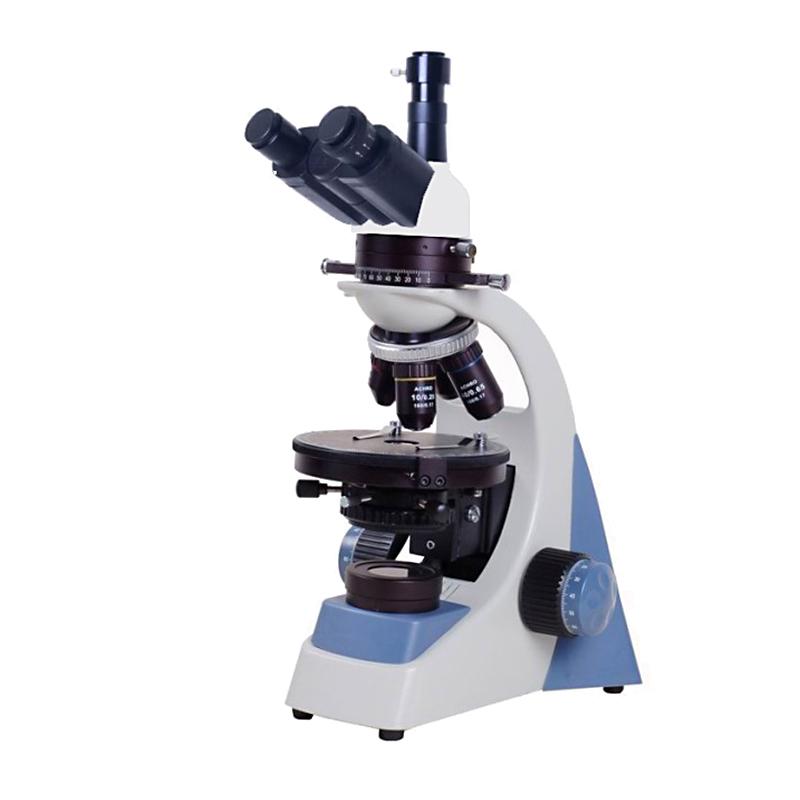

TEELEN TL-600B Binocular Polarizing Microscope

Binocular simple polarization Microscope simple polarization with optical path compensator 40-1000 times

Brand

SKU: NB025510

Teelen

Model

TL-600B

Price

Please contact customer service

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

Teelen shopSE

Information

Datasheet RFQ Contract

What else did others buy

Genuinegoods

Teelen TL-600B Polarizing MicroscopeOverview
Specifications
Comments
FAQs

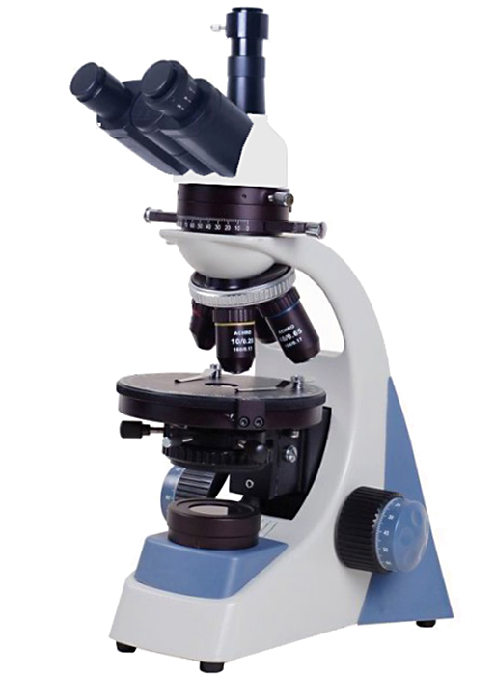

TL-600B

Polarizing Microscope

Binocular simple polarization Microscope simple polarization with optical path compensator 40-1000 times

Instrument Introduction

TL600B binocular polarizing microscope can be used for routine detection and teaching transmission polarizing microscope, widely used in crystallography, analytical chemistry, medicine, biological science, environmental science, pharmaceuticals, toxicology and other fields; whether it is single polarized light, crossed polarized light or cone Optical observation, can provide clear, sharp images.

Teelen TL-600B Polarizing MicroscopeSpecifications

LIST	VALUE
objective lens	45mm DIN消色差物镜4X，10X，40X（S），100X（S，Oil）；
Total Magnification	40X~1000X
stage	Diameter φ 120mm, 360 ° rotating load round table, scale value 1 °, vernier value 6 ′;
condenser	N.A.1.25 Abbe Condenser Lens; Should 2-Should 30mm Variable Light Bar with Should 32 Color Filter;
Focusing system	Coarse fretting coaxial, focusing range 14mm, fine-tuning Accuracy 0.01mm;
Detector	0 ° -90 ° rotating polarizer can be removed from the optical path;
compensator	Optical path compensator: lambda test plate (top red), 1/4 lambda test plate
polarizer	Polarization device located on the collector mirror, 360 ° rotatable; lambda test plate (top red), 1/4 lambda test plate
Light source	Built-in dimming 3.5V/1W high luminance LED light.
eyepiece	Wide field of view flat field eyepiece: WF10X/18 pair, wide field of view flat field with 0.1mm cross reticle eyepiece: WF10X/18 one;
observation head	Hinged binocular head, the pupil spacing can be adjusted by 55-75mm; 30 degrees tilt, 360 degrees can be turned;

Teelen TL-600B Polarizing Microscope Packing list

machine X1, operation manual X1, warranty card X1, certificate of conformity X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Can this be connected to a computer?

[A]

A camera needs to be added.

[Q]

Can this TEELEN Polarizing Microscope correspond to SY/T0442?

[A]

Yes, please refer to the NBchao standards page for specific standards.
