use
XP-200 monocular polarizing microscope is the required instrument for the research and identification of birefringent substances by using the polarization characteristics of light. Polarizing microscopes are widely used in medicine, such as observing the structural details of crystal inclusions in teeth, bones, hair, and living cells, nerve fibers, animal muscles, and plant fibers, and analyzing the denaturation process. The polarizing microscope can also observe the fine structure of the crystallization of various salts in inorganic chemistry that cannot be seen in natural light. XP-200 monocular simple polarizing microscope is mainly used in teaching and laboratories.

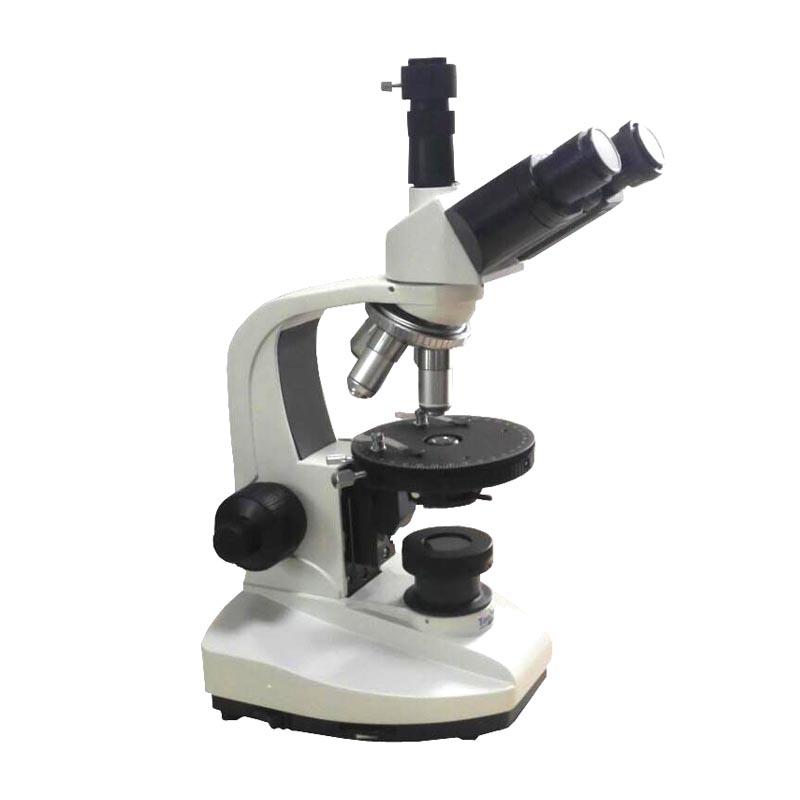

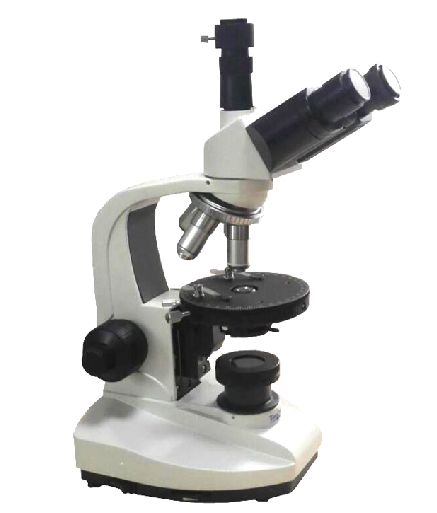

Teelen XP-200 Polarizing MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| observation head | Single head 45 degree tilt |
| eyepiece | WF10X/18 (pair) |
| objective lens | 4X dry mirror, numerical aperture 0.10NA working distance 17.5mm; 10 × dry mirror numerical aperture 0.25NA working distance 6.6mm; 40 × spring dry mirror, numerical aperture 0.65NA working distance 0.64mm; 100 × spring oil mirror, numerical aperture 1.25NA working distance 0.19mm |
| Total Magnification | 40X~1000X |
| converter | Inward tilting four-hole objective lens converter |
| Mechanical barrel length | 160 mm |
| circular stage | Diameter φ 120mm, 360 ° rotating load circle table, scale value 1 °, vernier value 6 ′ |
| Focusing system | Coaxial coarse fine-tuning with focusing handwheel and parfocal lock, adjustment range: 25 mm Fine-tuning grid value: 0.002mm |
| Abbe condenser | N.A.1.25 Abbe Condenser Lens; Should 2-Should 30mm Variable Light Bar with Should 32 Color Filter |
| Polarizing device | Polarizer with swirling/spinning type and built-in polarizer for observation head |
| lighting system | Built-in dimming 6V20W halogen lamp |
| Power | 110-220V/50-60Hz |
Teelen XP-200 Polarizing Microscope Packing list
machine X1, operation manual X1, warranty card X1, certificate of conformity X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
