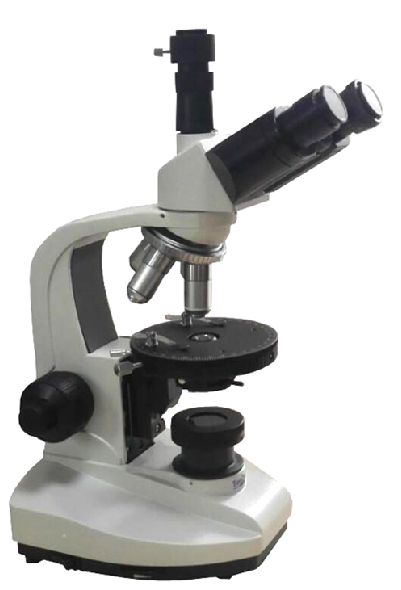

TEELEN XP-200B Trinocular Simple Polarizing Microscope
Trinocular Simple Polarizing Microscope with polarizing and simple polarizing device, magnification 40-1600 times
Teelen-
Varnishing XSP-BM-1CAP Video Microscope with 7-inch display
$ 447.00 -
TEELEN 4XCE Computerized Trinocular Inverted Metallurgical Microscopy
Login -
Varnishing BM-62XCD Computer reflection Polarizing Microscope
$ 4936.00 -
ANYTY 3R-YD3D1200S Super Depth of Field 3D Microscope Laboratory OpticalMicroscopy 600 times
Login -
TEELEN TL3201-LED Upright Fluorescence Microscope
Login
use
XP-200B Trinocular Polarizing Microscope is the required instrument for the research and identification of birefringent substances by using the polarization characteristics of light. Polarizing microscopy has a wide range of applications, such as observing the structural details of crystal inclusions in teeth, bones, hair, and living cells, nerve fibers, animal muscles, plant fibers, etc., and analyzing the denaturation process. The polarizing microscope can also observe the fine structure of the crystallization of various salts in inorganic chemistry that cannot be seen in natural light. Polarizing microscopes are mainly used in teaching and laboratories.

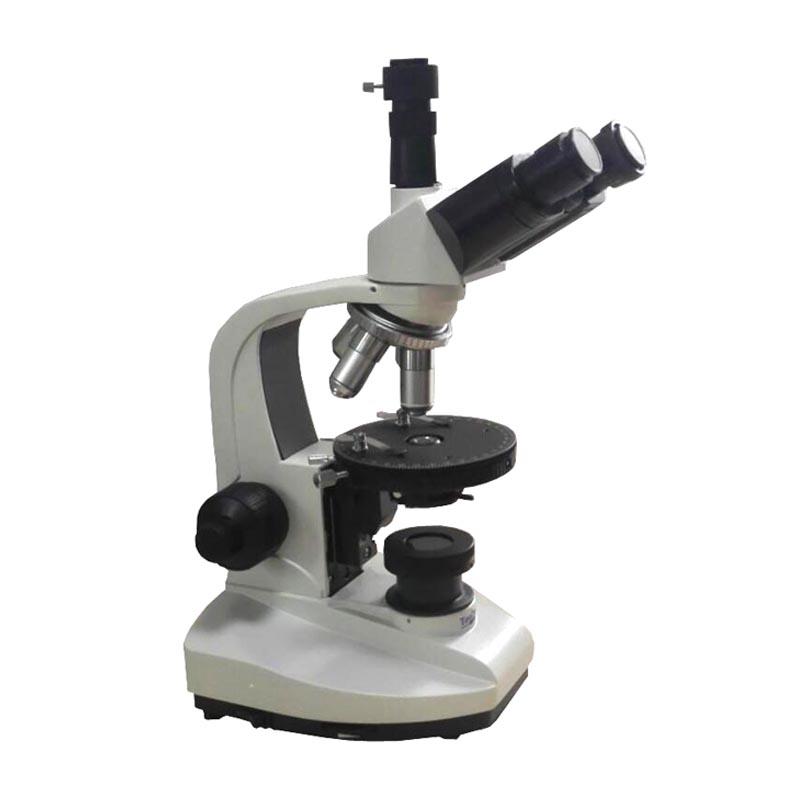

Teelen XP-200B Polarizing MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| observation head | Three head (53mm-75mm) |
| eyepiece | WF10X/18 (pair) |
| objective lens | 4X dry mirror, numerical aperture 0.10NA working distance 17.5mm; 10 × dry mirror numerical aperture 0.25NA working distance 6.6mm; 40 × spring dry mirror, numerical aperture 0.65NA working distance 0.64mm; 100 × spring oil mirror, numerical aperture 1.25NA working distance 0.19mm |
| Total Magnification | 40X~1000X |
| converter | Inward tilting four-hole objective lens converter |
| Mechanical barrel length | 160 mm |
| circular stage | Diameter φ 120mm, 360 ° rotating load circle table, scale value 1 °, vernier value 6 ′ |
| Focusing system | Coaxial coarse fine-tuning with focusing handwheel and parfocal lock, adjustment range: 25 mm Fine-tuning grid value: 0.002mm |
| Abbe condenser | N.A.1.25 Abbe Condenser Lens; Should 2-Should 30mm Variable Light Bar with Should 32 Color Filter |
| Polarizing device | Polarizer with swirling/spinning type and built-in polarizer for observation head |
| lighting system | Built-in dimming 6V20W halogen lamp |
| Power | 110-220V/50-60Hz |
Teelen XP-200B Polarizing Microscope Packing list
machine X1, operation manual X1, warranty card X1, certificate of conformity X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
