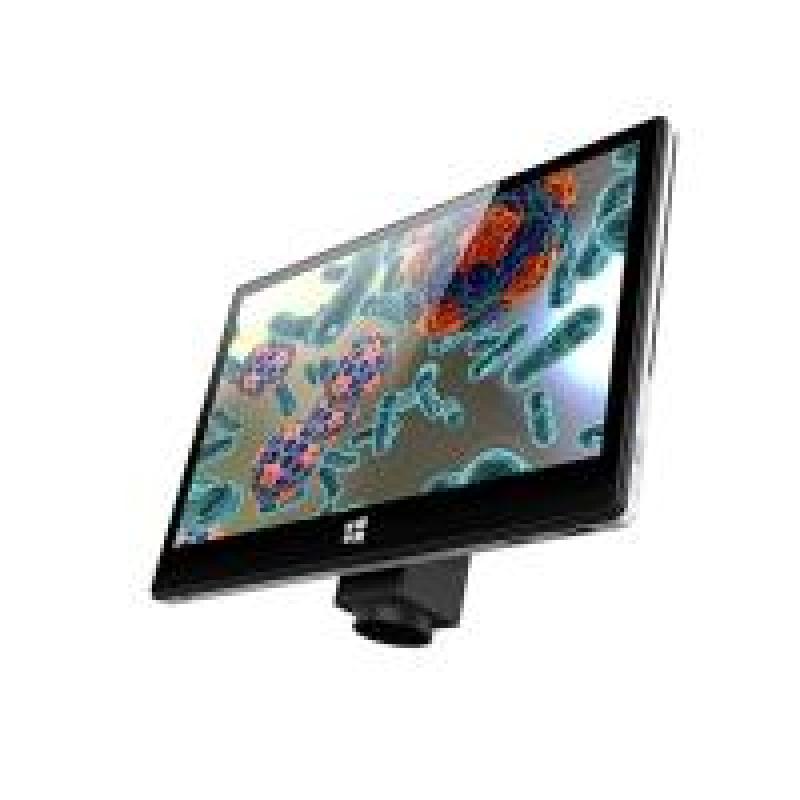

TEELEN DM5018 Android Tablet Smart Industrial Camera with Screen
Android Operating system comes with imagery, photography and measurement software
TeelenFeatures
1. The built-in measurement system can perform length measurement, geometric measurement of the distance between two circle centers and other measurement systems, and the data is accurate to 1/100 micron, and even cells as small as 1/100 micron can easily achieve accurate measurement
2. Click the button to directly record and shoot 1080P 30FPS videos. The video files are stored in the built-in hard disk and can also be expanded to an external TF card. Users can directly playback and observe.
3. The start-up screen will display functions such as taking photos, recording videos, and setting, and the direct operation is simple and easy to use by clicking
Teelen DM5018 Microscope dedicated cameraSpecifications
| LIST | VALUE |
|---|---|
| Sensor size | 1/2.5 inches |
| Effective Pixel | 2592 (H) * 1944 (V), 5M pixels |
| resolution | 30fps@1024*768 |
| output interface | USB2.0, HDMI, TF card, built-in WIFI |
| pixel size | 2.2μm×2.2μm |
| Power | DC-12V/2A |
| UI interface | Comprehensive digital, mouse operation, user-friendly settings |
| marking function | Point coordinates, crosshairs, coordinate systems, text annotations |
| Length measurement | Line length, polyline length, Linear dispersion length, Parallel line spacing, Point line spacing |
| Distance between two circles | Radius fixed circle, two point fixed circle, three point fixed circle |
| Geometric measurement | Line segment length, radius fixed circle, two point fixed circle, three point fixed circle, concentric circle |
| geometric area | Polygon, Cube |
| Snapshot | Support 5 million static photography |
| video recording | Support 1080P video recording |
| Measurement system | S-eye |
| Dimensions | 9.7 inches |
| Single machine Weight | ≈600g |
| Standard Accessories | DC-12V |
Teelen DM5018 Microscope dedicated camera Packing list
machine X1, operation manual X1, warranty card X1, certificate of conformity X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
