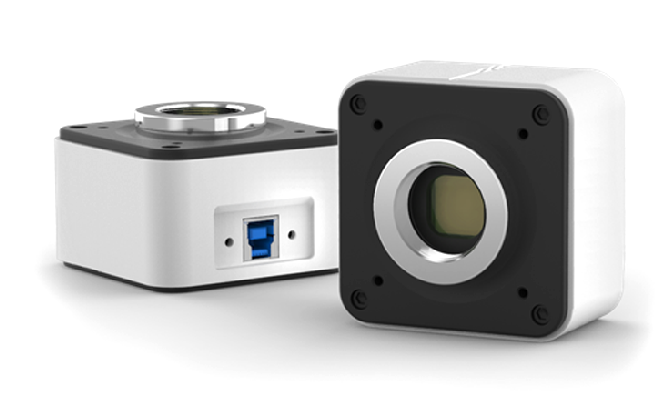

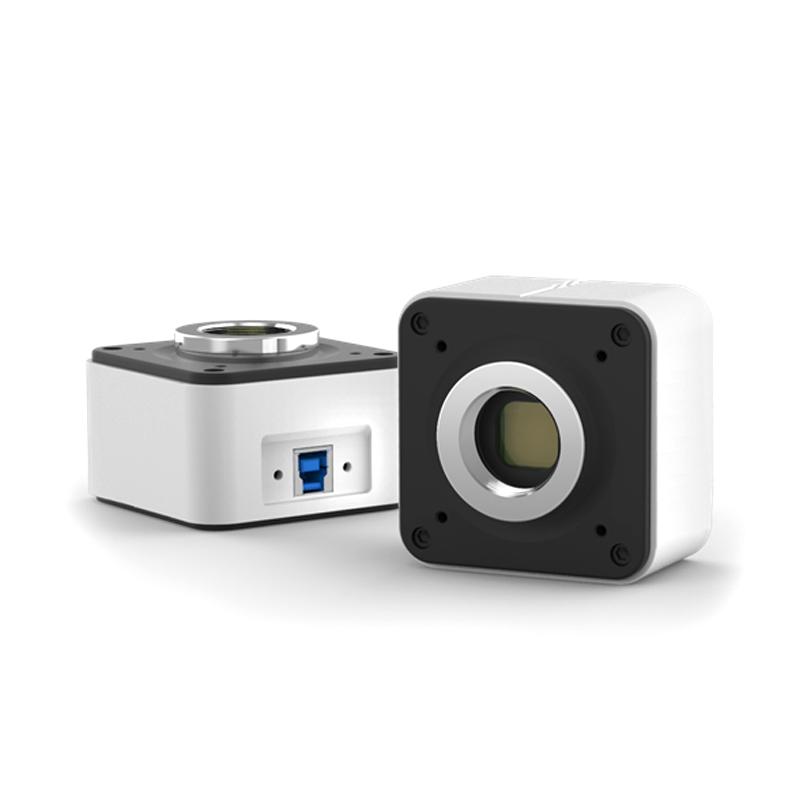

TEELEN MC2000 Industrial Camera

Core functions

"Real-time" image stitching

The MC2000 series industrial cameras are equipped with Mosaic 2.0, the new computational imaging computing software, which provides you with the "real-time image stitching" function. Within a few seconds of moving the stage, a large stitching image can be generated at the same time, which is light, smooth, and worry-free!

"Real-time" Depth Fusion

MC2000 series industrial cameras also provide real-time depth-of-field fusion function. When turning the focus ring to shoot different depth-of-field points, a clear image with large depth-of-field can be generated, which is fast, accurate and effective!

Efficient image acquisition-editing-measurement-report output

Starting from the user's operation experience, it provides a complete workflow of image acquisition-editing-measurement-report output, optimizes the operation process, greatly saves your operation time and improves your work efficiency!

MC2000 can be used for brightfield, fluorescence and polarized imaging

MC2000500Pro has inherited the core color restoration technology of Dilun ISP, which can effectively improve the color deviation of the sensor's response to the spectrum, and accurately restore the true color under the microscope. Excellent imaging performance, no matter it is bright field, fluorescence, or polarized light imaging, it can be handy!

Sony professional CMOS sensor

Sony’s 20-megapixel CMOS sensor IMX183 is used, the target size is 1", and the pixel size is 2.4μm. The maximum resolution of the captured image can reach 5472 x 3648. The image captured under a low-power lens can still be clearly presented even if it is magnified several times.

Professional global shutter technology

Using global shutter technology, all pixels are exposed at the same time, not only can accurately track and capture dynamic samples, but also can obtain clear images without distortion and deformation when shooting fast moving samples!

USB 3.0 stable high-speed transmission

Simple and convenient while ensuring a stable high transmission rate, allowing fast focusing at high resolutions. In the case of full resolution, a rate of 15 frames per second can be achieved for fast imaging.

machine X1, operation manual X1, warranty card X1, certificate of conformity X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
