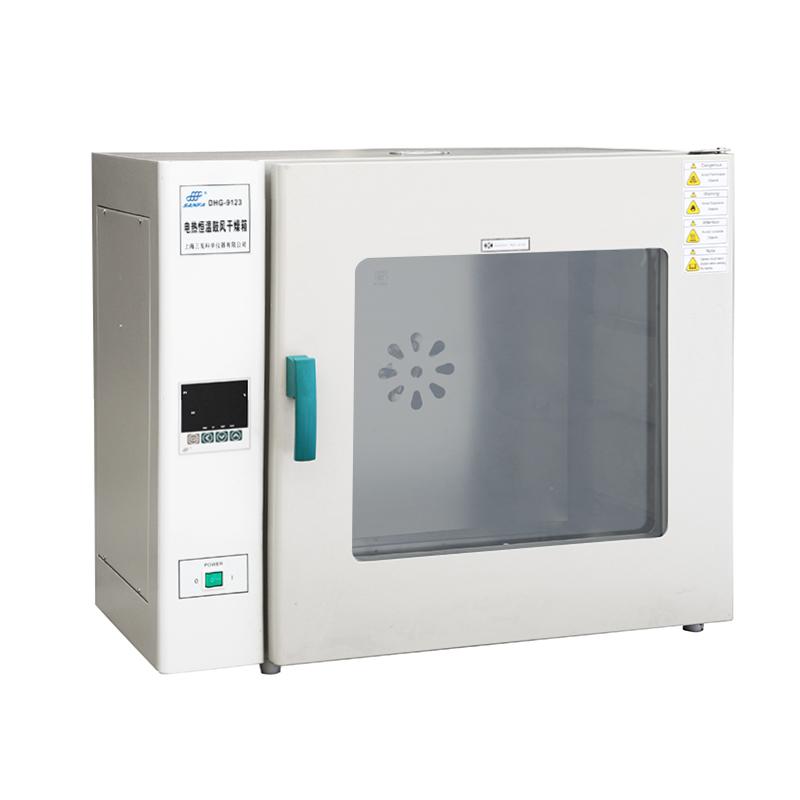

SANFA DHG-9123 Desktop Forced Air Drying Oven 108L
SANFA DHG-9123 Desktop Forced Air Drying Oven Temperature range RT + 10~200 ℃, volume 108L, Interior size 540 × 330 × 550mm, Chamber material spray high temperature silver paint, Power 1500W
sanfa
DHG-9123
DHG-9123A
-
RONGHUA DZF-6210 Vacuum Oven volume 215L
$ 3785.00 -
YIHENG BPZ-6120-2B Vacuum Oven
$ 6822.00 -
BENTING BGLQ-125BE forced convection Drying Oven
Login -
Kenton 101-1S pointer electric Forced Air Drying Oven, stainless steel inner tank 300 ℃/70L
$ 389.00 -
HUITAI DZF-6090 Experimental Vacuum Oven with Vacuum Pump 90L with intelligent program controller
$ 2107.00
Application
It is suitable for industrial and mining enterprises, laboratories, scientific research units, etc. for drying, baking, wax melting and sterilization.
Features
※The inside and outside of the box are welded with good steel plates, the surface is electrostatically sprayed, the studio is mirror stainless steel or sprayed with high-temperature silver paint, and the door is equipped with an observation window or a double door structure, which is novel, beautiful and energy-saving.
※ Microcomputer intelligent LED display thermometer, accurate and reliable temperature control, at the same time display the set temperature and the temperature in the box, with over-temperature overheating, leakage, sensor fault alarm function, timing function. (Optional intelligent LCD thermostat)
※The hot air circulation system is composed of a low-noise fan and a suitable air duct, and the hot and dry air is directly dried and sterilized by the heated object.
In addition to the above functions, the upgraded LCD thermostat also has programmable temperature control, can be equipped with RS-485 interface, can be connected to the Recorder and computer, and can record the change of temperature parameters (optional).
Model
| Model | volume | power |
| DHG-9023(A) | 25L | 500W |
| DHG-9053(A) | 53L | 1000W |
| DHG-9123(A) | 108L | 1500W |
| Same parameters | ||
| Temperature control range | RT+10-200℃ | |
| Temperature resolution | 0.1℃ | |
| Temperature fluctuations | ±1℃ | |
| Temperature uniformity | ±2°C (100°C at test point) | |
| Cargo carriers | 2pcs | |
| Timing range | 1-9999min | |
| Remarks: A is a stainless steel liner | ||
sanfa DHG-9123 Desktop Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~200℃ |
| Temperature Fluctuation | ±1℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±2℃ |
| Volume | 108L |
| Interior size | 540*330*550mm |
| Chamber material | Spray high temperature resistant silver paint |
| Shelf (std.) | 2pcs |
| Enclosure Material | Good steel plate welded, surface electrostatic spray |
| Timer | 1~9999min |
| Power supply Voltage | 220V 50Hz |
| Input Power | 1500W |
| Dimensions | 810*540*720mm |
sanfa DHG-9123 Desktop Forced Air Drying Oven Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
