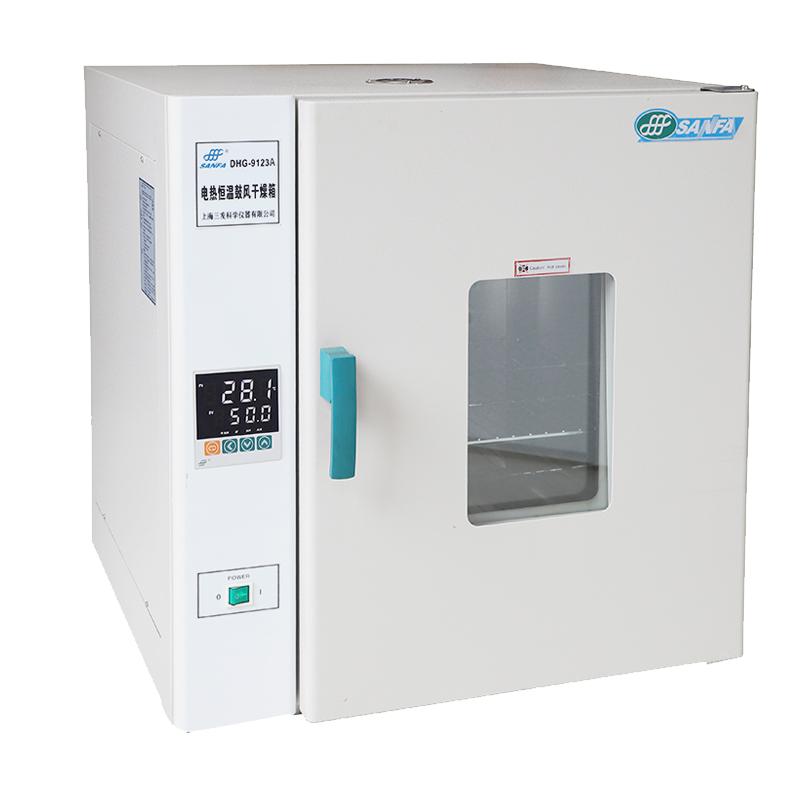

SANFA DHG-9123A Desktop Forced Air Drying Oven 108L/stainless steel
Temperature range RT + 10~200 ℃, Temperature Fluctuation +/- 1 ℃, Temperature resolution 0.1 ℃, Temperature uniformity +/- 2 ℃, Volume 108L, Interior size 540 * 330 * 550mm
sanfa-
YIHENG GRX-9203A hot air disinfection box, high temperature Drying Oven drying disinfection function, power 2450W
$ 1034.00 -
HUITAI BPG-9620A precision blast drying oven volume 620L microcomputer temperature control
$ 1835.00 -
BENTING CBGL-625B vertical standard Forced Air Drying Oven 300 ℃/627L oven
Login -
BENTING CBX45BE Hot Air Disinfection Box, LCD 45L
Login -
SANFA HP-030A Drying Oven/Incubator (dual-use)
$ 457.00
Application
It is suitable for drying, baking, melting wax, and sterilization in industrial and mining enterprises, laboratories, and scientific research units.
Features
※The inside and outside of the cabinet are welded with high-quality steel plates, the surface is electrostatically sprayed, the working room is made of mirror stainless steel or sprayed with high temperature resistant silver paint, the door is equipped with observation windows or double door structure, the shape is novel, beautiful and energy-saving.
※Microcomputer intelligent LED display temperature controller, accurate and reliable temperature control, simultaneously display the set temperature and the temperature inside the box, with over-temperature overheating, leakage, sensor failure alarm function, timing function. (optional intelligent LCD temperature controller)
※A low-noise fan and a suitable air duct are used to form a hot air circulation system, and the dry hot air is directly dried and sterilized by the heated object.
In addition to the above functions, the upgraded liquid crystal display temperature controller also has programmable temperature control, can be equipped with RS-485 interface, can be connected to a Recorder and a computer, and can record the change of temperature parameters (optional).
Model
| model | volume | power |
| DHG-9023(A) | 25L | 500W |
| DHG-9053(A) | 53L | 1000W |
| DHG-9123(A) | 108L | 1500W |
| same parameters | ||
| Temperature control range | RT+10-200℃ | |
| temperature resolution | 0.1°C | |
| temperature fluctuation | ±1℃ | |
| temperature uniformity | ±2°C (test point is 100°C) | |
| Carrier | 2pcs | |
| Timer Range | 1-9999min | |
| Remarks: A is stainless steel liner | ||
sanfa DHG-9123A Desktop Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~200℃ |
| Temperature Fluctuation | ±1℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±2℃ |
| Volume | 108L |
| Interior size | 540*330*550mm |
| Chamber material | stainless steel |
| Shelf (std.) | 2pcs |
| Enclosure Material | Good steel plate welded, surface electrostatic spray |
| Timer | 1~9999min |
| Power | 220V 50Hz |
| Input Power | 1500W |
| Dimensions | 810*540*720mm |
sanfa DHG-9123A Desktop Forced Air Drying Oven Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
