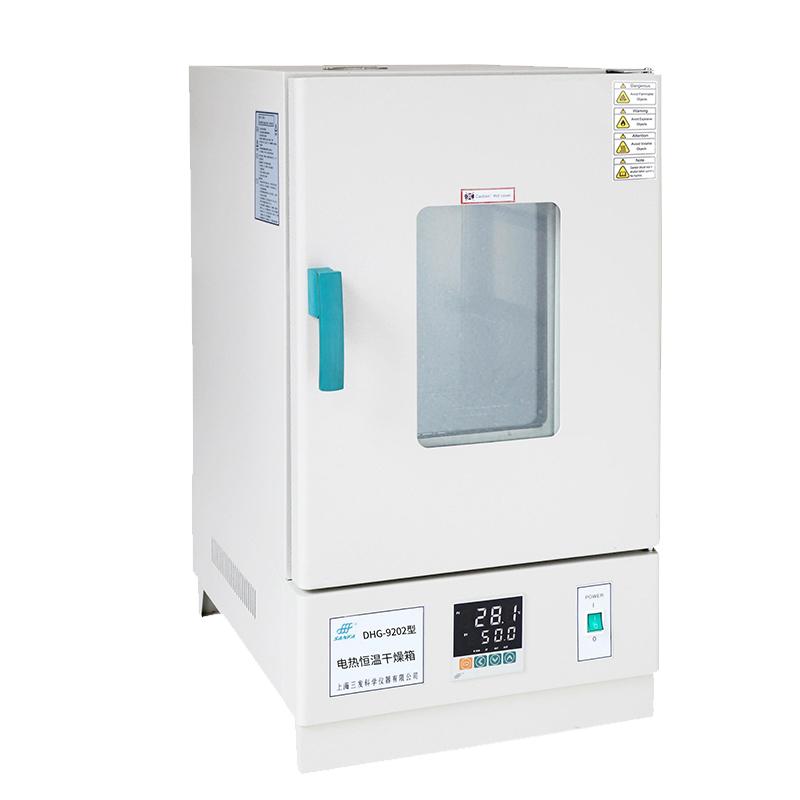

SANFA DHG-9202-0 Electric thermostatic Drying Oven 300 ℃/43L
sanfa-
YIHENG DHG-9030A Desktop Forced Air Drying Oven Stainless steel liner Power 850W
$ 436.00 -
YIHENG BPG-9070A Precision Forced Air Drying Oven Input Power 1100W
$ 713.00 -
Guohua DGX-200 electric heating constant temperature Forced Air Drying Oven
$ 637.00 -
HUITAI DHG-9075A high temperature blast drying oven volume 80L temperature control 300 ℃ with test hole 50mm
$ 515.00 -
YIHENG DHG-9425A Forced Air Drying Oven Volume 420L Temperature control: 10~300 ℃
$ 1967.00
Application
It is suitable for drying, baking, melting wax, and sterilization in industrial and mining enterprises, laboratories, and scientific research units.
Features
※The inside and outside of the cabinet are welded with high-quality steel plates, the surface is electrostatically sprayed, the working room is made of mirror stainless steel or sprayed with high temperature resistant silver paint, the door is equipped with observation windows or double door structure, the shape is novel, beautiful and energy-saving.
※Microcomputer intelligent LED display temperature controller, accurate and reliable temperature control, simultaneously display the set temperature and the temperature inside the box, with over-temperature overheating, leakage, sensor failure alarm function, timing function. (optional intelligent LCD temperature controller)
※A low-noise fan and a suitable air duct are used to form a hot air circulation system, and the dry hot air is directly dried and sterilized by the heated object.
※In addition to the above functions, the upgraded liquid crystal display temperature controller also has programmable temperature control, can be equipped with RS-485 interface, can be connected to a Recorder and a computer, and can record the change of temperature parameters (optional).
Models
| model | volume | power |
| DHG-9202-00(A) | 16L | 250W |
| DHG-9202-0(A) | 43L | 500W |
| DHG-9202-1(A) | 70L | 1000W |
| DHG-9202-2(A) | 140L | 1500W |
| DHG-9202-3(A) | 225L | 2000W |
| same parameters | ||
| Voltage | 220V 50Hz | |
| Temperature control range | RT+10-300℃ | |
| temperature resolution | 0.1°C | |
| temperature fluctuation | ±1℃ | |
| temperature uniformity | ±3°C (test point is 100°C) | |
| Carrier | 2pcs | |
| Timer Range | 1-9999min | |
| Remarks: A is stainless steel liner | ||
sanfa DHG-9202-0 Electric thermostatic Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~300℃ |
| Temperature Fluctuation | ±1℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±3℃ |
| Volume | 43L |
| Interior size | 350*350*350mm |
| Chamber material | Spray high temperature resistant silver paint |
| Shelf (std.) | 2pcs |
| Enclosure Material | Good steel plate welded, surface electrostatic spray |
| Timer | 1~9999min |
| Power | 220V 50Hz |
| Input Power | 500W |
| Dimensions | 620*560*540mm |
| Communication interface | RS-485 (optional) |
sanfa DHG-9202-0 Electric thermostatic Drying Oven Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
