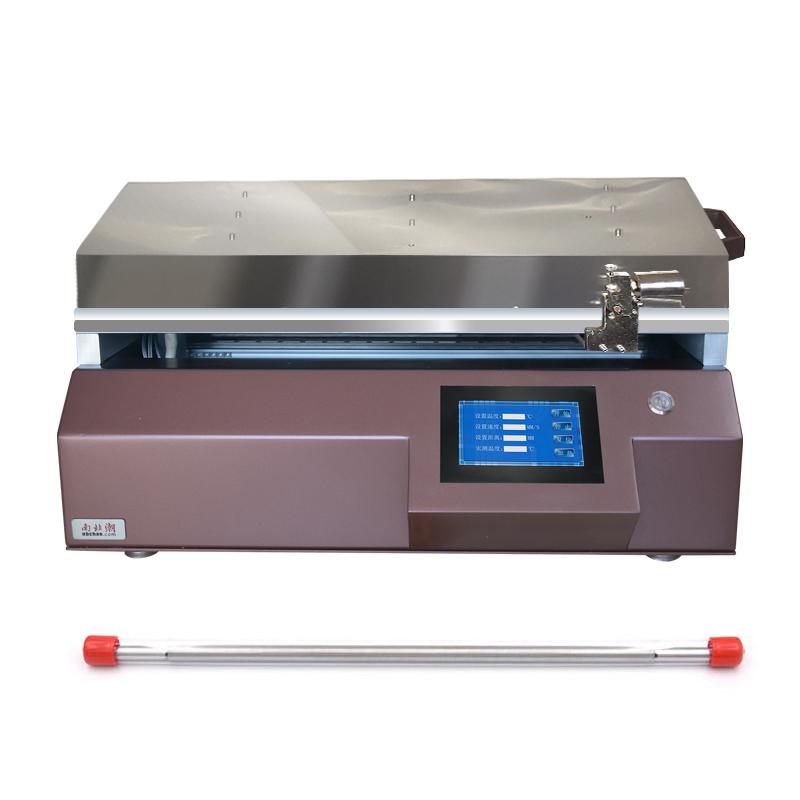

China UV curing 4-in-1 Functional Film Applicator TBJ-X3-DJ30 Removable Drawdown blade
Drawdown blade, Vacuum chuck, heating integrated, Drawdown blade disassembly, cleaning, replacement is convenient, with bracket Drawdown blade makes Spreader run more stable, film more uniform, with UV curing function, application width 300mm.
Brand
SKU: NB002600
zyModel
TBJ-X3-DJ30
TBJ-X2-DJ18
Price
$ 6289.00
Promotion
Service
The delivery and service By NBchao.Com
VS
What else did others buy
-
TM3100Pro High-precision Wire Rod & Drawdown Blade Automatic Coating Machine with Heated Bed
$ 3180.00 -
China TBJ-B2-DJ2 drawdown Bar & blade Vacuum chuck Experimental Film Applicator coating machine
$ 6600.00 -
HuiNuo TM3200Pro/03 drawdown Bar & blade vacuum adsorption coater Effective area 100cm * 30cm
$ 9087.00 -
China TBJ-A1-DJ2 bar Lab Film Applicator Automatic Feeding
Login -
MODERNER FAA-VI Automatic Film Applicator with External Vacuumpump
Login
Genuinegoods
TBJ-X3-DJ30
Automatic Film Applicator
Drawdown blade, Vacuum chuck, heating integrated, Drawdown blade disassembly, cleaning, replacement is convenient, with bracket Drawdown blade makes Spreader run more stable, film more uniform, with UV curing function, application width 300mm.
Optional
|
|
|
VS
zy TBJ-X3-DJ30 Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Drawdown blade Accuracy | ±0.003mm |
| Drawdown blade thickness range | 0~10Mm drawdown blade can be lifted |
| Coating speed | 5~ 200Mm/s (< 5mm/s can be customized) |
| Coating size | 300 * 400Mm (can be customized) |
| Spreader speed | Digital display, different speeds |
| Vacuum Area | 300 * 400Mm (can be customized) |
| vacuum aperture | Φ1.2mm |
| Vacuum hole spacing | 20*20mm |
| Bar application width | 300mm |
| Mayer Rod Thickness Range | 0~517.5 μm (Spreader thickness according to bar model) |
| Mayer Rod Accuracy | ±0.001mm |
| speed control | Infinitely variable speed |
| Coating table material | aluminum alloy |
| Temperature range | RT+~180℃ |
| Temperature Uniformity | ±3℃ |
| Power | 1500W |
| Vacuum pump size | 380*180*280mm |
| Optional Accessories | Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle |
| customizable function | Jet system device, UV solid inclusion device, automatic inking system |
| Drawdown blade type | Removable drawdown blade, easy to clean and replace |
| Host Power Supply | 220V 50Hz |
| Dimension | 630*410*520mm |
| UV curing area | 300*400mm |
| UV light main peak wave | 36nm |
| UV Light Power | 400*2W |
| UV light curing wavelength | 350-450nm |
| switch | Aviation plug/separate switch |
| Light source spacing | 18*18mm |
| Light board height from Spreader | 20Mm (support customized adjustable height) |
zy TBJ-X3-DJ30 Automatic Film Applicator Packing list
Drawdown blade x1, bar x1, vacuum pump x1, UV curing device x1, certificate of conformity X1, manual X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
FAQ
[Q]
Is the price listed on the website the final cost for overseas purchases?
[A]
No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[Q]
What is the specific process for purchasing the product?
[A]
First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[Q]
What should I do if the instrument I purchase needs repair?
[A]
After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
