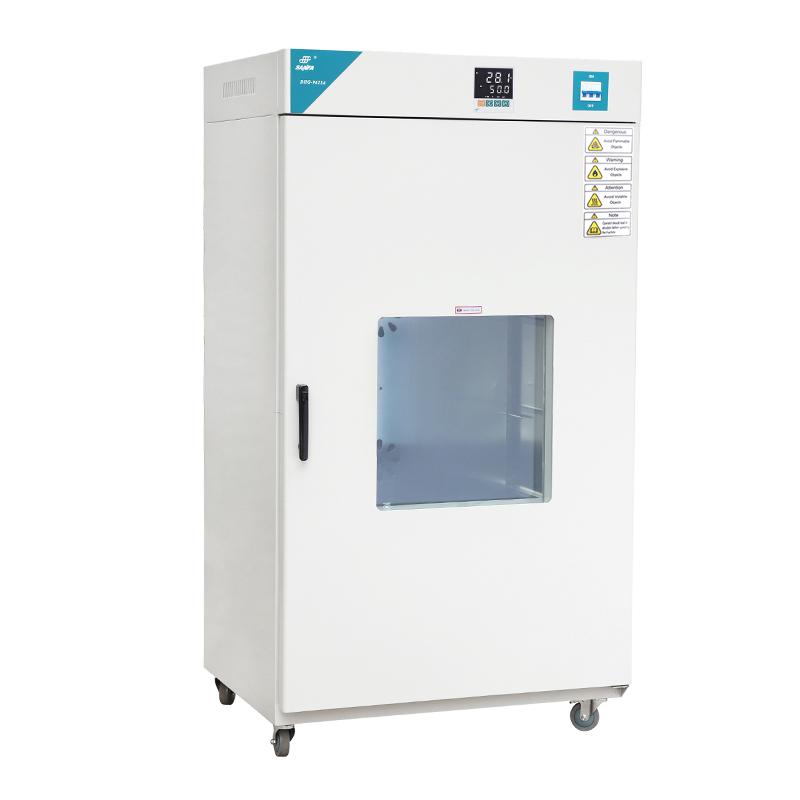

SANFA DHG-9640 vertical Forced Air Drying Oven 640L
SANFA DHG-9640 Vertical Forced Air Drying Oven Temperature range RT + 10~200 ℃, volume 640L, Interior size 800 × 800 × 1000mm, Chamber material spray high temperature silver paint, shelf (std.) 4pcs, Power 5000W
sanfa
DHG-9640
-
BOZHEN BZ-TR-24B External discharge type soil purification Drying Oven
$ 3057.00 -
Kenton 101-5 Dial-Type electric Forced Air Drying Oven, galvanized bile 101 oven 300 ℃/1000L
$ 1003.00 -
BENTING C202-0AB electric thermostatic Drying Oven 250 ℃/42L
Login -
RONGHUA DZF-6051 Vacuum Oven capacity 53L
$ 601.00 -
YIHENG DHG-9091A hot air circulation Drying Oven Power 1400W independent temperature limit alarm system
$ 610.00
Application
It is suitable for industrial and mining enterprises, laboratories, scientific research units, etc. for drying, baking, wax melting and sterilization.
Features
※The inside and outside of the box are welded with good steel plates, the surface is electrostatically sprayed, the studio is mirror stainless steel or sprayed with high-temperature silver paint, and the door is equipped with an observation window or a double door structure, which is novel, beautiful and energy-saving.
※ Microcomputer intelligent LED display thermometer, accurate and reliable temperature control, at the same time display the set temperature and the temperature in the box, with over-temperature overheating, leakage, sensor fault alarm function, timing function. (Optional intelligent LCD thermostat)
※The hot air circulation system is composed of a low-noise fan and a suitable air duct, and the hot and dry air is directly dried and sterilized by the heated object.
※In addition to the above functions, the upgraded LCD thermostat also has programmable temperature control, can be equipped with RS-485 interface, can be connected to the Recorder and computer, and can record the change of temperature parameters (optional).
Serial models
| Model | volume | power | Cargo carriers |
| DHG-9203(A) | 200L | 2Kw | 2pcs |
| DHG-9423(A) | 430L | 3Kw | 3pcs |
| DHG-9623(A) | 630L | 5Kw | 4pcs |
| DHG-9640(A) | 640L | 5Kw | 4pcs |
| DHG-9960(A) | 960L | 8Kw | 5pcs |
| Other parameters | |||
| Temperature control range | RT+10-200℃ | ||
| Temperature resolution | 0.1℃ | ||
| Temperature fluctuations | ±1℃ | ||
| Timing range | 1-9999min | ||
| Remarks: A is stainless steel | |||
sanfa DHG-9640 Vertical Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~200℃ |
| Temperature Fluctuation | ±1℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±3℃ |
| Volume | 640L |
| Interior size | 800*800*1000mm |
| Chamber material | Spray high temperature resistant silver paint |
| Shelf (std.) | 4pcs |
| Enclosure Material | Good steel plate welded, surface electrostatic spray |
| Timer | 1~9999min |
| Power supply Voltage | 380V 50Hz |
| Input Power | 5000W |
| Dimensions | 930*790*1400mm |
| Communication interface | RS-485 (optional) |
sanfa DHG-9640 Vertical Forced Air Drying Oven Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
