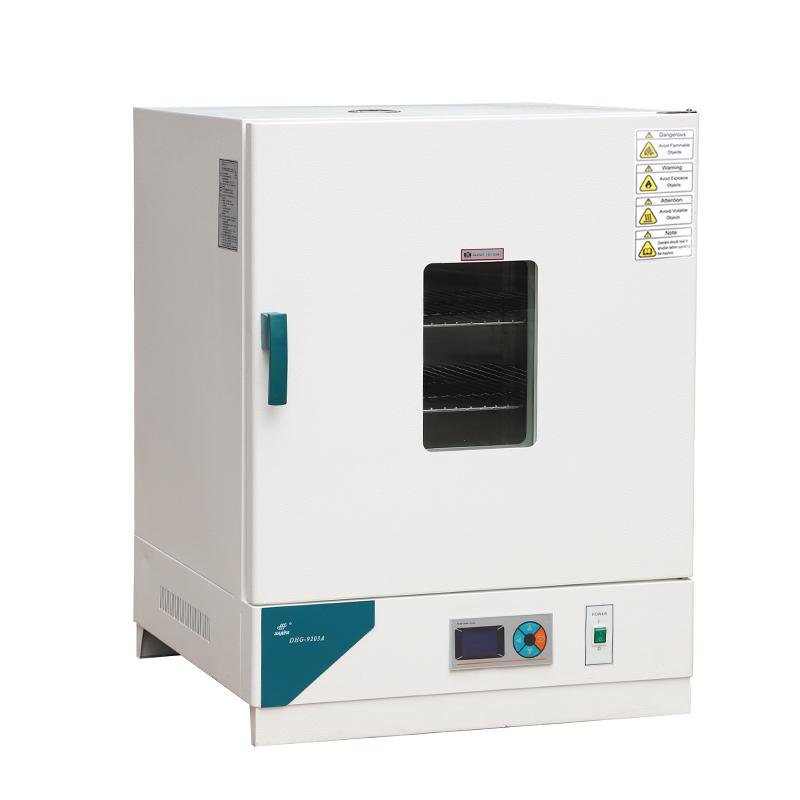

SANFA DHG-9203J Precision thermostatic Drying Oven 200L
SANFA DHG-9203J Precision thermostatic Drying Oven Temperature range RT + 5~ 300 ℃, Temperature Fluctuation +/- 0.2 ℃, Temperature resolution 0.1 ℃, Temperature uniformity +/- 0.5 ℃, Volume 200L, Interior size 600 × 550 × 600mm, Chamber material Mirror stainless steel
sanfa-
BOZHEN DGG-9076A vertical Forced Air Drying Oven 72L/300 ℃
$ 513.00 -
Guohua DGX-20 electric heating constant temperature Forced Air Drying Oven
$ 416.00 -
RONGHUA DHG-9101-0A Electric thermostatic blast Drying Oven
$ 391.00 -
Kenton 101-2 Dial-Type experimental Forced Air Drying Oven 136L with independent temperature limiter
$ 333.00 -
HUITAI BPG-9140A Laboratory oven volume 136L with test hole 50mm
$ 859.00
DHG precision constant temperature Forced Air Drying Oven is suitable for tertiary institutions, laboratories, and scientific research units as drying and sterilization with high temperature control accuracy.
Features
※Mirror stainless steel liner is adopted, the four corners are semi-circular transition, and the shelf bracket can be freely loaded and unloaded, which is convenient for cleaning inside the box.
※Using PID fuzzy logic processing controller, liquid crystal display, quickly reach the set value and the operation is more accurate and stable.
※It is equipped with an independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, so as to ensure the safe operation of the experiment and no accidents (optional).
※It has a printer or RS-485 interface, which can be connected to a printer or a computer, and can record the change of temperature parameters (optional).
※ There is a test hole with a diameter of 25mm on the left side of the box, which is convenient for experimental operation and temperature measurement.
Models
| model | volume | power | Carrier |
| DHG-9023J | 25L | 500W | 2 |
| DHG-9053J | 50L | 1000W | 2 |
| DHG-9123J | 105L | 1500W | 3 |
| DHG-9203J | 200L | 2000W | 3 |
| Other parameters | |||
| Temperature control range | RT+5-300℃ | ||
| temperature resolution | 0.1°C | ||
| temperature fluctuation | ±0.2℃ | ||
| temperature uniformity | ±0.5℃ | ||
| Timer Range | 1-9999min | ||
| Voltage | 220V 50Hz | ||
sanfa DHG-9203J Precision thermostatic Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+5~300℃ |
| Temperature Fluctuation | ±0.2℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±0.5℃ |
| Volume | 200L |
| Interior size | 600*550*600mm |
| Chamber material | Mirror stainless steel |
| Shelf (std.) | 3pcs |
| Timer | 1~9999min |
| Power | 220V 50Hz |
| Input Power | 2000W |
| Environmental temperature | RT+5~40℃ |
| Dimensions | 860*650*730mm |
| Communication interface | Printer or RS-485 interface (optional) |
sanfa DHG-9203J Precision thermostatic Drying Oven Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
