Vacuum Drying Ovens are widely used in biochemistry, chemical industry, advanced institutions, agricultural scientific research, environmental protection and other research and application fields, for powder drying, baking and disinfection and sterilization of various glass containers. It is especially suitable for fast and effective drying of dry heat-sensitive, easily decomposable, easily oxidized substances and complex composition items.
Features
※The cuboid studio makes the effective volume utilization rate large, and the microcomputer temperature controller is accurate and reliable in temperature control.
※The tempered, bulletproof double-glazed door can be seen at a glance when observing objects in the studio.
※The door closure can be adjusted tightly, and the silicone rubber door sealing ring is integrally molded to ensure a high vacuum degree in the box.
※Solenoid valve control is standard, which changes the history of manual lever control.
※The novel release valve is integrated with the inert gas inlet valve, which makes it easy for users to use and add gas.
※The studio is made of stainless steel plate to ensure that the product is durable.
* Storage, heating, testing, and drying can be carried out in an environment without oxygen or inert gas, and will not cause oxidation.
※The upgraded LCD vacuum Drying Oven has the LCD temperature display in addition to the above functions, and the temperature control is more accurate. The digital vacuum gauge uses digital technology to control the vacuum degree, and the vacuum gauge automatically controls the vacuum degree through the digital display vacuum gauge, and the vacuum gauge adopts a resistance silicon tube pressure sensor, so as to ensure a stable pressure value, which is not affected by the air flow, and transmits the stable pressure value to the vacuum gauge LED display, with a control accuracy of ±1%;
Serial models
| Model | DZF-6090(ES) | DZF-6210(ES) | DZF-6420(ES) | DZF-6920(ES) |
| power supply | ~220V 50Hz | ~380V 50Hz | ||
| Power consumption | ≥1200W | ≥2160W | ≥4000W | ≥6000W |
| Ambient temperature | 5~40℃ | |||
| Temperature control range | RT+10~200℃ | |||
| Temperature resolution | 0.1℃ | |||
| Temperature fluctuations | ±1℃ | |||
| Vacuum | 133Pa | |||
| Studio materials | 1Gr18Ni9Ti | |||
| Studio size (mm) | 450×450×450 | 560×600×640 | 650×750×850 | 750×1050×1160 |
| Dimensions(mm) | 610×610×800 (without pump) | 720×760×990 (without pump) | 920×940×1800 | 1120×1260×2110 |
| 610×610×1400 | 720×800×1590 | |||
| Cargo carriers (blocks) | 2pcs | 3pcs | 4pcs | 4pcs |
| remark | Note: The model with "E" is the liquid crystal display thermostat, and "S" is the digital display vacuum meter | |||

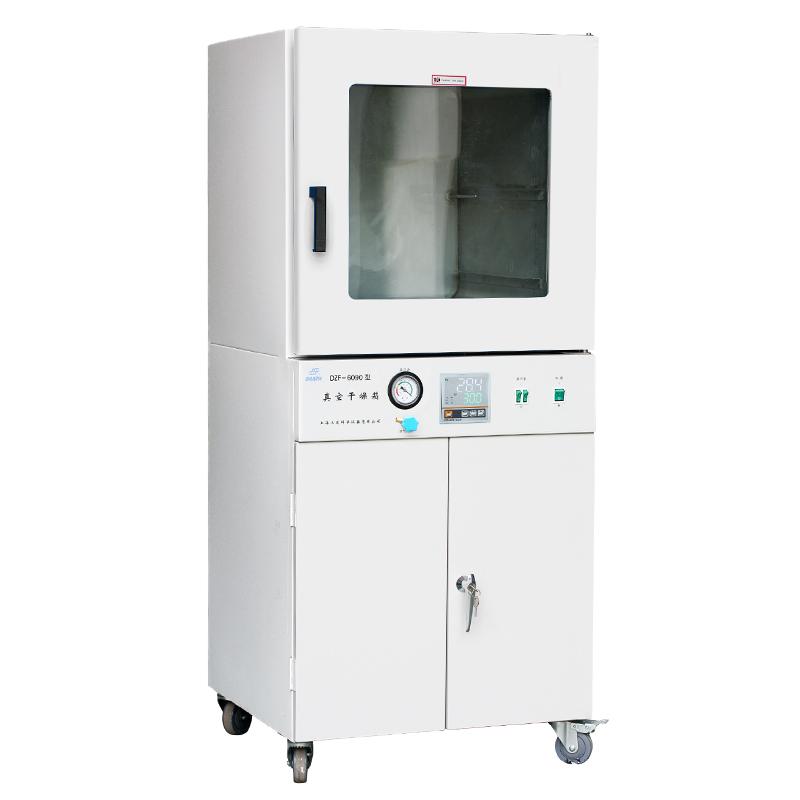

sanfa DZF-6920 Vacuum OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~200℃ |
| Temperature Fluctuation | ±1℃ |
| Temperature Resolution | 0.1℃ |
| Interior size | 750*1050*1160mm |
| Chamber material | Stainless steel 304 (1Cr 18Ni9Ti) |
| Shelf (std.) | 4pcs |
| vacuum | 133Pa |
| Power supply Voltage | 380V 50Hz |
| Power Consumption | ≥6000W |
| Environmental temperature | RT+5~40℃ |
| Dimensions | 1120*1260*2110mm |
sanfa DZF-6920 Vacuum Oven Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
