BOSEAN BH-60 Wall-mounted gas control cabinet, four-way main engine
BOSEAN BH-60 wall-mounted gas control cabinet has four external ports, working Voltage AC 220V +/- 10%, 50Hz, system power consumption ≤ 10W (no external equipment), signal input three-wire system 4~ 20mA or four-wire system RS485, signal output two-wire system RS485 (MODBUS).
Bosean
BH-60
BH-50
-
GUOYUGRA GY/VGD-200-NO2-G (0-20ppm) nitrogen dioxide Detector
$ 270.00 -
HUIRUIPU HRP-K2000-2 Two-Channel Gas Alarm Controller
$ 134.00 -
KORNO NBC500-YH-CO-IR (0-1000ppm) Infrared CO Detector
$ 2403.00 -
GUOYUGRA GY/VGD-200-C3H6-G Infrared Propylene Detector 0-2% Vol
$ 941.00 -
GUOYUGRA GY/VGD-200-NO-G (0-500ppm) nitric oxide Detector
$ 692.00
Introduction
Single/double/four (4-20) mA/RS485 transmitter signal input intelligent controllable system, the product has high stability. High accuracy and high intelligence, rich external control ports, users can freely choose the type of transmitter and access port, and can perform on-site detection and alarm through simple settings. The system has integrated sound and light alarm, and provides relay normally open control terminal.
The system is widely used in occasions where poisonous and harmful gases need to be detected. When the index of a certain gas to be detected on site exceeds or falls below the set standard, the system will perform a series of alarm actions, such as alarm, exhaust, trip, etc.
Detection principle: Collect standard 4~20mA signal input or RS485 communication input (optional), analyze and process to display the current gas concentration of each channel, and operate related alarm signals, and can also transmit information to the computer through RS485 bus.
Applicable objects: The system supports the input signals of various standard Detectors, such as Gas Detectors: carbon monoxide, hydrogen sulfide, sulfur dioxide, hydrogen, ammonia, oxygen, chlorine and combustible gases, etc.

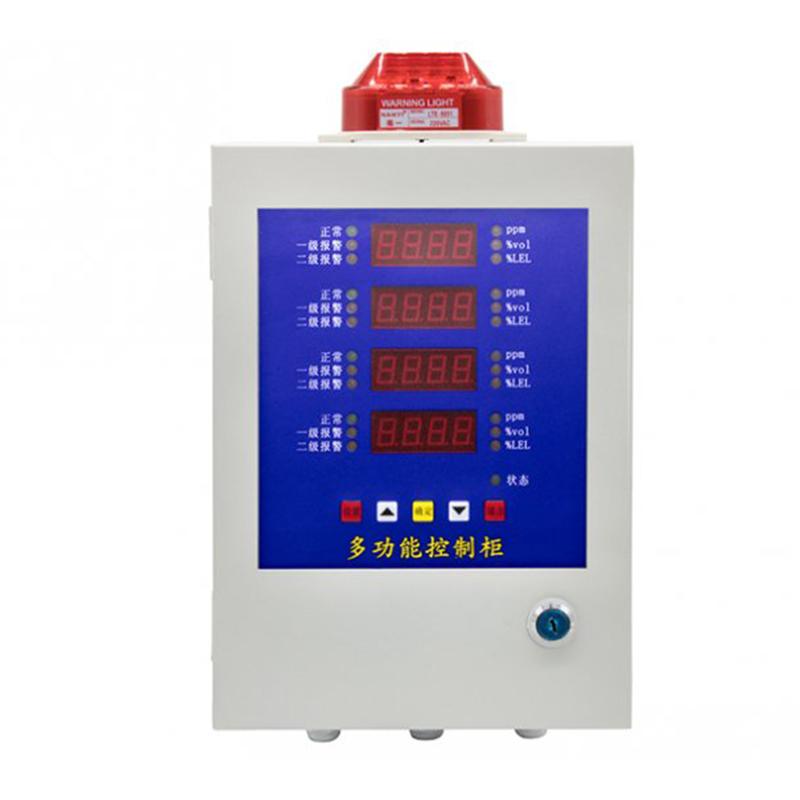

Bosean BH-60 Four-way multi-function host alarm control cabinetSpecifications
| LIST | VALUE |
|---|---|
| external port | four way |
| Power Supply | AC 220V +/- 10%, 50Hz |
| System power consumption | ≤ 10W (without external equipment) |
| signal input | 3-Wire 4~ 20mA or 4-wire RS485 |
| signal output | Two-wire RS485 (MODBUS) |
| Ambient Operating Temperature | -10~50℃ |
| Ambient Operating Humidity | 0~95% RH non-condensation |
| Installation method | wall mounted |
| Dimensions | 380*210*80mm |
Bosean BH-60 Four-way multi-function host alarm control cabinet Packing list
Host X1, Encasement Box X1, Charger X1, Calibration Cover X1, Manual X1, Certificate X1, Warranty Card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
