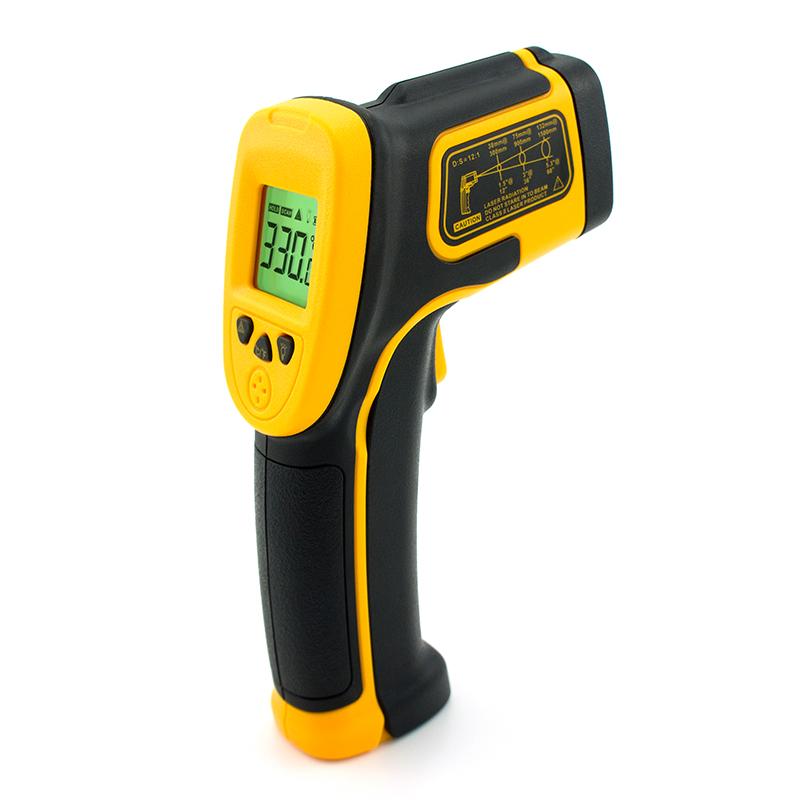

SMART SENSOR AS330 Non-contact Infrared Thermometer

Introduction

Compact, interference-proof and easy to use. As long as you aim and press the button, the current surface temperature of the measured object can be read out within one second. For hot, toxic, or hard-to-reach objects, this product can be used to measure safely.

Operating Principle

An infrared thermometer is an instrument that measures the surface temperature of an object. It uses a light sensor to receive the infrared spectrum emitted by the measured object, collects and focuses it, and then converts the signal into a reading and displays it by other circuits.

Product structure diagram

(1) Power on/measure button: When the button is pulled to power on/measure pressbutton when the temperature value is displayed, and "SCAN" is displayed at the same time,When the button is released, it turns to "HOLD" and the temperature displaydisplay, automatically hold the data, no operation after 20 seconds of selfPowered off.

(2) Laser light switch

(3) Celsius and Fahrenheit temperature unit transfer switch.

(4) Backlight switch: When the backlight is turned on, press the button to operateAll of them have a 10-second backlight delay to turn off function.

(5) Display screen (see Figure 2 for details)

(6) Battery door: When you need to replace the battery, please hold the batteryDoor finger groove and pull the battery door outward.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
