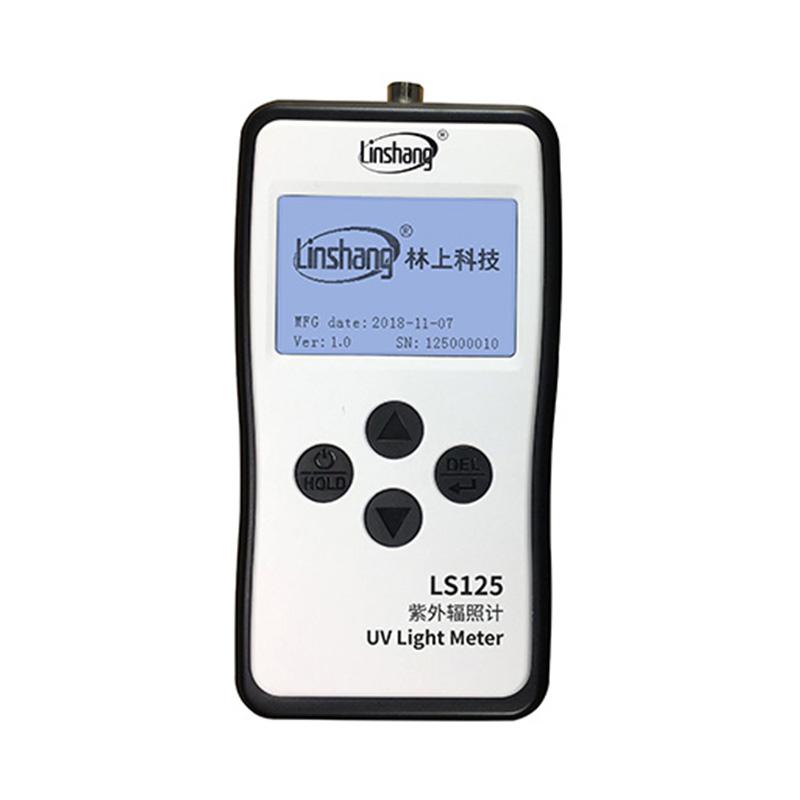

LINSHANG LS125 Multi-probe UV radiometer host
LINSHANG LS125 multi-probe UV radiometer host instrument weight of about 194 grams (including battery), host size length 148mm × width 76mm × height 26mm, display 240 * 160 dot matrix LCD, battery 4 AAA alkaline dry batteries, probe connection Push-pull self-locking (snap type) connector.
LinShang
LS125
Introduction
Ultraviolet light includes the UVA band (320nm-420nm), the UVB band (280nm-320nm) and the UVC band (200nm-280nm). UVA band is mainly used in light curing, lithography exposure, ultraviolet light source, integrated circuit lithography and other industries; UVB is used in physiotherapy lamps and special UVB fluorescent lamps for lizards in health care places; UVC band, also known as short-wave sterilization ultraviolet rays, ultraviolet germicidal lamps emit UVC short-wave ultraviolet rays. Ultraviolet germicidal lamps are mainly used in disinfection and sterilization, pharmaceutical factory transfer windows, CDC and other occasions.
Features
1. The main unit and the probe are connected by aviation plugs, and one main unit can match 9 different UV probes.
2. Using professional digital probe technology, the probe is not easy to be disturbed and provides excellent measurement accuracy.
3. The instrument intelligently identifies the model of the probe, and the instrument adaptively displays the interface according to the probe type.
4. Rich statistical functions, real-time power value, maximum value, minimum value, average value, measurement time, energy value display at the same time.
5. Data recording: 9 sets of measurement data can be saved. Press the lock button during the measurement to save the maximum and current values during the measurement at the same time. And the shutdown data is still saved (except for removing the battery).
6. Ultra-low power consumption: the instrument will automatically shut down after 10 minutes without any operation, so as to avoid the loss of battery power caused by forgetting to shut down after the measurement, and protect the service life of the instrument.

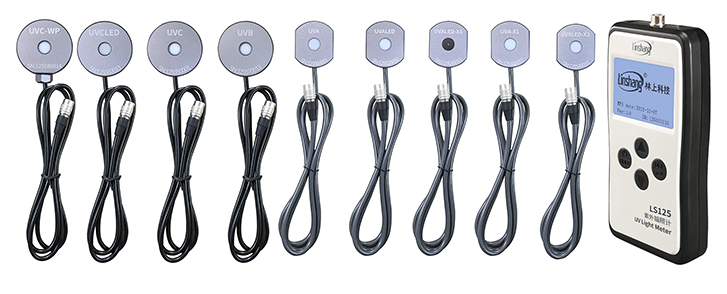

LS125 multi-probe ultraviolet irradiance meter, using digital probe, plug-in design, one host can match a variety of probes, the instrument intelligently judges the model of the probe, according to the test of ultraviolet spectrum range, range, size of the measuring hole, application industry, etc., 9 different ultraviolet probes have been developed, each probe selection refers to the following figure:
Probe model | Spectral response | Application |
UVC | 230nm-280nm | 254nm high-power ultraviolet germicidal mercury lamp intensity and energy test |
UVC-WP | 230nm-280nm | Water treatment 254nm germicidal mercury lamp intensity and energy test, waterproof 1 meter deep |
UVC LED | 200nm-400nm | 220nm-320nm LED light source intensity and energy test |
UVB | 280nm-315nm | 297nm, 308nm, 313nm and other UVB light source intensity and energy testing |
UVA | 315mn-400nm | UV curing, high-pressure mercury lamp intensity and energy testing |
UVA -X1 | 260nm-400nm | Ultraviolet aging chamber, ultraviolet intensity and energy testing in solar rays |
UVA LED | 340nm-420nm | UV curing, UVA LED flood light intensity and energy testing |
UVA LED - X1 | 340nm-420nm | UV curing, UVA LED spot light source intensity and energy testing |
UVA LED - X3 | 340nm-420nm | Intensity and energy testing of low-power UVA LED light sources |
LinShang LS125 Multi-probe UV radioMeter hostSpecifications
| LIST | VALUE |
|---|---|
| Instrument Weight | About 194 grams (including battery) |
| Host size | 148*76*26mm |
| show | 240 * 160 dot matrix LCD |
| Power Supply | 4 AAA alkaline dry batteries |
| Probe Connectivity | Push-pull self-locking (snap-on) Connector |
LinShang LS125 Multi-probe UV radioMeter host Packing list
Multi-probe UV irradiometer x1, AAA battery x4, manual x1, warranty card x1, engineering box size 34 * 29 * 9 cm (length * width * height) x1, test probe (number of probes that have been booked)
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
