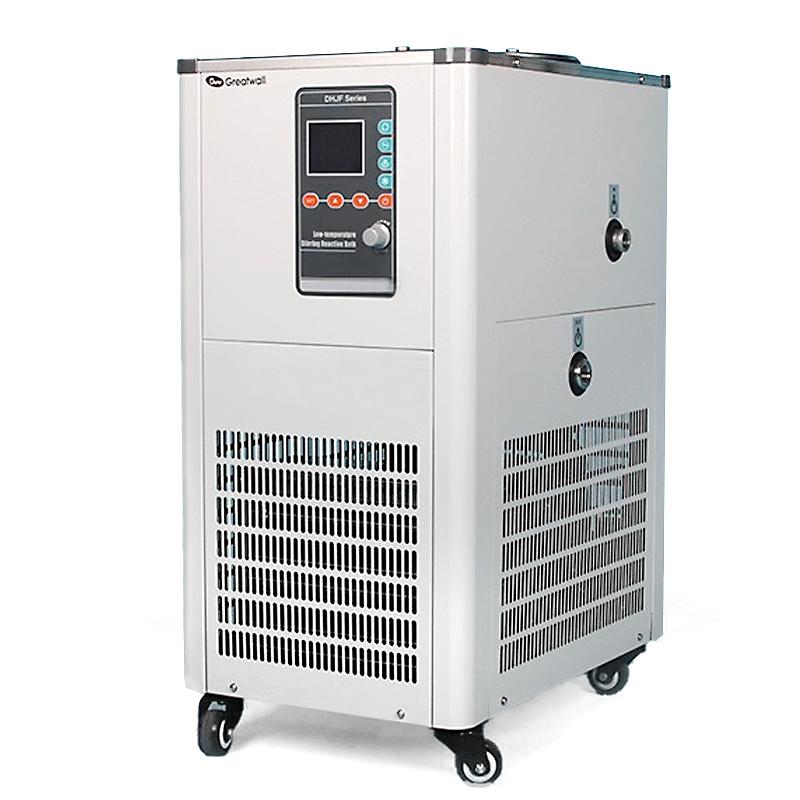

      GreatWall DHJF-4030 Low-Temperature Stirred Jacketed Reactor

      GreatWall DHJF-4030 low temperature (thermostatic) stirred reaction bath

      Brand
      SKU: NB026599
      China GreatWall
      VS
      GreatWallLOGO

      GreatWall

      Information
      Genuinegoods
      • GreatWall DHJF-4030 Low-Temperature Stirred Jacketed ReactorOverview

      • Specifications
      • Comments
      • FAQs
      DHJF-4030
      Low-Temperature Stirred Jacketed Reactor

      Characteristics

      It can replace dry ice and liquid nitrogen for low-temperature reactions, and is mainly used for cooling and heating reaction vessels such as flasks, beakers and test tubes. It is suitable for scientific research institutes, university laboratories and enterprise laboratories.

      ●The temperature control adopts PID method, and the temperature control accuracy is high.

      ●The temperature setting and display adopt digital mode, which is easy to operate and easy to monitor.

      ●Fully enclosed magnetic stirrer, stable operation and long service life.

      ●It can be equipped with two-stage stirring to make the temperature of the sample in the user's reaction vessel uniform.

      ●The diameter of the tank cover can be adjusted, which effectively reduces the loss of refrigerant during operation.

      ●Equipped with external fixtures. Easy to install burettes, external sensors, etc.

      ●International brand compressor is adopted, which is reliable in operation and high in efficiency.

      ●There is a liquid discharge port under the tank, which is convenient for replacing the bath liquid in the tank.


      VS

      GreatWall DHJF-4030 Low-Temperature Stirred Jacketed ReactorSpecifications

      LIST VALUE
      Temperature range -40~99℃
      Temperature Fluctuation ±0.5℃
      Tank Volume 30L
      Tank Size Φ400*235mm
      Tank opening Dimensions Φ320mm
      Maximum placement flask 10000ml
      Heating power 3600W
      Flow rate of pump 20 L/min
      pressure 0.4(bar)
      Environmental temperature 5~25℃
      Power supply Voltage 3~,380V,50Hz
      Cooling Capacity 10 ℃ 4750w
      cooling Capacity 2300w@20℃
      Cooling Capacity 40 ℃ 480w
      refrigerant R404A
      Total Power 6088W
      Box material Cold plate electrostatic spraying
      Dimensions 590*670*1005mm
      Weight 120kg

      GreatWall DHJF-4030 Low-Temperature Stirred Jacketed Reactor Packing list

      whole machine X1, operation manual X1, certificate of conformity X1, warranty card X1

      [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

      FAQ

      [Q]
      Find a low temperature stirred reaction bath for GB/T5561
      [A]
      This DHJF-4030 low temperature stirring reaction bath is.
      [Q]
      What is the limit low temperature of this DHJF-4030 low temperature stirring reaction bath?
      [A]
      GREATWALL DHJF-4030 meets the Temperature range of -40 to 99 ° C, with a minimum temperature of -40 ° C.
