Characteristics
It can replace dry ice and liquid nitrogen for low-temperature reactions, and is mainly used for cooling and heating reaction vessels such as flasks, beakers and test tubes. It is suitable for scientific research institutes, university laboratories and enterprise laboratories.
●The temperature control adopts PID method, and the temperature control accuracy is high.
●The temperature setting and display adopt digital mode, which is easy to operate and easy to monitor.
●Fully enclosed magnetic stirrer, stable operation and long service life.
●It can be equipped with two-stage stirring to make the temperature of the sample in the user's reaction vessel uniform.
●The diameter of the tank cover can be adjusted, which effectively reduces the loss of refrigerant during operation.
●Equipped with external fixtures. Easy to install burettes, external sensors, etc.
●International brand compressor is adopted, which is reliable in operation and high in efficiency.
●There is a liquid discharge port under the tank, which is convenient for replacing the bath liquid in the tank.

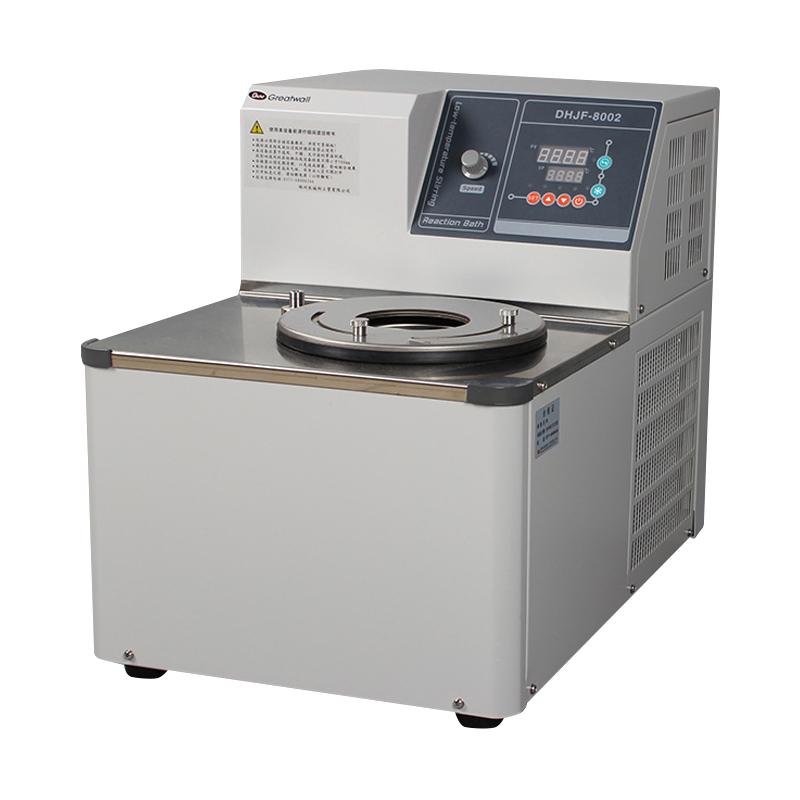

GreatWall DHJF-8002 Horizontal low temperature (thermostatic) stirred reaction bathSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | -80~10℃ |
| Temperature Fluctuation | ±2℃ |
| Tank Volume | 2L |
| Tank Size | Φ160*105mm |
| Tank opening Dimensions | Φ140mm |
| Maximum placement flask | 500ml |
| Heating power | - |
| Flow rate of pump | - |
| pressure | - |
| Environmental temperature | 5~25℃ |
| Power supply Voltage | 220-240V~,50Hz |
| Cooling Capacity 40 ℃ | 200w |
| Cooling Capacity 60 ℃ | 120w |
| Cooling Capacity 80 ℃ | 60W |
| refrigerant | R404A/R23 |
| Total Power | 1024W |
| Box material | Cold plate electrostatic spraying |
| Dimensions | 410*610*495mm |
| Weight | 68kg |
GreatWall DHJF-8002 Horizontal low temperature (thermostatic) stirred reaction bath Packing list
whole machine X1, operation manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
