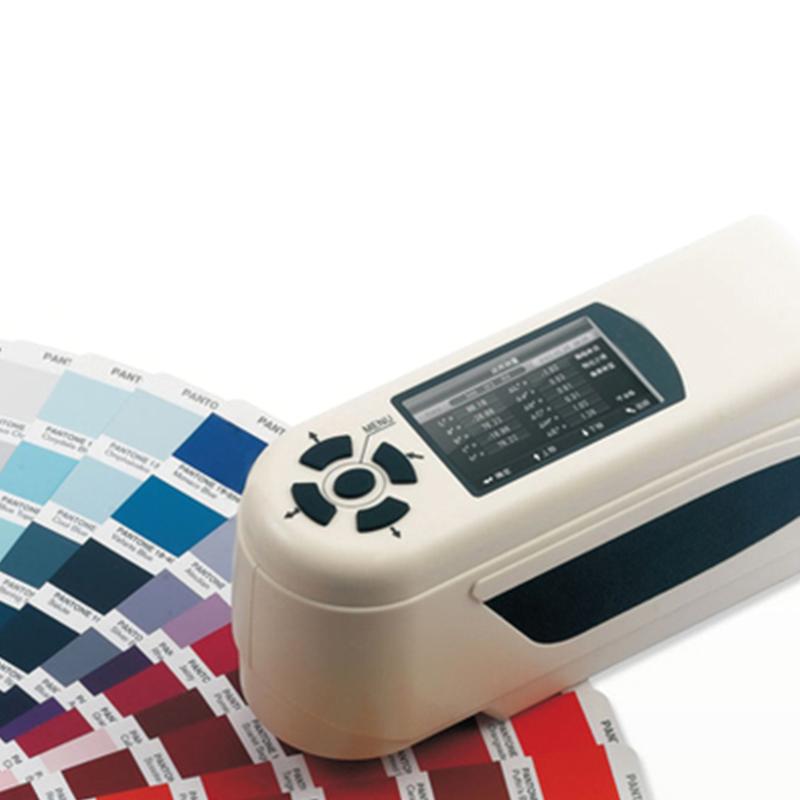

DONGRU DR200 portable computer Colorimeter φ 8mm caliber
Measurement light source D65, measurement diameter φ 8mm, Repeatability 0.08Delta E * ab, one-button entry test; structural design in line with human mechanics.
DongRu-
3NH NH310 powder Colorimeter 8mm/4mm dual aperture, with multi-functional test components
$ 2294.00 -
IWAVE WR-10 Colorimeter suitable for Spinning & weaving, chemical, leather, food, plastic, paints, toys, etc
$ 378.00 -
IWAVE powder test box Colorimeter accessories
$ 195.00 -
IWAVE WF32-8mm color difference Tester Color measurement 8mm
$ 1439.00 -
IWAVE micro printer Colorimeter
$ 195.00
Features
1. User-friendly design and ease of operation
· One-click access to the test;
· Structural design in line with ergonomics;
· Fool-proof interface.
2. Stable measurement performance
· △E is less than 0.08;
· The portable structure design is more conducive to keeping the body stable when applied.
3. Convenient and fast positioning
· The light positioning function is a quick and easy positioning function, and is a patented function developed for 3NH.
4. The PC software realizes more function expansion
· The PC software has intellectual property rights, and the product is equipped with a one-to-one corresponding genuine software serial number and password protection;
· It can carry out color difference analysis, color difference accumulation analysis, color index, color sample library management, simulated object color, etc.
5. Professional power management design
· High-capacity lithium-ion batteries are used in the Colorimeter, so there is no need to purchase batteries repeatedly;
· It can be used repeatedly and automatically to save costs, and it can be measured more than 3000 times at a time, ensuring the stability of long-term measurement.
DongRu DR200 Portable computer ColorimeterSpecifications
| LIST | VALUE |
|---|---|
| Lighting method | LED blue excitation |
| Sensors | photodiode array |
| Measurement light source | D65 |
| Measurement caliber | Φ8mm |
| Sexual repeability | 0.08ΔE*ab |
| Data Interface | USB |
| Viewing Angle | CIE 10° |
| color difference formula | ΔE*ab |
| data storage | 100 standards 5000 samples |
| Power Supply | Rechargeable Li-Ion Battery 3.7V@3200mAh Power Adapter (DC 5V) |
| display mode | TFT True Color 2.8 inch (16:9) |
| Dimensions | 205*70*100mm |
| Weight | 500g |
| Measurement geometry | 8°/D |
| positioning method | Lighting positioning and cross positioning |
| Color Space | CIEL*a*b* |
| Color Space | CIE L*a*b*C*H* CIE L*a*b* CIE XYZ |
| color difference formula | ΔE*ab Δ(L*a*b*) Δ(L*C*h*) |
| Measurement interval | Approximately 1.5 seconds |
DongRu DR200 Portable computer Colorimeter Packing list
host x1, power adapter x1, lithium battery x1, manual x1, disc x1, data cable x1, whiteboard cover x1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
