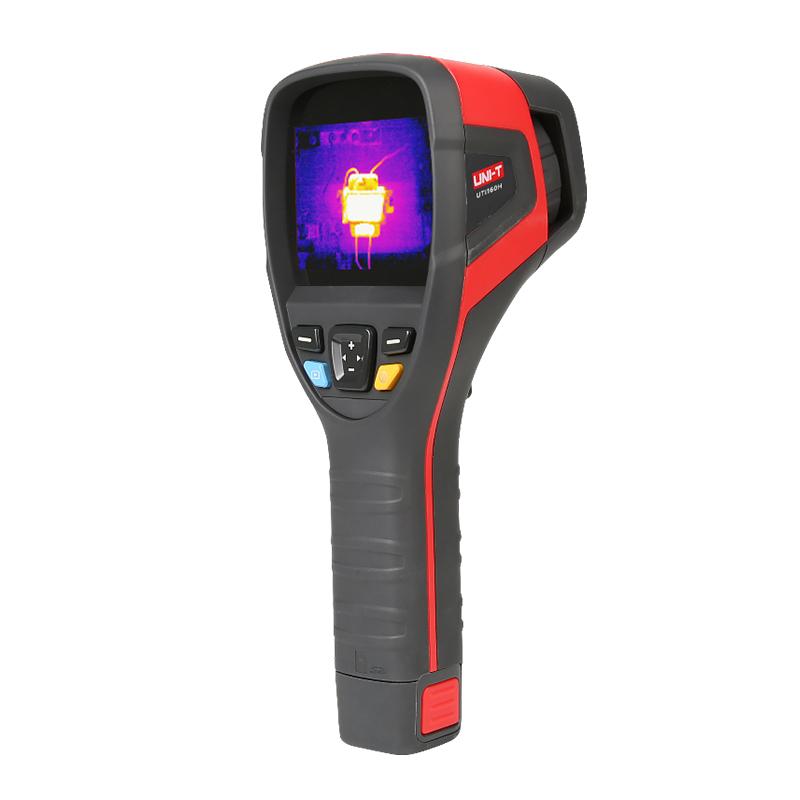

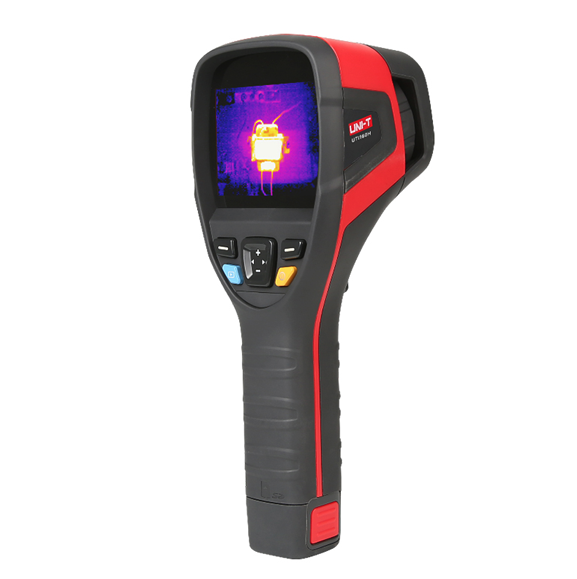

UNI-T UTi160H infrared thermal imagery instrument, lens 5mm
UNI-T UTi160H infrared thermal imagery instrument has surface temperature measurement and real-time thermal image function, the lens diameter is 5mm, UTi160H infrared thermal imagery instrument with PIP picture-in-picture function and MIF multi-Light spectrum image fusion algorithm.
UNI-T
UTi160H
-
Dianyang DP-21 thermal imagery handheld, resolution 220x160
$ 428.00 -
DIANYANG CA-30 CA Series Research Thermal Analyzer Infrared thermal imagery thermometer, wide temperature measurement range -20 ℃~ 550 ℃
$ 5512.00 -
Dianyang DP-22 thermal imagery handheld, resolution 320x240
$ 689.00 -
ST9450A + infrared thermal imagery instrument
$ 413.00 -
DIANYANG CA-20D infrared thermal imagery analyzer, circuit board thermal fault detection
$ 1392.00
Introduction
The UTi160H is a thermal imaging camera that combines surface temperature measurement and real-time thermal imagery, which requires each component to be measured one by one, but not with a thermal imager, where potential problems are clearly displayed on the screen. It has a MIF multispectral image fusion algorithm, which closely combines visible light with infrared thermal imaging camera. The full range of 50Hz frame rate displays ensures smooth and natural images, helping users diagnose hard-to-reach parts in any environment. Full-featured infrared analysis software enables more detailed analysis of images and automatically creates convincing inspection reports so you can make critical decisions faster.
Features
5mm lens size
3.30mrad spatial resolution
160×120 IR resolution
30°×23° field of view
Fixed focus design
It has a visible image display
and a combination of PIP picture-in-picture function and MIF multispectral image fusion algorithm
Mobile APP function
UNI-T UTi160H Infrared thermal imagery instrumentSpecifications
| LIST | VALUE |
|---|---|
| lens | 5mm |
| Spatial resolution | 3.30mrad |
| Focus method | fixed focus |
| resolution | 160×120 |
| Field of view | 30°×23° |
| Thermal Sensitivity | 60mk |
| frame rate | 50Hz |
| Electronic amplification | ×2，×4 |
| Temperature Measurement Range | -20~650℃ |
| Accuracy | ±2℃/±2% |
| temperature coefficient | +/- 0.1/℃ or +/- 0.1%/℃ any larger |
| Visible light resolution | 640×480 |
| emissivity | Emissivity adjustable (0.01-1), default 0.95 |
| reflectance | Reflectance correction (background temperature adjustable) |
| Color matching board | 6 kinds |
| non-uniformity correction | √ |
| Manual luminance contrast ratio | √ |
| Automatic luminance contrast ratio | √ |
| High and low temperature tracking | √ |
| High and low temperature alarm | √ |
| MIP | √ |
| PIP | √ |
| mobile app | √ |
| Computer real-time transmission | √ |
| Display Accuracy | 0.1℃/0.18℉ |
| Protection level | IP43 |
| Power Battery | 3.7V 4200mAh lithium battery UN38.3 certification |
| Battery life | Continuous work for more than or equal to 4 hours |
UNI-T UTi160H Infrared thermal imagery instrument Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
