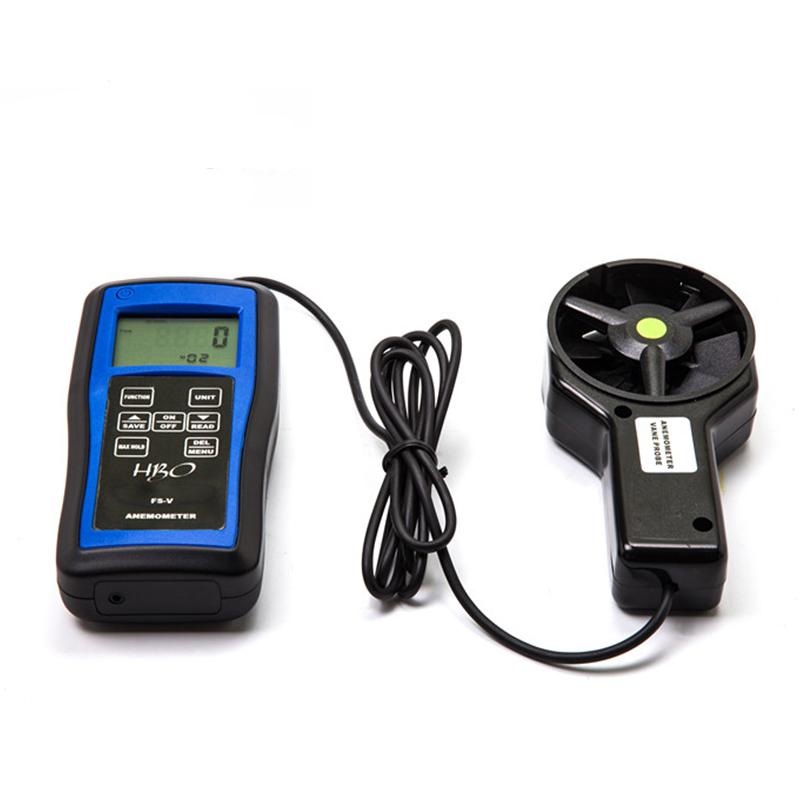

Anemometer FS-V Hypertherm, handheld wind speed anemometer
Measurement of wind speed, including wind temperature, wave height, wind level and air volume, supports a variety of unit conversions. High Sensitivity and Precision, equipped with ultra-low friction bearings, supports USB, RS-232 and Bluetooth data output.
HBO
FS-V
Applications
It is widely used in data collection in boilers, refrigeration, HVAC, ventilation ducts, environmental monitoring, nautical surveys, as well as data collection in weather forecasting, field operations and fire departments.
Overview
* It can measure not only wind speed, but also wind temperature, wave height, wind level, and air volume.
* Multi-unit of measurement conversion.
* High sensitivity and accurate measurement, the sensor adopts ultra-low friction bearings.
* The wind speed measuring handle can be separated from the fuselage for easy measurement.
* With maximum value hold function.
* With storage function, it can store 24 sets of data.
* The automatic shutdown function can be set by yourself (0~9 minutes adjustable).
* USB cable output, RS-232C data cable and software are used to communicate with the PC.
* Optional Bluetooth™ data output options are also available.
Product parameters
Range | resolution | accuracy | ||
wind velocity | m / s ( meters / s ) | 0.4 ~ 45.0 | 0.1 m / s | ± ( 2% n + 0.1 m / s ） |
km / h ( km / h ) | 1.4 ~ 162.0 | 0.1 km / h | ± ( 2% n + 0.1 km / h ) | |
ft / min ( ft / min ) | 80 ~ 8860 | 0.1 ft / min | ± ( 2% n + 1 ft / min ) | |
knots ( section ) | 0.8 ~ 88.0 | 0.1 knots | ± ( 2% n + 0.1 nots ) | |
flow rate | CMM ( m³ / min ) | 0 ~ 9999 | 0.001 ~ 1 | ± ( 2% n + 0.1 m³ / min ) |
CFM ( ft³ / min ) | 0 ~ 9999 | 0.001 ~ 1 | ± ( 2% n + 0.1 ft³ / min ) | |
Beauford's Scale | 0 ~ 12 | 0.1 | ± 0.5 | |
Wave height (m) | 0 ~ 14 | 0.1 | ± 0.1 | |
temperature | 14 ~ 140 °F | 0.1 °F | 0.9 °F | |
-10 ~ 60 °C | 0.1 °C | 0.5 °C | ||
HBO FS-V anemoMeterSpecifications
| LIST | VALUE |
|---|---|
| Memory | 24 groups |
| Sampling rate | About 1 second |
| Sensors | Wind speed/Flow rate: Low friction bearing impeller/Temperature: Thermistor |
| Automatic shutdown | Set arbitrarily between 0 and 9 minutes |
| Operating environment | Temperature: -10~60 ℃ (14~ 140 ° F) Humidity: < 80% RH |
| Power Supply | 4 AA batteries |
| Dimension | 140*72*34mm |
| Impeller size | Diameter 72 mm |
| Weight | 260 g (with Batteries and Sensors) |
HBO FS-V anemoMeter Packing list
Host x1, impeller x1, portable box x1, manual x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
