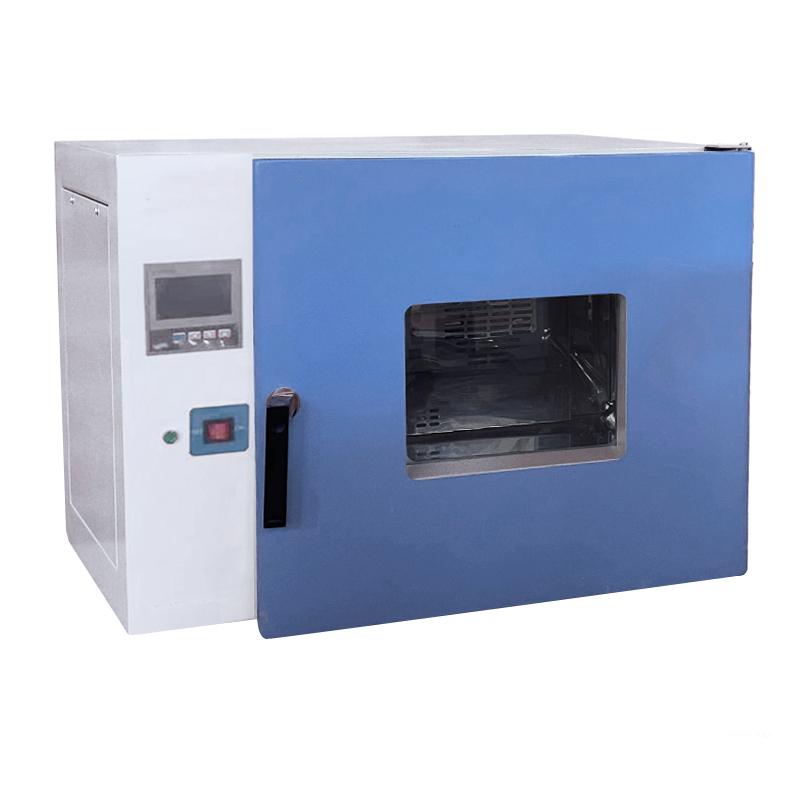

BOZHEN DHG-9030A Desktop Forced Air Drying Oven
Stainless steel liner, 250 ℃ temperature control limit, +/- 0.5 ℃ temperature fluctuation, hot air circulation system to ensure uniform temperature, thermostat with protection, timing function, optional independent temperature limit alarm or RS485 interface.
BoZhen-
YIHENG DHG-9053A desktop Forced Air Drying Oven input power is 1100W
$ 478.00 -
BENTING CBZ-216BC Vacuum Oven 250 ℃/216L
$ 3360.00 -
CHINA DHG-9140AE Vertical Forced Air Drying Oven box dryer 200 ℃/136L
$ 569.00 -
RONGHUA DHG-9101-0 Electric thermostatic blast Drying Oven
$ 345.00 -
SANFA DHG-9123A Desktop Forced Air Drying Oven 108L/stainless steel
$ 572.00
Overview of use
Products produced using professional CNC processing equipment are used for drying, baking, wax melting, and sterilization by industrial and mining enterprises, laboratories, scientific research units, etc.
Features
1. The inside of the box is made of brushed stainless steel argon arc welding, and the outside of the box is made of high-quality steel plates, with beautiful and novel appearance.
2. Adopt a microcomputer temperature controller with temperature control protection and digital display, with timing function, accurate and reliable temperature control (intelligent LCD program temperature controller optional)
3. The hot air circulation system consists of a fan that can operate continuously at high temperatures and a suitable air duct. The temperature inside the workroom is uniform.
4. Independent temperature limit alarm, automatic interruption when the temperature exceeds the limit, ensuring the safety of the experiment without accidents (optional).
5. It has an RS485 interface that can be connected to the Recorder and computer, and can record changes in temperature and humidity parameters (optional).
Series selection
model | DHG-9023A | DHG-9053A | DHG-9123A | DHG-9203A | DHG-9030A |
input power | 500W | 750W | 1500W | 2000W | 750W |
Temperature control range | DHG-9003A series: RT+10~250℃ | ||||
temperature resolution fluctuation | 0.1℃/±0.5℃ | ||||
Working temperature | 5~40℃ | ||||
Inner tank size (mm) | 300*300*270 | 420*350*350 | 550*350*550 | 600*550*600 | 340*325*325 |
Overall dimensions (mm) | 585*480*450 | 705*530*530 | 835*530*730 | 885*730*780 | 625*510*505 |
Partition | 2 pieces | 2 pieces | 2 pieces | 2 pieces | 2 pieces |
studio materials | Stainless steel | ||||
Timing range | 1ï½9999min | ||||
model | DHG-9070A | DHG-9140A | DHG-9240A |
input power | 1050W | 1500W | 2100W |
Temperature control range | DHG-9003A series: RT+10~250℃ | ||
temperature resolution fluctuation | 0.1℃/±0.5℃ | ||
Working temperature | 5~40℃ | ||
Inner tank size (mm) | 450*400*450 | 550*450*550 | 600*500*750 |
Overall dimensions (mm) | 735*585*630 | 835*635*730 | 885*685*930 |
Partition | 2 pieces | 2 pieces | 2 pieces |
studio materials | Stainless steel | ||
Timing range | 1ï½9999min | ||
BoZhen DHG-9030A Desktop Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~250℃ |
| Temperature Fluctuation | ±0.5℃ |
| Temperature Resolution | 0.1℃ |
| Interior size | 340*325*325mm |
| Shelf (std.) | 2pcs |
| Timer | 1~9999min |
| Power | 220V 50HZ |
| Input Power | 750W |
| Environmental temperature | RT+5~40℃ |
| Dimensions | 625*510*505mm |
BoZhen DHG-9030A Desktop Forced Air Drying Oven Packing list
Machine X1, Shelf X2, Operation Manual X1, Warranty Card X1, Certificate of Conformity X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
